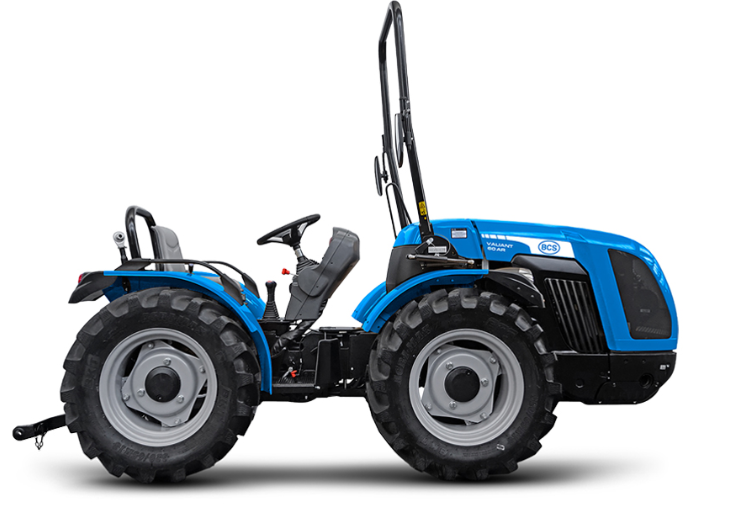

BCS Valiant 60 AR – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Valiant 60 AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

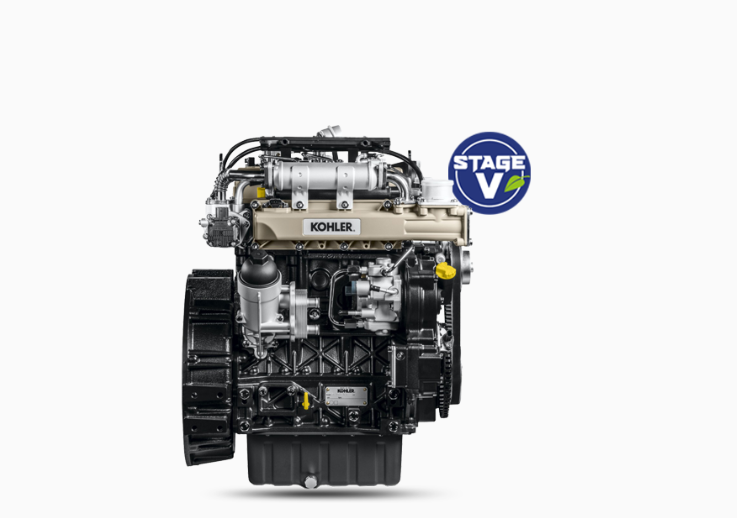

Kohler KDI 1903 TCA, 3 Cylinders, 1861 cm³, Turbo Intercooler, Common Rail Direct Injection, Stage V |
|
Maximum Horsepower |
49 HP (36 kW) @ 2600 RPM |
|
Maximum Torque |
190 Nm @ 1500 RPM |
|
Transmission Type |
Synchronised Gearbox, 12 Forward + 12 Reverse with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
8.25-16 / 210/95R16 (7.50-16), 250/80-18 / 280/70R18, 280/70R18 Garden / 320/65R18, 260/70R20 / 31x15.50-15 XTC, 31x15.50-15 STG / 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps, Flow to Power Steering 17.5 l/min, Flow to Lift and Control Valves 23 l/min, Maximum Pressure 180 bar |
|
Rear 3-Point Hitch |
Category 1, Standard Raising/Lowering with Two External Cylinders, Optional Position and Draft Control, Normal Couplings Cat. 1 or Quick-Couplings Cat. 1, L-Shaped, Arms Adjustable in Length and Hooks Adjustable in Width, Third Point Tie Rod with Manual Adjustment, Ball Joint Lifting Capacity 1200 kg |
|
Steering |
Hydrostatic Steering Acting on Central Joint, Flow Deviator for Steering Unit in Reversible Version |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin Socket |
|
Weight |
1700 kg (Roll-Bar) |
|
Ground Clearance |
200-275 mm |
|
Wheelbase |
1340 mm |
|
Width |
1002-1438 mm |
