Specification

Details

Tractor Model

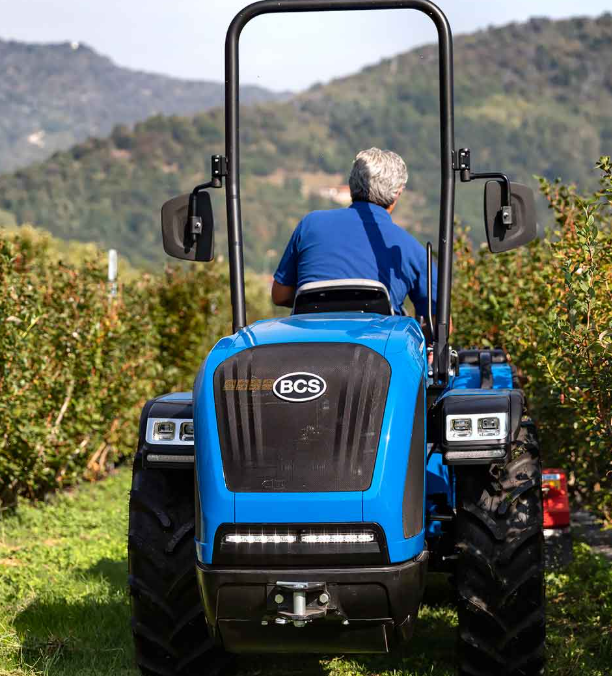

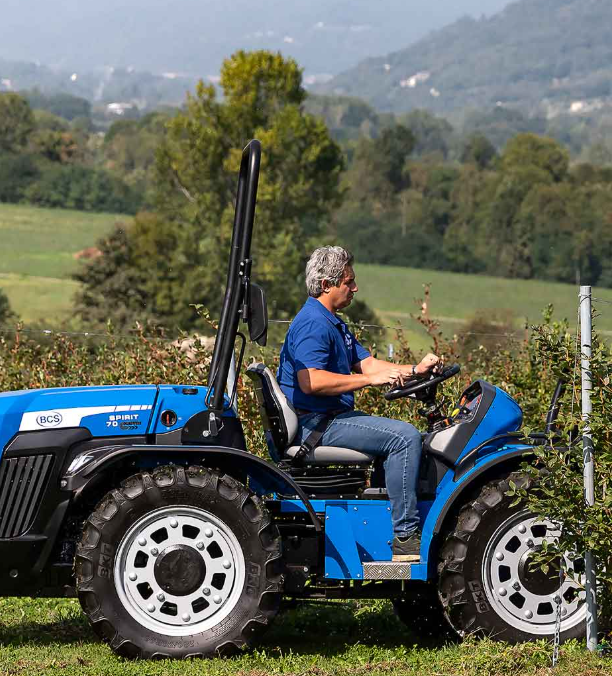

Spirit 70 AR T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations

Specification

Details

Engine

Kohler KDI 2504 TCR, Diesel common rail direct injection, Turbo intercooler, 4 in-line cylinders 16 valves, 2482 cc, Liquid cooling, Stage V

Power

46 kW / 63 hp @2600 rpm

Torque Max

205 Nm@1500 rpm

Transmission

24-speed synchronised gearbox: 12 FWD and 12 REV with synchronised reverser, Min/max travel speed 0.7 / 35 km/h

Transmission Clutch

Multidisc in oil bath with electronically-managed and proportional hydraulic control

Drive Disengagement

Permanent four-wheel drive

Specification

Details

Chassis

Swinging integral chassis (±15°) OS-FRAME with central articulation

Differential Lock

Front and rear with simultaneous locking and electro-hydraulic control

Axles

Front and rear with planetary reduction units

Brakes

Oil bath discs with hydrostatic control, acting on the rear wheels. Independent manoeuvring brakes acting on the rear wheels

Parking Brake

With handle acting on service brakes

Steering

Hydrostatic steering acting on the central joint. Flow deviator for steering unit

Specification

Details

Tyres

260/70 R16*300/70 R20 - 260/70 R16*340/65 R18 - 280/70 R18*360/70 R20 - 280/70 R18*320/65 R18 - 280/70 R18*380/70 R20 - 320/65 R18*380/70 R20 - 340/65 R18*420/65 R20 - 260/70 R16*320/65 R18 - 280/70 R18*340/65 R18

Specification

Details

Power Take-Off

Rear, independent from the gearbox and synchronised with forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed 540/540E

Hydraulic System

Dual circuit with independent pumps and heat exchanger, Hydraulic pump flow rate of the power steering and electro-hydraulic controls 13 l/min, Hydraulic pump flow rate of the lift and control valves 37 l/min (optional circuit with increased flow rate 48 l/min), Maximum hydraulic pressure 180 bar

Rear Control Valves

Mechanically controlled, Standard 1 double-acting with float and free flow oil return (total 3 hydraulic outlets), Optional and in addition to the standard ones With rear up/down lift: up to 7 hydraulic outlets in total - With draft-controlled rear lift: up to 5 hydraulic outlets in total

Joystick

Optional, Proportional electronic control of rear lift and control valves consisting of: 1 continuous flow with adjustable flow rate and free flow oil return, 4 double-acting (replacing the standard ones) and circuit with increased flow rate 48 l/min (total 10 hydraulic outlets). Potentiometer for adjusting hydraulic flow. Remote control for PTO engagement. Storage armrest

Rear Lift

By two external cylinders. Standard: up/down lift - Optional: position and draft-controlled, Three-point implement hitch Standard: normal couplings cat. 1 - Optional: quick-couplings cat. 1 (arms not adjustable in length) or quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Third point tie rod Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm (only for lift with L-shaped arms cat. 1 and 2), Ball joint lifting capacity 1900 kg

Driving Position

Reversible with rotating platform suspended on silent blocks. Suspended pedals mounted on the rotating control tower

Safety

Front homologated roll-bar with gas spring for easy lowering and lifting

Cabin

Optional, VISTA or VISTA PRO low-profile, pressurised and homologated cat. 4. Soundproof, with monocoque body with a 4-upright conical structure suspended on silent block. Ventilation and heating system (VISTA) or air-conditioning, pressurised and category 4 certified (VISTA PRO). FULL LED working lights on four sides, optional on VISTA and standard on VISTA PRO. Optional: active carbon filters for category 4

Dashboard

With TFT digital colour display. Warning lights and horn

Electric System

Battery 80 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, FULL LED street light and indicator system, front LED working lights, rear 7-pin for trailer and 3-pin sockets

Weight

With roll-bar: 1770 kg - With cabin: 1900 kg

Tank Capacity

78 litres (version with roll-bar) - 58 litres (version with cabin)

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years

Minimum External Width

1150 mm
