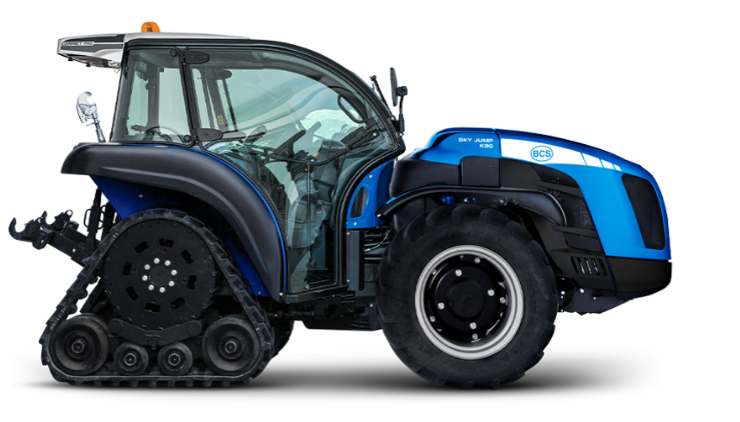

BCS Sky Jump K90 DUALSTEER T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Sky Jump K90 DUALSTEER T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Extreme Situations with Steep Slopes, Muddy and Wet Conditions |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, Diesel direct injection common rail, Turbo, 4 cylinders, 3769 cc, Liquid cooling, Stage V |
|
Power |
54.6 kW / 75 hp @2400 rpm |
|
Torque Max |
305.4 Nm@1500 rpm |
|
Transmission |
32 speeds synchronized gearbox: 16 FWD and 16 REV with synchronized reverser, Min/max travel speed 0.7 / 40 km/h |
|
Transmission Clutch |
Multidisc in oil bath electronically-managed and proportional hydraulic control with PRO-ACT System |
|
Drive Disengagement |
Four-wheel drive. Front-wheel drive disengagement with electro-hydraulic control |
Suspension & Brakes
|
Specification |
Details |
|
Chassis |
Swinging integral chassis (±15°) OS-FRAME with central articulation and steering wheels |
|
Differential Lock |
Front and rear. Differential lock: front and rear simultaneously or only rear with electro-hydraulic control |
|
Axles |
Front with planetary reduction units and rear with bull-gear units |
|
Brakes |
Oil bath discs with hydrostatic control, acting on the four wheels with automatic engagement of the 4-wheel drive. Independent manoeuvring brakes acting on the rear wheels |
|
Parking Brake |
Automatic and independent Brake-Off |
|
Steering |
Double steering system Dualsteer® with 4-cylinders. Hydrostatic steering acting on front wheels and central joint |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
280/70R20 * 280/70R20 PneuTrac |
|

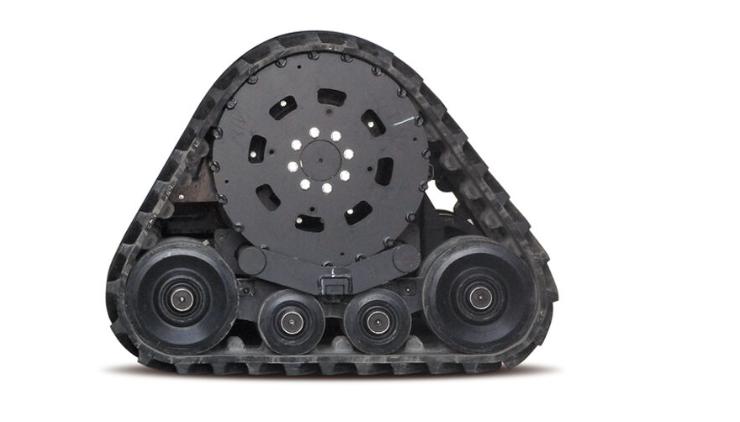

Rear Rubber Tracks |
Width 305 mm, length 1223 mm |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Rear, independent from the gearbox and synchronized with forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed Standard: 540/540E - Optional: 540/1000 |
|
Hydraulic System |
Double circuit with independent pumps and heat exchanger, Hydraulic pump flow rate of the power steering and electro-hydraulic controls 33.1 l/min, Hydraulic pump flow rate of the lift and control valves 27.7 l/min (optional oversized pump with flow rate 49 lt/min), Maximum hydraulic pressure 180 bar |
|
Rear Control Valves |
Mechanical control, standard free flow oil return, Standard 2 double acting (total 5 hydraulic outlets), Optional Up to a maximum of 9 hydraulic outlets |
|
Joystick |
Optional, Proportional electronic control of rear lift (and front lift if present), 1 continuous flow with adjustable flow rate and free flow oil return, 3 double acting (replacing the standard ones). Potentiometer for adjusting the hydraulic flow rate and 49 l/min oversized pump |
|
Rear Lift |
Standard: up/down lift with two external cylinders - Optional: position and draft-controlled, Three-point hitches Standard: normal couplings cat. 1 and 2 - Optional: fixed arms with quick-couplings cat. 1 and 2 or Quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Three-point tie bar Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm, Ball joint lifting capacity 2700 kg |
|
Front Lift |
Optional, Two-cylinder, complete with front bumper and 4 front hydraulic outlets (replicated from the rear), Three-point hitches Rigid with quick couplings cat. 1, Lifting capacity 800 kg |
|
Towing Device |
Standard: front and rear CUNA cat. C adjustable in height - Optional: rear tow hook EC approved or EC with Slider frame or CUNA with Slider frame or EC tow bar with Slider frame |
|
Driving Position |
Monodirectional with platform suspended on silent-blocks. Suspended pedals mounted on control tower |
|
Safety |
Standard: front homologated roll-bar, with gas springs for an easy lowering and lifting |
|
Dashboard |
Instrument panel with analogue gauges and TFT digital colour display. Warning lights and horn |
|
Electric System |
Battery 100 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, rear 7-pin and 3-pin sockets |
|
Weight |
With cab: 3000 kg |
|
Tank Capacity |
78 litres (version with roll-bar) - 58 litres (version with cabin) |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
1350 mm |
