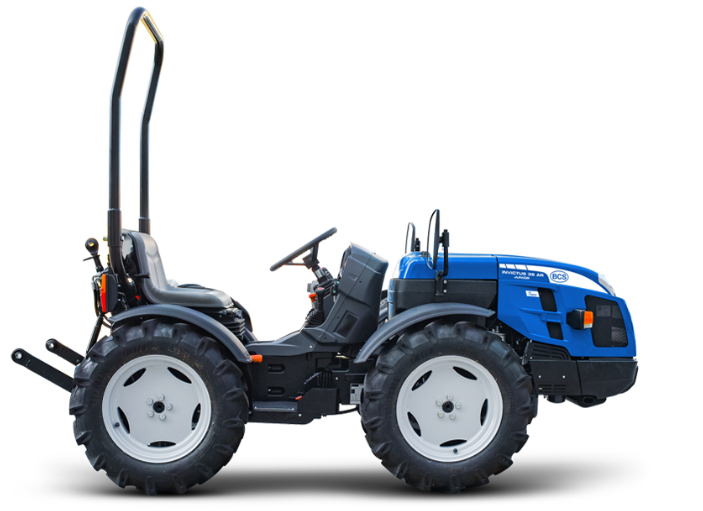

BCS Invictus 35 AR JUNIOR MICRO T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Invictus 35 AR JUNIOR MICRO T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Cultivation in Greenhouses, Vegetable Gardens, Nurseries, Micro-Rows |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, Diesel indirect injection, Natural aspiration, 3 cylinders, 1123 cc, Liquid cooling, Stage V |
|
Power |
18.5 kW / 25 hp @3000 rpm |
|
Torque Max |
71.5 Nm@2200 rpm |
|
Transmission |
Gearbox with easy gear engagement: 8 FWD + 4 REV speeds, Min/max travel speed 1.3 / 25.1 km/h |
|
Transmission Clutch |
Dry single disc |
|
Drive Disengagement |
Permanent four-wheel drive |
Suspension & Brakes
|
Specification |
Details |
|
Chassis |
Swinging integral chassis (±15°) OS-FRAME with central articulation |
|
Differential Lock |
Front and rear with simultaneous locking and mechanical control |
|
Axles |
Front and rear with planetary reduction units |
|
Brakes |
Drum brakes acting on rear wheels |
|
Parking Brake |
Acting on service brakes |
|
Steering |
Hydrostatic steering acting on the central joint |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tractor: 5.00-15 * 6.00-16 in |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
At 540 rpm and synchronised, Engagement control Mechanical |
|
Hydraulic System |
Single-circuit, Hydraulic pump flow rate 19 l/min, Maximum hydraulic pressure 125 bar |
|
Rear Lift |
Up/down lift. Standard: by single external cylinder - Optional: by two external cylinders, 3-point implement hitch Standard: with normal couplings cat. 1N - Optional: quick-couplings cat. 1 and arms adjustable in length, Third point tie rod With manual adjustment, Ball joint lifting capacity With standard one-cylinder rear lift: 500 kg - With optional two-cylinder rear lift: 950 kg |
|
Rear Control Valves |
Mechanically controlled, Standard Without hydraulic outlets, Optional Up to 2 hydraulic outlets in total |
|
Driving Position |
Monodirectional |
|
Safety |
Rear roll-bar |
|
Dashboard |
With analogue instrumentation complete with operating hours indicator, engine rpm and warning lights |
|
Electric System |
60 Ah / 12 V battery - 40 A alternator, Standard equipment Street light and indicator system, auxiliary power outlet on the dashboard (12V), rear 7-pin socket |
|
Weight |
With roll-bar: 975 kg |
|
Tank Capacity |
43 litres |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
770 mm |
