BCS Fighter K90 RS – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Fighter K90 RS (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Canopy Plantations, Orchards, Vineyards, Olive Groves, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

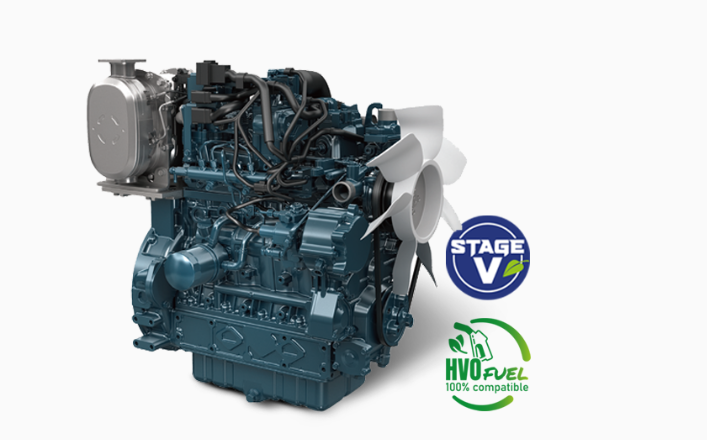

Kubota V3800-CR-T-EW03, 4 Cylinders, 3769 cm³, Turbo, Common Rail Direct Injection, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
Synchronised Gearbox, 16 Forward + 16 Reverse with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels with Automatic 4WD Engagement, Independent Manoeuvring Brakes on Rear Wheels, Parking Brake on Service Brakes with Lever Control |
|
Differential Lock |
Front and Rear Simultaneously or Rear Only, Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16 / 300/70R20, 260/70R16 / 340/65R20, 250/80-16 / 320/85R20, 280/70R18 / 360/70R20, 280/70R18 / 420/65R20, 250/80-18 / 280/85R24, 320/65R18 / 320/70R24, 320/65R18 / 380/70R20, 280/70R18 / 380/70R20, 280/70R18 / 320/70R24, 280/70R18 / 320/85R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard 540/540E RPM, Optional 540/1000 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow to Power Steering 33.1 l/min, Flow to Lift and Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Pressure 180 bar |
|
Rear 3-Point Hitch |
Category 1 and 2, Standard Raising/Lowering with Two External Cylinders, Optional Position and Draft Control, Couplings Cat. 1 and 2 or Fixed Arms with Quick-Couplings Cat. 1 and 2 or L-Shaped Arms with Quick-Couplings Cat. 1 and 2, Ball Joint Lifting Capacity 2700 kg |
|
Steering |
Hydrostatic Steering Acting on Front Wheels, Standard Fixed Steering Wheel, Optional Height Adjustable |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Standard Equipment Vehicle Control Unit, Street Light and Indicator System, Front LED Working Lights, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2400 kg (Roll-Bar), 2520 kg (Cabin) |
|
Cab Options |
Optional Ultra-Low Profile Cabin (170 cm Height), Versions: Compact Clima with Air Conditioning, Ventilation and Heating or Compact Pro Pressurised Cat. 4 Approved with Digital Pressurization Control, Active Carbon Filters, USB Car Radio with Loudspeakers, LED Front Work Lights |
|
Ground Clearance |
200-235 mm |
|
Fuel Tank Capacity |
40 l |
|
Wheelbase |
1607 mm |
|
Width |
1338-1908 mm |
