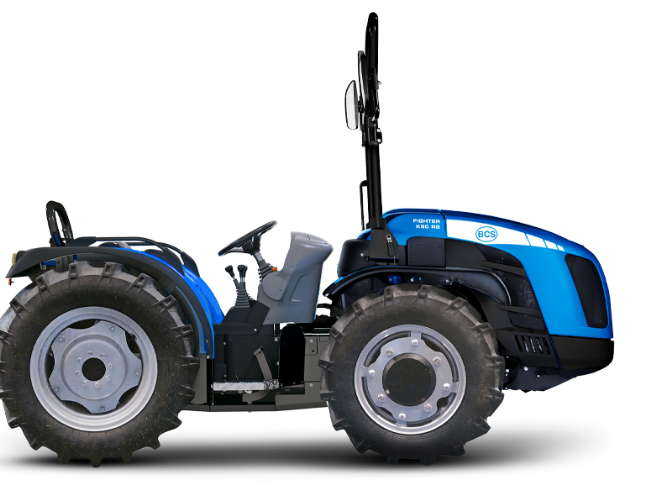

BCS Fighter 85 RS – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Fighter 85 RS (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Canopy Plantations, Orchards, Vineyards, Olive Groves, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 Cylinders, 16 Valves, 2482 cm³, Turbo-Intercooler, Common Rail Direct Injection 2000 bar, Stage V |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
Synchronised Gearbox, 16 Forward + 16 Reverse with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels with Automatic 4WD Engagement, Independent Manoeuvring Brakes on Rear Wheels, Parking Brake on Service Brakes |
|
Differential Lock |
Front and Rear Simultaneously or Rear Only, Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16*300/70R20, 23x8.50-12*280/70R18, 7.00-12*300/70R20, 25x8.50-14 Garden*380/70D-15 Garden (36x13.50-15) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard 540/540E RPM, Optional 540/1000 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow to Hydroguide and Controls 33.5 l/min, Flow to Lift and Valves 29.5 l/min (Optional Oversized Pump 51 l/min), Maximum Pressure 180 bar, Mechanically Controlled Rear Control Valves, Standard 1 Double-Acting with Float (Total 2 Outlets), Optional 2 Double-Acting (Total 7) or 1 Double-Acting and 1 Double-Acting with Lockable Position (Total 7) |
|

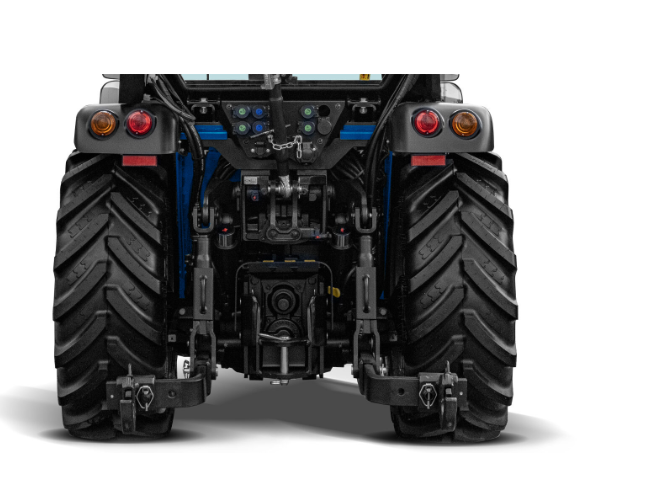

Rear 3-Point Hitch |
Category 1 and 2, Standard Raising/Lowering, Optional Position and Draft Control, Two External Rams, Normal Couplings Cat. 1 and 2 or Fixed Arms with Quick-Couplings Cat. 1 and 2 or L-Shaped Arms with Quick-Couplings Cat. 1 and 2, Ball Joint Lifting Capacity 2700 kg |
|
Steering |
Hydrostatic Steering Acting on Front Wheels, Standard Fixed Steering Wheel, Optional Height Adjustable |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
1100 kg (Roll-Bar) |
|
Cab Options |
Optional Ultra-Low Profile Cabin (170 cm Height), Versions: Compact Clima with Heating and Air-Conditioning or Compact Pro Pressurised Cat. 4 Approved |
|
Ground Clearance |
206-246 mm |
|
Fuel Tank Capacity |
78 l |
|
Wheelbase |
1553 mm |
|
Width |
1338 mm (Min) |
