Specification

Details

Tractor Model

Eagle K90 RS T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations

Specification

Details

Engine

Kubota V3800-CR-T-EW03, Diesel direct injection common rail, Turbo, 4 cylinders, 3769 cc, Liquid cooling, Stage V

Power

54.6 kW / 75 hp @2400 rpm

Torque Max

305.4 Nm@1500 rpm

Transmission

32 speeds synchronized gearbox: 16 FWD and 16 REV with synchronized reverser, Min/max travel speed 0.7 / 40 km/h

Transmission Clutch

Multidisc in oil bath electronically-managed and proportional hydraulic control with PRO-ACT System

Drive Disengagement

Four-wheel drive. Front-wheel drive disengagement with electro-hydraulic control

Specification

Details

Chassis

Swinging integral chassis (±15°) OS-FRAME with steering wheels

Differential Lock

Front and rear. Differential lock: front and rear simultaneously or only rear with electro-hydraulic control

Axles

Front with planetary reduction units and rear with bull-gear units

Brakes

Oil bath discs with hydrostatic control, acting on the four wheels with automatic engagement of the 4-wheel drive. Independent manoeuvring brakes acting on the rear wheels

Parking Brake

Standard: acting on the rear transmission, with lever control - Optional: automatic and independent Brake-Off acting as emergency brake with proportional action (standard with cab)

Steering

Hydrostatic steering acting on the front wheels

Specification

Details

Tyres

260/70R16*300/70R20 - 260/70R16*340/65R20 - 280/70-18*360/70R20 - 280/70-18*320/70R24 - 320/65R18*380/70R20 - 340/65R18*420/65R24 - 320/65R18*320/70R24 - 280/70R18*380/70R20

Specification

Details

Power Take-Off

Rear, independent from the gearbox and synchronized with forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed Standard: 540/540E - Optional: 540/1000

Hydraulic System

Double circuit with independent pumps and heat exchanger, Hydraulic pump flow rate of the power steering and electro-hydraulic controls 33.1 l/min, Hydraulic pump flow rate of the lift and control valves 27.7 l/min (optional oversized pump with flow rate 49 lt/min), Maximum hydraulic pressure 180 bar

Rear Control Valves

Mechanical control, standard free flow oil return, Standard 2 double acting (total 5 hydraulic outlets), Optional Up to a maximum of 9 hydraulic outlets

Joystick

Optional, Proportional electronic control of rear lift (and front lift if present), 1 continuous flow with adjustable flow rate and free flow oil return, 3 double acting (replacing the standard ones). Potentiometer for adjusting the hydraulic flow rate and 49 l/min oversized pump

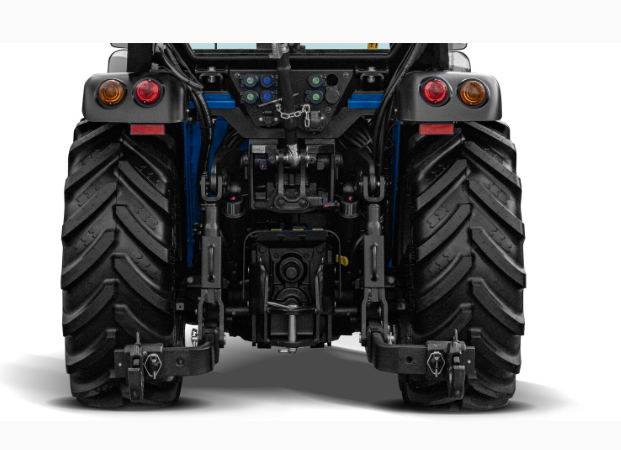

Rear Lift

Standard: up/down lift with two external cylinders - Optional: position and draft-controlled, Three-point hitches Standard: normal couplings cat. 1 and 2 - Optional: fixed arms with quick-couplings cat. 1 and 2 or Quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Three-point tie bar Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm, Ball joint lifting capacity 2700 kg

Front Lift

Optional, Two-cylinder, complete with front bumper and 4 front hydraulic outlets (replicated from the rear), Three-point hitches Rigid with quick couplings cat. 1, Lifting capacity 800 kg

Towing Device

Standard: front and rear CUNA cat. C adjustable in height - Optional: rear tow hook EC approved or EC with Slider frame or CUNA with Slider frame or EC tow bar with Slider frame

Driving Position

Monodirectional with platform suspended on silent-blocks. Suspended pedals mounted on control tower

Safety

Standard: front homologated roll-bar, with gas springs for an easy lowering and lifting

Cabin

Optional, "Compact Pro" low-profile, pressurised and homologated cat. 4 (activated carbon filters required). Soundproof, with monocoque body mounted on silent-blocks, beacon lamp and fabric seat. Safety cell integrated into the structure, automotive-type instrument dashboard and air vents. Air conditioning and Brake-Off parking brake as standard. Optional: activated carbon filters for cat. 4

Dashboard

Instrument panel with analogue gauges and TFT digital colour display. Warning lights and horn

Electric System

Battery 100 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, rear 7-pin and 3-pin sockets

Weight

With roll-bar: 2520 kg - With cab: 2700 kg

Tank Capacity

78 litres (version with roll-bar) - 58 litres (version with cabin)

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years

Minimum External Width

1340 mm
