Specification

Details

Tractor Model

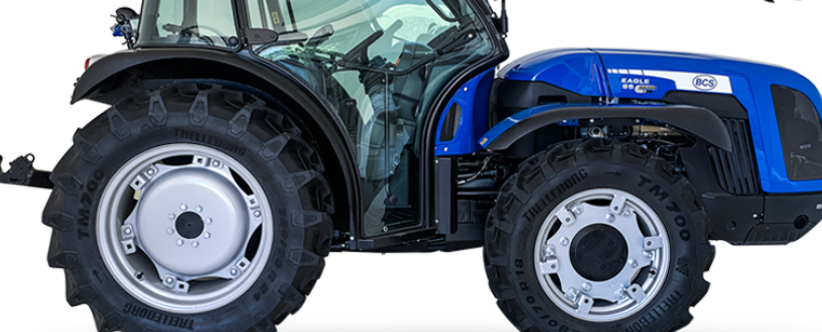

Eagle 85 RS T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations

Specification

Details

Engine

Kohler KDI 2504 TCR, 4 Cylinders, 2482 cc, Stage V, Turbo/Intercooler, Common Rail Direct Injection - 2000 bar

Power

55.4 kW / 75.3 hp @ 2300 rpm

Torque Max

300 Nm @ 1500 rpm

Transmission

32-speed synchronised gearbox: 16 FWD and 16 REV with synchronised reverser, Min/max travel speed 0.7 / 40 km/h

Transmission Clutch

Multidisc in oil bath with electronically-managed and proportional hydraulic control

Drive Disengagement

Front-wheel drive disengagement with electro-hydraulic control

Specification

Details

Chassis

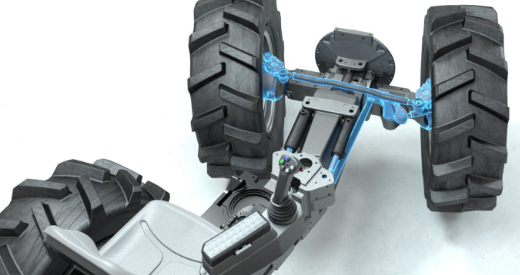

Swinging integral chassis (±15°) OS-FRAME with steering wheels

Differential Lock

Front and rear. Differential lock: front and rear simultaneously or rear only with electro-hydraulic control

Axles

Front with planetary reduction units and rear with bull-gear units

Brakes

Hydrostatic control, acting on the four wheels with automatic engagement of the 4-wheel drive. Independent manoeuvring brakes acting on the rear wheels

Parking Brake

Standard: acting on the rear transmission, with lever control - Optional: automatic and independent Brake-Off acting as emergency brake with proportional action (standard with cab)

Steering

Hydrostatic steering acting on the front wheels

Specification

Details

Tyres

260/70R16*300/70R20 - 260/70R16*340/65R20 - 280/70-18*360/70R20 - 280/70-18*320/70R24 - 320/65R18*380/70R20 - 320/65R18*320/70R24 - 340/65R18*420/65R24 - 280/70R18*380/70R20

Specification

Details

Power Take-Off

Rear, independent from the gearbox and synchronised with the forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed Standard: 540/540E - Optional: 540/1000

Hydraulic System

Dual circuit with independent pumps and heat exchanger, Flow rate to the hydroguide and the electro-hydraulic controls 33.5 l/min, Flow rate to the lift and the control valves 29.5 l/min (optional oversized pump with 51 l/min flow rate), Maximum hydraulic pressure 180 bar

Rear Control Valves

Mechanically controlled, Standard 2 double-acting + free flow oil return (total 5 hydraulic outlets), Optional 1 single-acting and 1 double-acting (total 8 hydraulic outlets) or 1 double-acting and 1 double-acting with float (total 9 hydraulic outlets)

Joystick

Optional, Proportional electronic control of lifts and control valves consisting of: 1 continuous flow with adjustable flow rate and free flow oil return, 3 double-acting (replacing the standard ones) and oversized pump (total 8 hydraulic outlets). Potentiometer for adjusting hydraulic flow. Remote control for PTO engagement

Rear Lift

By two external rams. Standard: raising/lowering - Optional: position and draft control, 3-point implement hitch Standard: Normal couplings cat. 1 and 2. Optional: fixed arms with quick-couplings cat. 1 and 2 or L-shaped arms with quick-couplings cat. 1 and 2, Third point tie rod Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm, Ball joint lifting capacity 2700 kg

Front Lift

Optional, Two rams with front protection and 2 double-acting control valves (total 4 front hydraulic outlets), Third point arms Rigid with quick-couplings cat. 1 and 2, Lifting capacity 800 kg

Towing Device

Rear CUNA cat. C adjustable in height, Optional Rear tow hook: EC approved or EC with Slider frame or CUNA with Slider frame or EC tow bar with Slider frame

Platform

Monodirectional with platform suspended on silent-blocks. Suspended pedals mounted on control tower

Driving Comfort

Steering wheel Tilt adjustable, Seat With safety belt and man-on-board sensor. Standard: comfort seat with adjustable spring tension according to the operator's weight - Optional: ‘Kab’ lowered seat or 'Grammer' pneumatic seat

Safety

Standard: front homologated roll-bar with gas springs for easy lowering and lifting

Cabin

Optional, COMPACT PRO low-profile, pressurised and homologated cat. 4. Soundproof, with monocoque body mounted on silent-blocks, beacon lamp and fabric seat. Safety cell integrated into the structure, automotive-type instrument dashboard and air vents. Air conditioning and Brake-Off parking brake as standard. Optional: active carbon filters

Dashboard

With TFT colour display showing: hours of operation, engine rpm, forwarding speed, PTO rpm, particulate filter clogging level, instantaneous fuel consumption, battery voltage and current time. Analogue instrumentation complete with engine rpm, engine coolant temperature and fuel level indicator. Warning lights and acoustic alarm

Electric System

Battery 80 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, street light and indicator system, front LED working lights, single-pole dashboard socket, rear 7-pin and 3-pin sockets

Weight

With roll-bar: 2460 kg, With cab: 2640 kg

Tank Capacity

78 litres (version with roll-bar) - 58 litres (version with cabin)

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years

Minimum External Width

1338 mm
