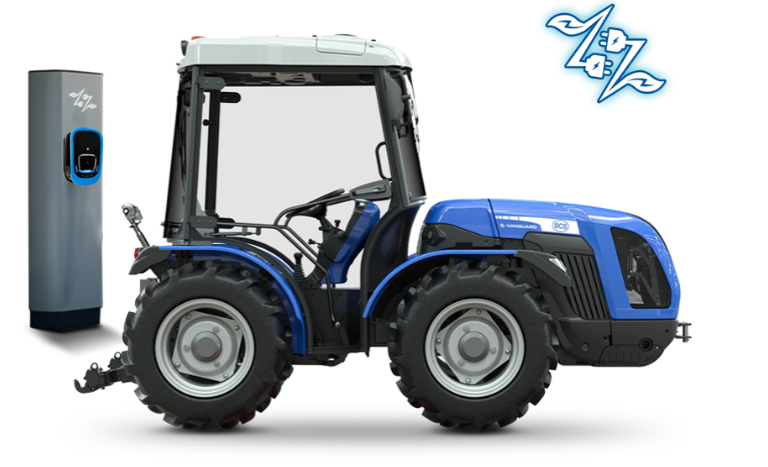

BCS e-Vanguard AR – 4WD Specialized Electric Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
e-Vanguard AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Electric |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |

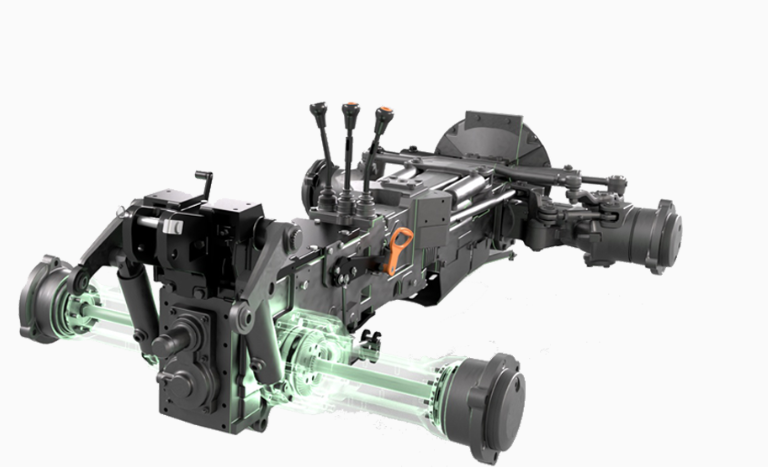

Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Electric, Total Installed Electrical Power 41 kW, Lithium Batteries, 48 V, 36 kWh Capacity |
|
Autonomy |
3 to 6 hours depending on application and working conditions |
|
Charging Time |
Approx. 3 hours (20 to 80%), Approx. 5 hours (0 to 100%) with 6 kWh input |
|
Transmission Type |
24-Speed Synchronised Gearbox: 12 FWD and 12 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on the Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
Tractor: 8.25-16 / 210/95R16 / 250/80-18 / 280/70R18 / 320/65R18 / 260/70R20 | Garden: 280/70R18 | Terra Tyre: 31x15.50-15 XTC / 31x15.50-15 STG / 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the Gearbox and Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540/540E RPM |
|
Hydraulic System |
Dual Circuit with Dedicated Electric Engine, Hydraulic Flow Rate of the Power Steering 15 l/min, Hydraulic Flow Rate of the Lift and Control Valves 26 l/min, Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
By Two External Cylinders, Standard: Up/Down Lift, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 1510 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift and Control Valves Consisting of: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double-Acting (Total 8 Hydraulic Outlets) |
|
Steering |
Hydrostatic Steering Acting on the Central Joint, Flow Deviator for Steering Unit in the Reversible Version |
|
Weight |
1660 kg (Roll-Bar), 1740 kg (Cabin) |
|
Ground Clearance |
200-275 mm |
|
Wheelbase |
1390 mm |
|
Width |
1002-1438 mm |
