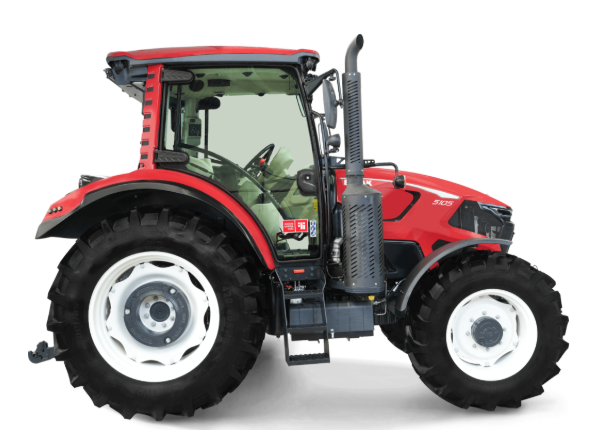

Başak Tractor 5105 – 4WD Field Tractor for Heavy Duty Agricultural Work
Specifications
|
Specification |
Details |
|
Tractor Model |
5105 (4WD) |
|
Vehicle Category |
Field Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz TCD 2.9, 4 Cylinders, 2924 cm³, Turbo-Intercooler, Stage V |
|
Maximum Horsepower |
108 HP (80 kW) @ 2000 RPM |
|
Maximum Torque |
400 Nm @ 1600 RPM |
|
Transmission Type |
Mechanical Shuttle, 24 Forward + 24 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
4WD Chassis |
|
Braking System |
Multi-Disc Oil-Immersed Brakes, Hydraulic Control for Service Brake, Mechanical Control for Parking Brake, Standard Four-Wheel Braking |
|
Differential Lock |
Front: Limited Slip, Rear: Electro-Hydraulic |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard Front/Rear) |
340/85R24 / 480/85R30 |
|
Tyre Size (Optional Front/Rear) |
340/85R24 / 420/85R34, 320/85R28 / 380/85R38 |
Components & Features
|
Specification |
Details |
|
PTO Type |
4-Speed PTO, Electro-Hydraulic Control, 430/540/540E/1000 RPM |
|
Front PTO |
Optional, 1000 RPM, 6-Spline Dry Disc Clutch |
|
Hydraulic System |
Electronic Control, 50 l/min Pump Flow, 200 bar Pump Pressure, 8/4 or 16/3 Hydraulic Valve Outputs, 3400 kg Lifting Capacity, Optional Electronic/Mechanical Fender-Mounted Control, Optional Auto-Lift |
|
Front Hitch |
Optional, 1300 kg Capacity, 2 Hydraulic Outputs |
|
Steering |
Electro-Hydraulic |
|
Weight |
4455-4750 kg (9822-10472 lb, Without Additional Weights) |
|
Ground Clearance |
362 mm (14.3 in) |
|
Fuel Tank Capacity |
120 l (31.7 gal) + 20 l (5.3 gal) AdBlue |
|
Wheelbase |
2400 mm (94.5 in) |
|
Width |
1500-1820 mm (59.1-71.7 in) |
|
Accessories |
Battery Isolator, Hydraulic Mid-Mount Arm, Air Compressor, Ledbar, Optional Rear-View Camera and Display |
