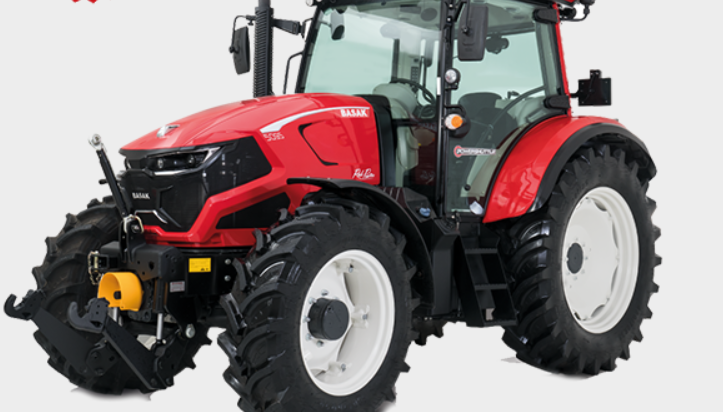

Başak Tractor 5095 T4 – 4WD Field Tractor for Efficient Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
5095 T4 (4WD) |
|
Vehicle Category |
Field Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field and Transport Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz TCD 2.9, 4 Cylinders, 2925 cc, Stage V, Turbo-Intercooler, Common Rail, Pre-Cleaner Dry Air Filter |
|
Power |
75 kW / 102 hp @ 2000 rpm |
|
Torque Max |
400 Nm @ 1600 rpm |
|
Transmission |
24 forward + 24 reverse gears, Mechanic Shuttle, Electro-hydraulic Four-Wheel Drive Control |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Front: Limited Slip (Automatic), Rear: Electro-hydraulic |
|
Brakes |
Oil-immersed Multi-disc Brake, Hydraulic Controlled |
|
Parking Brake |
Mechanic Controlled |
|
Trailer Braking |
Standard Trailer Air Braking Valve |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Option 1: Front 340/85R24, Rear 480/85R30; Option 2: Front 340/85R24, Rear 420/85R34; Option 3: Front 340/85R24, Rear 340/85R38; Option 4: Front 320/85R28, Rear 380/85R38 |
|
Track Width Tyres |
Front: 1620 mm, Rear: 1600 mm |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
4 Speed PTO, Electro-hydraulic Control, 430/540/540E/1000 rpm, Synchronized to Wheel Speed |
|
Hydraulic System |
Electronic/Mechanic Control, 8/4 (16/3 Optional) Hydraulic Valve Outputs, Maximum Pump Flow 50 l/min at 200 bar, Maximum Lifting Capacity 3400 kg, Mudguard Hydraulic Control (Optional Electronic/Mechanic), Auto-Lift (Electronic/Mechanic) |
|
Towing Device |
Height adjustable rear tow hook, Front tow hook, Trailer Air Braking Valve |
|
Platform |
Cabin with Air Conditioner, Radio, Passenger Seat, Digital Dashboard, Ergonomic Controls, LED Bar, Compressor, Hydraulic Mid-arm, Battery Disconnect Switch (Standard), Rear View Camera and Screen (Optional) |
|
Weight |
4455–4750 kg (without additional weights) |
|
Tank Capacity |
Fuel: 120 litres, AdBlue: 20 litres |
|
Additional Weights |
Front: 8 x 30 kg + 50 kg, Rear: 4 x 45 kg |
|
Front Lift |
Optional, Capacity 1300 kg, 2 Hydraulic Outputs |
|
Front PTO |
Optional, 6 Splines, Multi-disc Dry Clutch, 1000 rpm |
