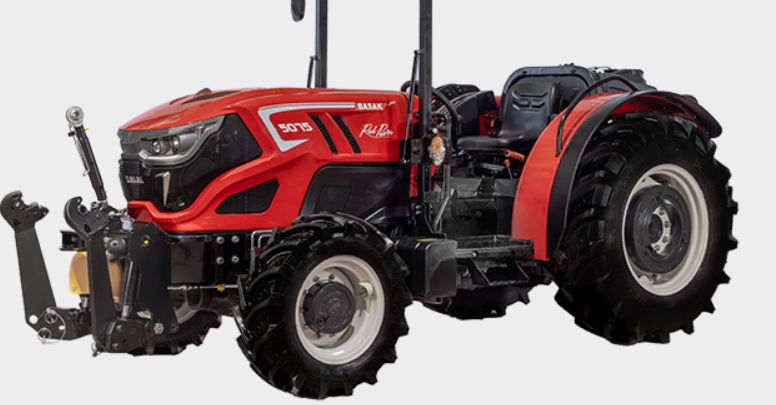

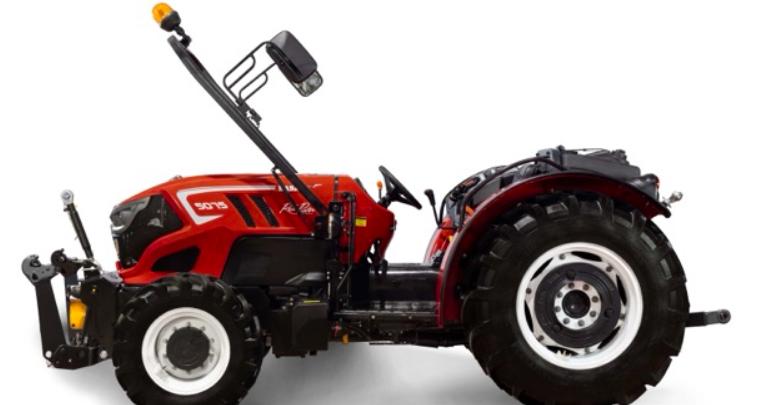

Başak Tractor 5075 BB T4 – 4WD Garden Tractor for Precision Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
5075 BB T4 (4WD) |
|
Vehicle Category |
Garden Tractor |
|
Fuel Type |
Diesel |
|
Application |
Garden, Vineyard, Small-Scale Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz TCD 2.2, 3 Cylinders, 2194 cc, EU Stage V, Turbo-Intercooler, Common Rail, 2-Stage Pre-Cleaner Air Filter |
|
Power |
55.4 kW / 75 hp @ 2600 rpm |
|
Torque Max |
280 Nm @ 1600 rpm |
|
Transmission |
Mechanic Synchronized, 16 forward + 8 reverse gears, Electro-hydraulic Four-Wheel Drive Control |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Front: Limited Slip, Rear: Mechanic Controlled |
|
Brakes |
Oil-immersed Multi-disc Brake, Hydraulic Controlled |
|
Parking Brake |
Mechanic Controlled |
|
Four-Wheel Braking |
Standard |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Option 1: Front 260/70R16, Rear 340/85R24 or 380/70R24; Option 2: Front 280/70R18, Rear 340/85R28 or 380/70R28 |
|
Track Width Tyres |
Front: 1355 mm, Rear: 1280 mm |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Independent 4 Speed, Electro-hydraulic Control, 540/540E rpm, Synchronized to Wheel Speed |
|
Hydraulic System |
Mechanic Controlled, 4/2 Hydraulic Valve Outputs (6/3 Optional), Maximum Pump Flow 50 l/min at 200 bar, Maximum Lifting Capacity 2400 kg, Mechanic Auto-Lift |
|
Towing Device |
Height adjustable rear tow hook, Front tow hook |
|
Platform |
Open platform with roll bar, Battery Disconnect Switch (Standard), Hydraulic Mid-arm (Optional) |
|
Weight |
2900 kg (without additional weights) |
|
Tank Capacity |
56 litres |
|
Additional Weights |
Front: 6 x 35 kg, Rear: 2 x 50 kg |
|
Front Lift |
Optional, Capacity 1300 kg, 2/1 Hydraulic Outputs |
|
Front PTO |
Optional, 6 Splines, Multi-disc Dry Clutch, 1000 rpm CCW (@1970 engine rpm) |
