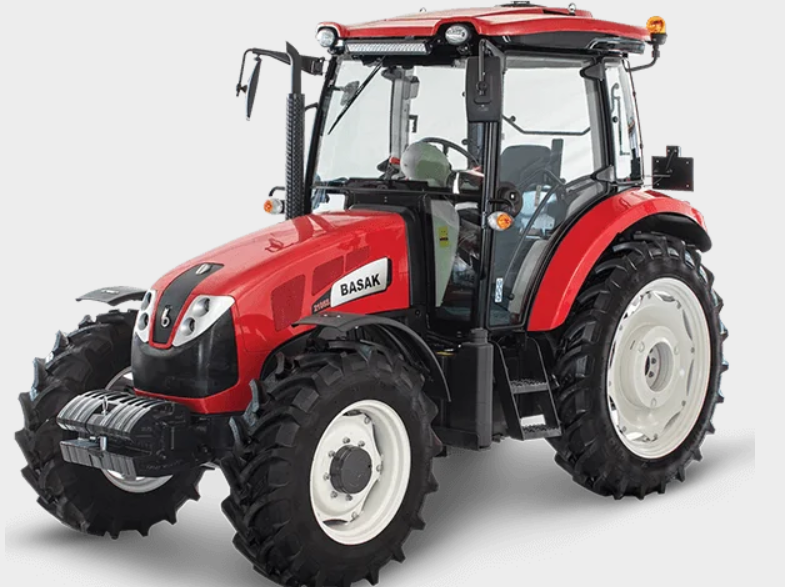

Başak Tractor 2105 S T4 – 4WD Field Tractor for Efficient Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
2105 S T4 (4WD) |
|
Vehicle Category |
Field Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field and Transport Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
PERKINS 1104D-44TA, 4 Cylinders, 4400 cc, Stage 3A, Turbo/Intercooler, Water Cooled |
|
Power |
75 kW / 102 hp @ 2200 rpm |
|
Torque Max |
405 Nm @ 1400 rpm |
|
Transmission |
Mechanic Synchronized, Standard Synchronized Shuttle, Power Hi-Lo, 24 forward + 24 reverse gears, Creeper Gear, Minimum-Maximum Gear Speed 0.48–40 km/h |
|
Transmission Clutch |
Double Disc Dry Type |
|
Drive Disengagement |
Electro-hydraulic |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Front: Limited Slip, Rear: Electro-hydraulic |
|
Brakes |
Oil-immersed disc brakes, Hydraulic Controlled |
|
Parking Brake |
Mechanic Controlled |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Option 1: Front 340/85R24, Rear 420/85R34; Option 2: Front 340/85R24, Rear 340/85R38; Option 3: Front 320/85R28, Rear 380/85R38 |
|
Track Width |
Front: 1510 mm, Rear: 1500–1700 mm |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Independent 4 Speed, Electro-hydraulic PTO Clutch, Synchronized to Wheel Speed, 430/540/540E/1000 rpm (2073/1881/1530/2048 engine rpm) |
|
Hydraulic System |
Mechanic Controlled, 6/3 Hydraulic Valve Outputs, Lifting Capacity 3400 kg |
|
Towing Device |
Height adjustable rear tow hook, Front tow hook |
|
Platform |
Cabin with LED bar, Compressor, Hydraulic Mid-arm (Standard), Rear View Camera and Screen (Optional) |
|
Weight |
3900 kg (without additional weights) |
|
Tank Capacity |
120 litres |
|
Additional Weights |
Front: 8 x 30 kg + 50 kg, Rear: 4 x 45 kg |
