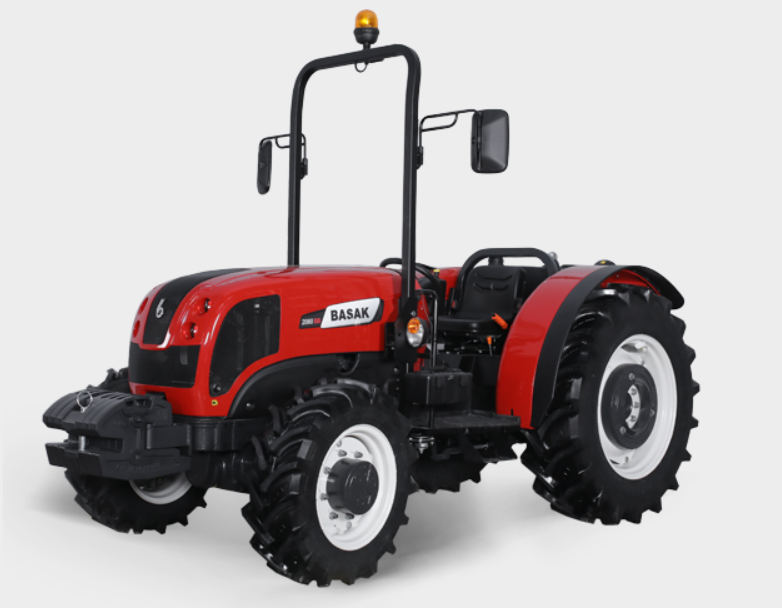

Başak Tractor 2060 BB T4 – 4WD Garden Tractor for Precision Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
2060 BB T4 (4WD) |
|
Vehicle Category |
Garden Tractor |
|
Fuel Type |
Diesel |
|
Application |
Garden, Vineyard, Small-Scale Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SONALIKA ITL 3100 FLT, 3 Cylinders, 2700 cc, Euro Stage 3A, Turbo/Intercooler |
|
Power |
43 kW / 58 hp @ 2100 rpm |
|
Torque Max |
230 Nm @ 1300 rpm |
|
Transmission |
Mechanic Synchronized, 16 forward + 8 reverse gears, Electro-hydraulic Four-Wheel Drive Control |
|
Transmission Clutch |
Double Disc Dry Type |
|
Drive Disengagement |
Electro-hydraulic |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Front: Limited Slip, Rear: Mechanic Controlled |
|
Brakes |
Oil-immersed Disc Brake, Mechanic Controlled |
|
Parking Brake |
Mechanic Controlled |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Option 1: Front 260/70R16, Rear 380/70R24; Option 2: Front 280/70R18, Rear 380/70R28 |
|
Track Width Tyres |
Front: 1340–1795 mm, Rear: 1219–1751 mm |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Independent Double Speed, Electro-hydraulic PTO Clutch, 540 rpm (1950 engine rpm), 540E rpm (1508 engine rpm), Synchronized to Wheel Speed |
|
Hydraulic System |
Mechanic Controlled, Position, Draft, Sensitivity Functions, 4/2 Hydraulic Valve Outputs, Maximum Lifting Capacity 2600 kg |
|
Towing Device |
Height adjustable rear tow hook, Front tow hook |
|
Platform |
Open platform with roll bar |
|
Weight |
2800 kg (without additional weights) |
|
Tank Capacity |
50 litres |
|
Additional Weights |
Front: 6 x 30 kg, Rear: 2 x 50 kg |
