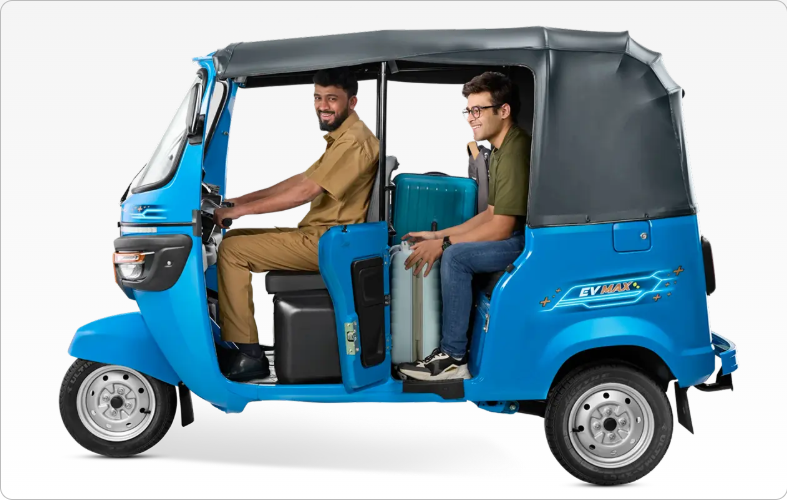

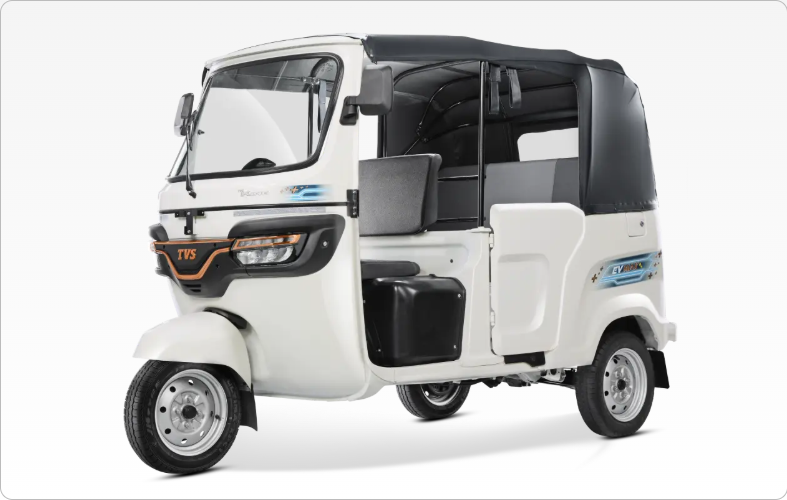

TVS King EV Max 2025 – Electric Passenger Auto Rickshaw
Specification
|
Specification |
Details |
|
Motor |
11 kW BLDC electric motor |
|
Power |
15 PS (equivalent) |
|
Torque |
40 Nm |
|
Transmission |
Direct drive |
|
Range |
100 km (claimed, urban conditions) |
|
Battery Capacity |
9.2 kWh, lithium-ion |
|
Charging Time |
4–5 hours (standard charger) |
|
Kerb Weight |
380 kg |
|
Dimensions (LxWxH) |
2780x1320x1800 mm |
|
Wheelbase |
2000 mm |
|
Ground Clearance |
170 mm |
|
Seating Capacity |
Driver + 3 passengers |
|
Suspension (Front/Rear) |
Swingarm with hydraulic damper/Swingarm with hydraulic damper |
|
Brakes (Front/Rear) |
130 mm drum/130 mm drum |
|
Tyres (Front/Rear) |
4.00-8, 6 PR/4.00-8, 6 PR, tube-type |
|
Variants |
Single |
|
Price (Ex-Showroom, Delhi) |
₹2,95,000(Year-2025) |
Motor & Transmission
|
Specification |
Details |
|
Motor Type |
Brushless DC (BLDC) |
|
Power Output |
11 kW (15 PS equivalent) |
|
Torque |
40 Nm |
|
Battery |
9.2 kWh, lithium-ion |
|
Transmission |
Direct drive |
|
Top Speed |
50 km/h |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
2780 mm |
|
Overall Width |
1320 mm |
|
Overall Height |
1800 mm |
|
Wheelbase |
2000 mm |
|
Ground Clearance |
170 mm |
|
Kerb Weight |
380 kg |
|
GVW |
450 kg |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Reinforced tubular chassis |
|
Front Suspension |
Swingarm with hydraulic damper & coil spring |
|
Rear Suspension |
Swingarm with hydraulic damper & coil spring |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
130 mm drum |
|
Rear Brake |
130 mm drum |
|
Braking System |
Hydraulic drum brakes |
|
Front Tyre |
4.00-8, 6 PR, tube-type |
|
Rear Tyre |
4.00-8, 6 PR, tube-type |
|
Wheels |
8-inch steel rims |
Electricals & Features
|
Specification |
Details |
|
Battery |
9.2 kWh, lithium-ion |
|
Starting Method |
Electric start |
|
Instrumentation |

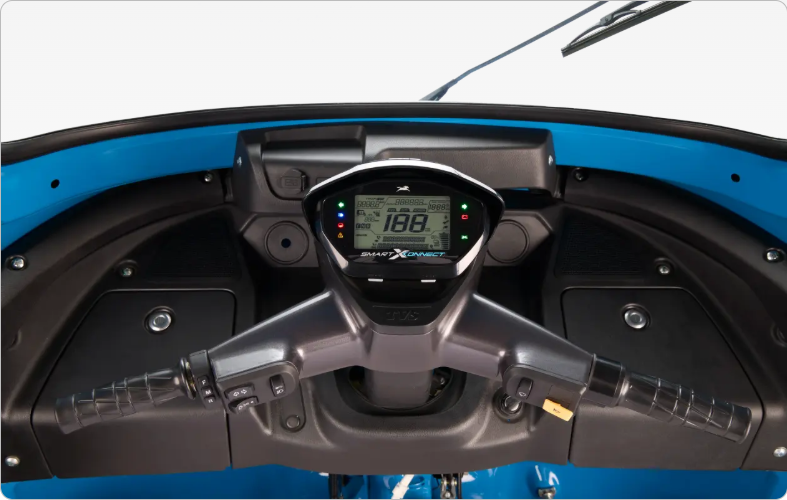

Digital cluster with range indicator |
|
Lighting |

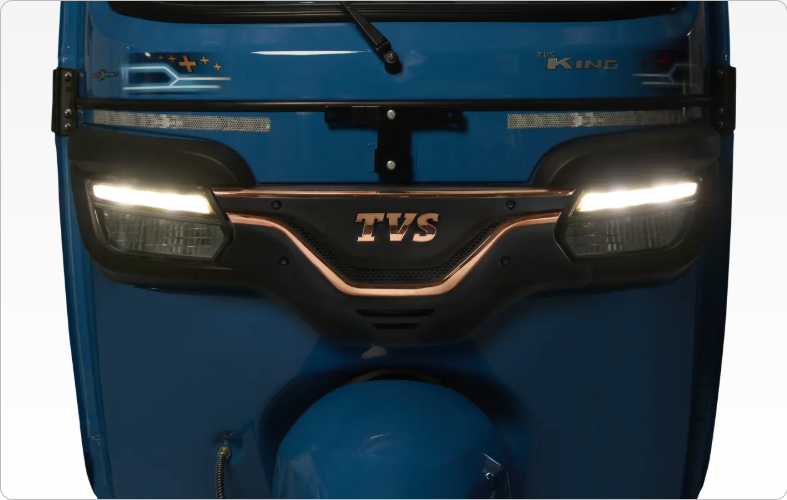

LED headlights, LED tail lights, halogen indicators |
|
Features |

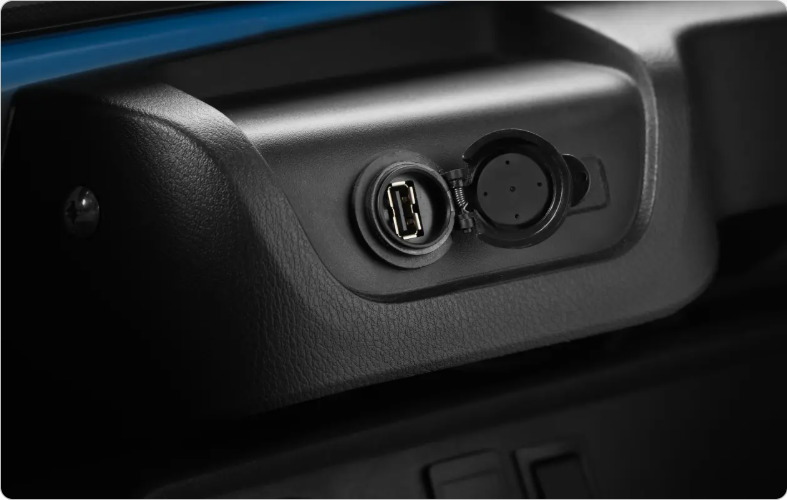

USB charging socket, storage spaces, passenger safety doors, wide windshield, large side mirrors, maintenance-free electricals, regenerative braking |
|
Safety Features |
Chassis-mounted rear bumper, robust body construction, hydraulic brakes |
Available Colors
|
Specification |
Details |
|
Colors |
Green, White |
