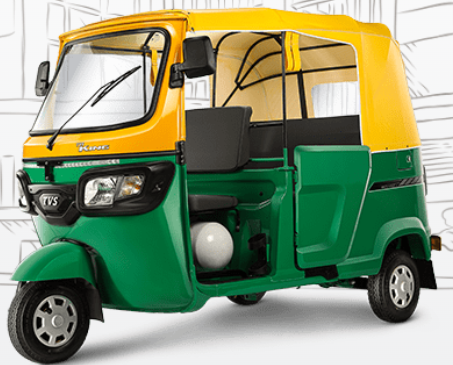

TVS King Deluxe 2025 – Passenger Auto Rickshaw
Specification
|
Specification |
Details |
|
Engine |
199.26cc, 4-stroke, single-cylinder, air-cooled, BS6 Phase 2 |
|
Power |
9.0 PS @ 5250 rpm (Petrol), 8.0 PS @ 5000 rpm (CNG), 7.5 PS @ 5000 rpm (LPG) |
|
Torque |
14.5 Nm @ 3500 rpm (Petrol), 13.5 Nm @ 3250 rpm (CNG), 13.0 Nm @ 3250 rpm (LPG) |
|
Transmission |
4-speed manual, constant mesh |
|
Mileage |
30 kmpl (Petrol, user-reported), 40 km/kg (CNG), 35 km/kg (LPG) |
|
Fuel Tank Capacity |
8.5L (Petrol), 20.6L (CNG), 12L (LPG) |
|
Kerb Weight |
330 kg |
|
Dimensions (LxWxH) |
2647x1329x1740 mm |
|
Wheelbase |
1990 mm |
|
Ground Clearance |
169 mm |
|
Seating Capacity |
Driver + 3 passengers |
|
Suspension (Front/Rear) |
Swingarm with hydraulic damper/Swingarm with hydraulic damper |
|
Brakes (Front/Rear) |
130 mm drum/130 mm drum |
|
Tyres (Front/Rear) |
4.00-8, 6 PR/4.00-8, 6 PR, tube-type |
|
Variants |
Petrol, CNG, LPG |
|
Price (Ex-Showroom, Delhi) |
₹1,20,000–₹1,35,000(Year-2025) |

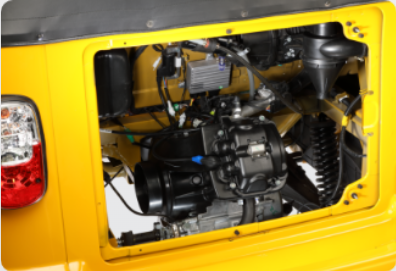

Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Air-cooled, 4-stroke, single-cylinder, fuel-injected |
|
Displacement |
199.26cc |
|
Bore & Stroke |
52 mm x 47 mm |
|
Compression Ratio |
9.5:1 |
|
Maximum Power |
9.0 PS @ 5250 rpm (Petrol), 8.0 PS @ 5000 rpm (CNG), 7.5 PS @ 5000 rpm (LPG) |
|
Maximum Torque |
14.5 Nm @ 3500 rpm (Petrol), 13.5 Nm @ 3250 rpm (CNG), 13.0 Nm @ 3250 rpm (LPG) |
|
Fuel System |
Electronic fuel injection (EFI) |
|
Transmission |
4-speed manual |
|
Clutch |
Wet, multi-plate |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
2647 mm |
|
Overall Width |
1329 mm |
|
Overall Height |
1740 mm |
|
Wheelbase |
1990 mm |
|
Ground Clearance |
169 mm |
|
Kerb Weight |
330 kg |
|
GVW |
405 kg |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Semi-monocoque chassis |
|
Front Suspension |
Swingarm with hydraulic damper & coil spring |
|
Rear Suspension |
Swingarm with hydraulic damper & coil spring |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
130 mm drum |
|
Rear Brake |
130 mm drum |
|
Braking System |
Hydraulic drum brakes |
|
Front Tyre |
4.00-8, 6 PR, tube-type |
|
Rear Tyre |
4.00-8, 6 PR, tube-type |
|
Wheels |
8-inch steel rims |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V, 32Ah |
|
Starting Method |
Electric and kick start |
|
Instrumentation |
Analogue cluster with fuel gauge |
|
Lighting |
Twin halogen headlights, halogen tail lamp, halogen indicators |
|
Features |
USB charging socket, storage spaces, single start-stop switch, passenger safety doors, wide windshield, large side mirrors, maintenance-free electricals |
|
Safety Features |
Chassis-mounted rear bumper, robust body construction, hydraulic brakes |
Available Colors
|
Specification |
Details |
|
Colors |
Green, Blue, Red |
