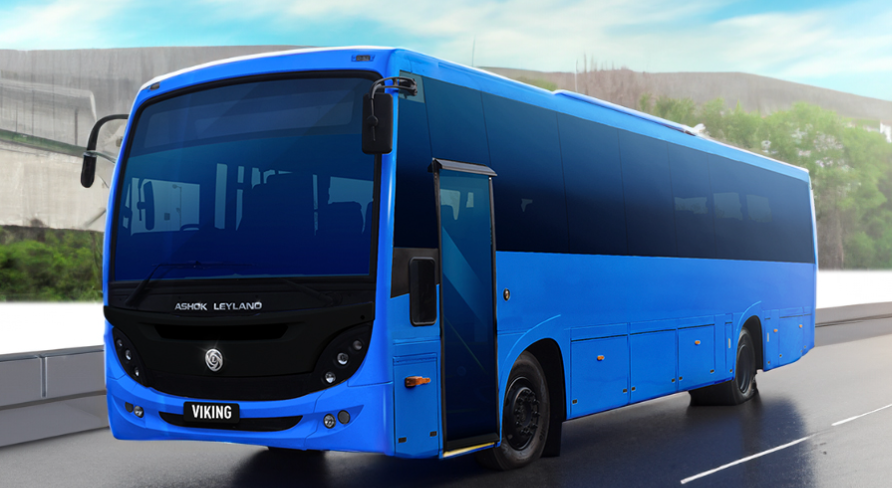

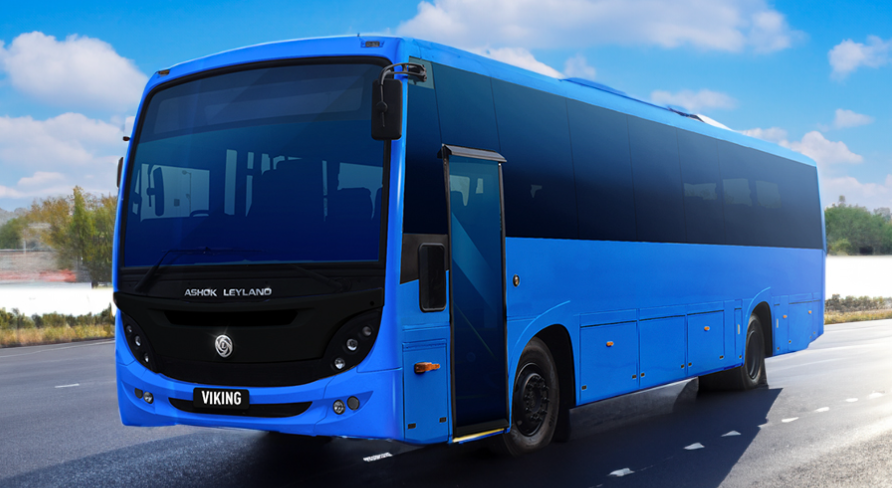

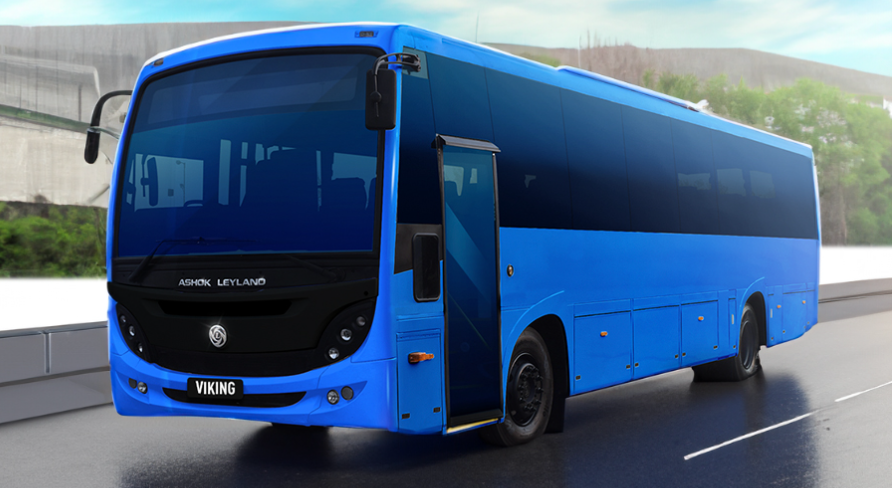

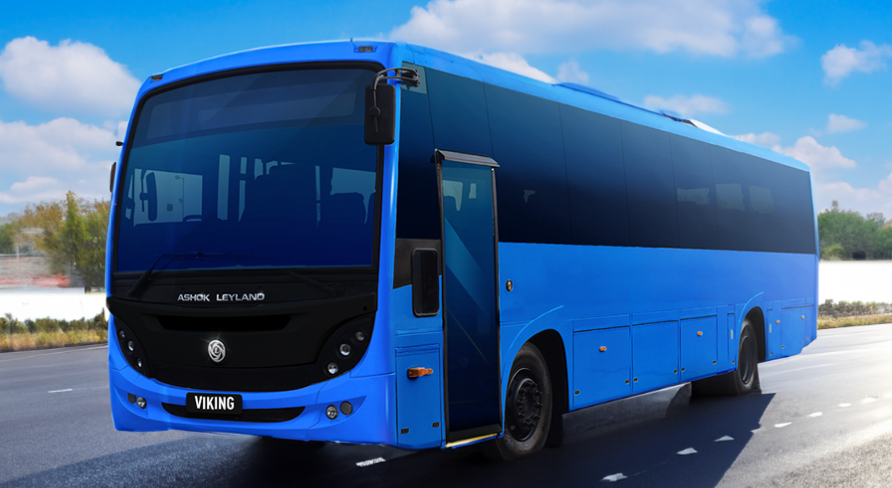

Ashok Leyland Viking 2025 – Intercity Bus Chassis
Specifications
|
Specification |
Details |
|
Engine |
H-series 6-cylinder, turbocharged, BS-VI diesel with CRS and iEGR |
|
Power |
200 hp (147 kW) @ 2400 rpm |
|
Torque |
700 Nm @ 1200–2000 rpm |
|
Transmission |
6-speed synchromesh manual |
|
Drivetrain |
Rear-Wheel Drive (4x2) |
|
Brakes |
Dual-circuit full air brakes with ABS |
|
Suspension |
Front: Shackle-ended semi-elliptical leaf springs with shock absorbers; Rear: Shackle-ended semi-elliptical leaf springs or air suspension |
|
Wheel Size |
10R20-16PR or 295/80R22.5-16PR |
|
Tyres |
295/80R22.5-16PR (tubeless radial) |
|
Weight |
16200 kg (GVW); ~5600 kg (kerb, chassis only) |
|
Dimensions (LxWxH) |
10699–11187 x 2490 x ~3100 mm (chassis, height varies with body) |
|
Wheelbase |
3900/4900/5443/5639 mm |
|
Ground Clearance |
~260 mm (unladen, chassis) |
|
Fuel Tank Capacity |
185/239 L |
|
Mileage |
~4–6 km/L (real-world, varies with load and body) |
|
Price (Ex-Showroom, Delhi) |
₹27.83–33.80 Lakh (chassis only) (Year-2025) |
|
Price (On-Road, Delhi) |
₹31.50–41.20 Lakh (fully built, estimated) (Year-2025) |
|
Seating Capacity |
41–62 (customizable, 2x2 or 3x2 layouts) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-type with cross members |
|
Engine Type |
H-series 6-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulic actuation |
|
Gearbox |
6-speed synchromesh manual |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Shackle-ended semi-elliptical leaf springs with telescopic shock absorbers |
|
Rear Suspension |
Shackle-ended semi-elliptical leaf springs or air suspension with shock absorbers |
|
Front Brake |
Air-actuated drum brakes |
|
Rear Brake |
Air-actuated drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
10-stud steel wheels |
|
Tyres |
295/80R22.5-16PR (tubeless radial) |
|
Wheel Size |
10R20-16PR or 295/80R22.5-16PR |
Components & Features
|
Specification |
Details |
|
Seat |
41–62 seats, customizable (2x2 or 3x2 layouts), high-back or reclining options |
|
Handlebar |
Power steering, adjustable tilt |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer |
|
Features |
Single/twin door options, optional AC, power steering, adjustable steering column, customizable body |
|
Safety Features |
ABS, seat belts, fire-retardant interiors (optional), emergency exits, parking brake |
Available Colors
|
Specification |
Details |
|
Colors |
Customizable per body builder (e.g., White, Blue, Green, Yellow) |
