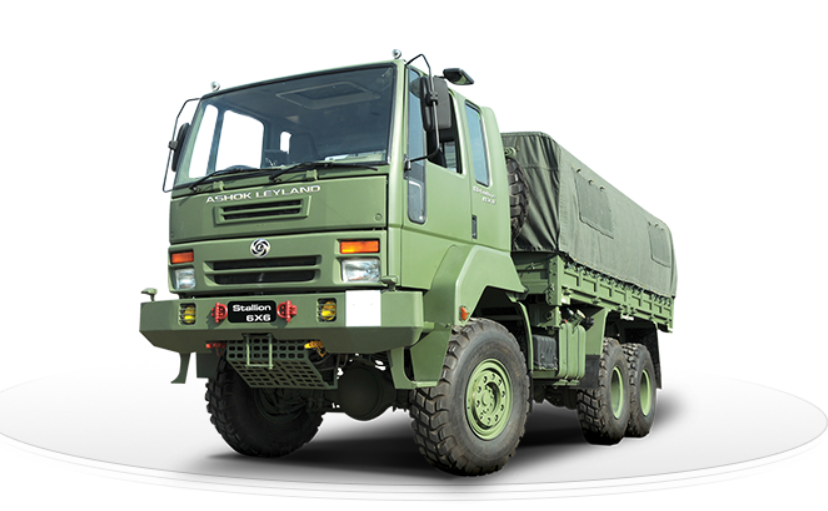

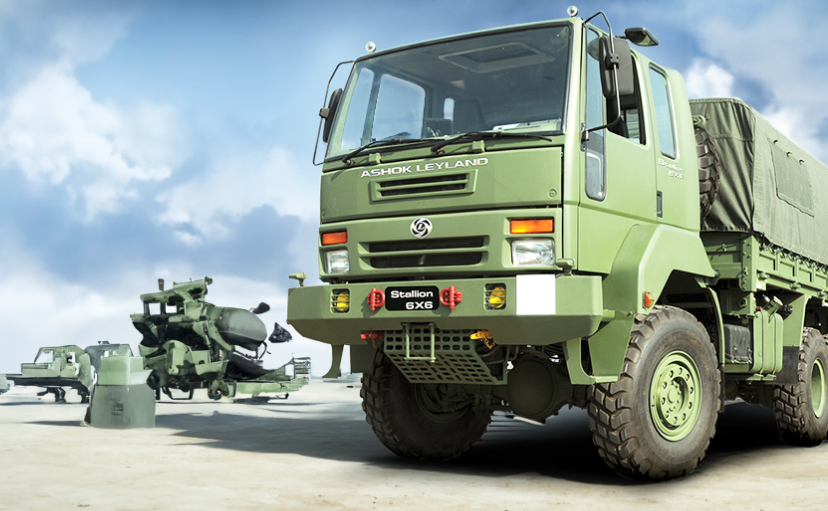

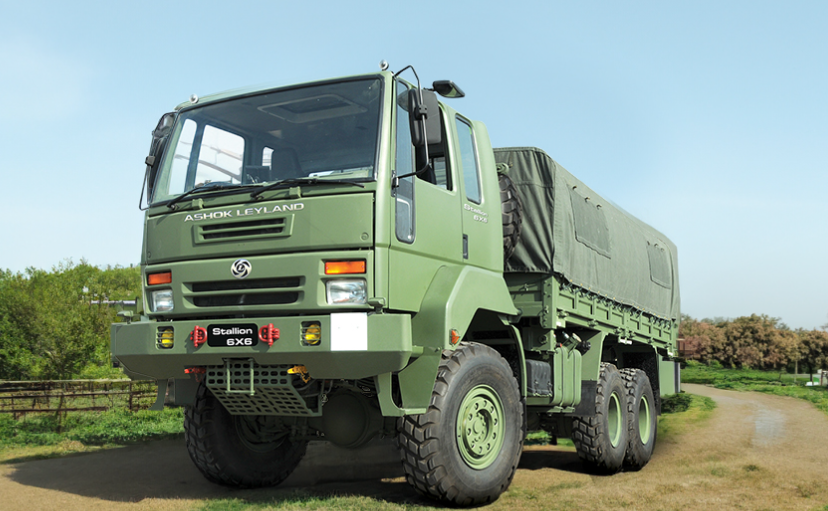

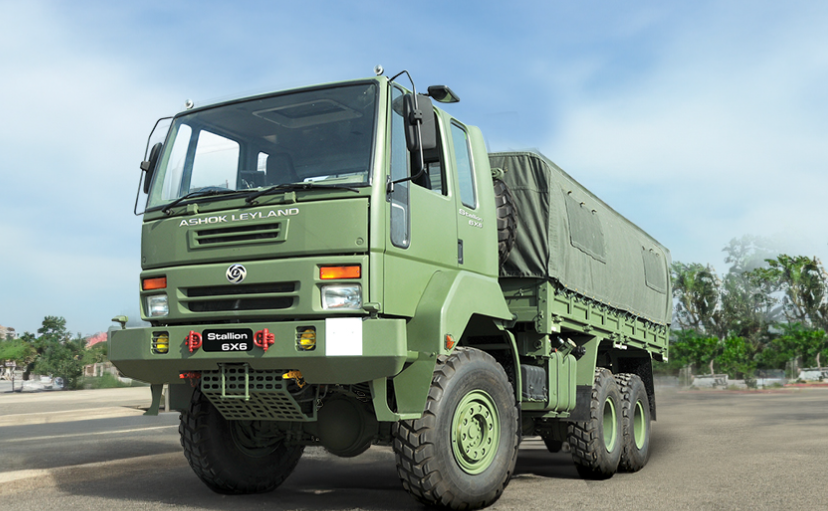

Ashok Leyland Super Stallion 6x6 2025 – Military High-Mobility Vehicle
Specifications
|
Specification |
Details |
|
Engine |
Neptune series 8.0L, 6-cylinder, turbocharged, BS-VI diesel with CRS |
|
Power |
360 hp (268 kW) @ 2200 rpm |
|
Torque |
1400 Nm @ 1300 rpm |
|
Transmission |
9-speed manual with overdrive, optional automatic |
|
Drivetrain |
6x6 all-wheel drive with inter-axle and differential locks |
|
Brakes |
Dual-circuit full air brakes with ABS, exhaust brake |
|
Suspension |
Front: Parabolic leaf springs with shock absorbers; Rear: Semi-elliptical leaf springs with anti-roll bar |
|
Wheel Size |
14.00R20-20PR |
|
Tyres |
14.00R20-20PR (radial, bead lock) |
|
Weight |
21000 kg (GVW); ~9500 kg (kerb, chassis only) |
|
Dimensions (LxWxH) |
~9000 x 2500 x 3100 mm (chassis, varies with configuration) |
|
Wheelbase |
~4500 mm |
|
Ground Clearance |
~400 mm (unladen) |
|
Fuel Tank Capacity |
350 L |
|
Mileage |
~2–4 km/L (real-world, varies with load and terrain) |
|
Price (Ex-Showroom, Delhi) |
₹50.00–60.00 Lakh (chassis only, estimated) (Year-2025) |
|
Price (On-Road, Delhi) |
₹55.00–65.00 Lakh (fully built, estimated) (Year-2025) |
|
Payload Capacity |
10000 kg |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
High-strength steel ladder-type with cross members |
|
Engine Type |
Neptune series 8.0L, 6-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulic actuation with clutch booster |
|
Gearbox |
9-speed manual with overdrive, optional automatic |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf springs with telescopic shock absorbers |
|
Rear Suspension |
Semi-elliptical leaf springs with anti-roll bar |
|
Front Brake |
Air-actuated drum brakes |
|
Rear Brake |
Air-actuated drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
10-stud steel wheels with CTIS |
|
Tyres |
14.00R20-20PR (radial, bead lock) |
|
Wheel Size |
14.00R20-20PR |
Components & Features
|
Specification |
Details |
|
Seat |
Driver + 3 crew seats, bucket seats, crew cabin for 6–10 troops |
|
Handlebar |
Power steering, adjustable tilt, emergency steering system |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, FMS |
|
Features |
Air-conditioned cabin, 2.7T crane, 12T winch, CTIS, infrared rear-view camera, fire/smoke detection |
|
Safety Features |
ABS, bead lock tyres, fire extinguishers, reinforced cabin, optional NBC protection |
Available Colors
|
Specification |
Details |
|
Colors |
Military camouflage (customizable per Indian Army requirements) |
