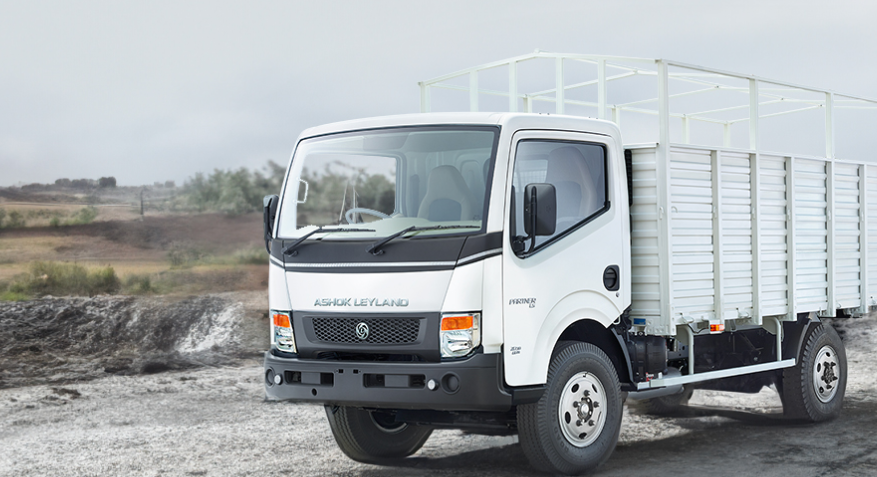

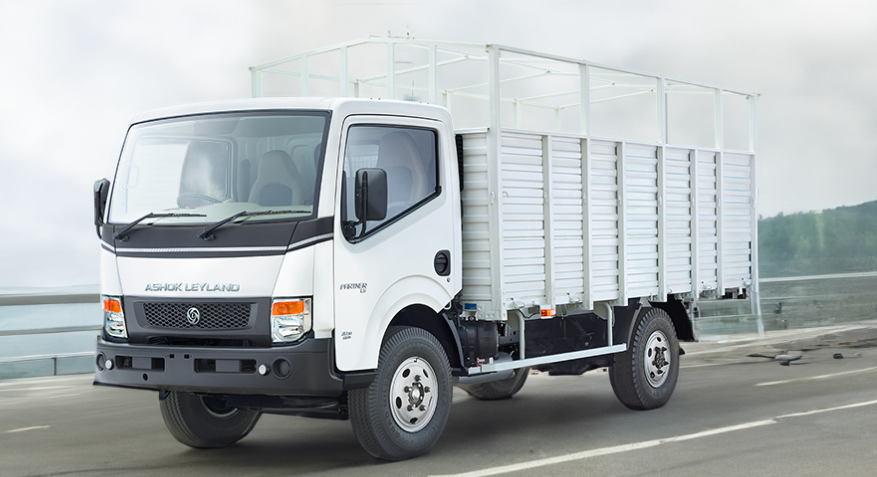

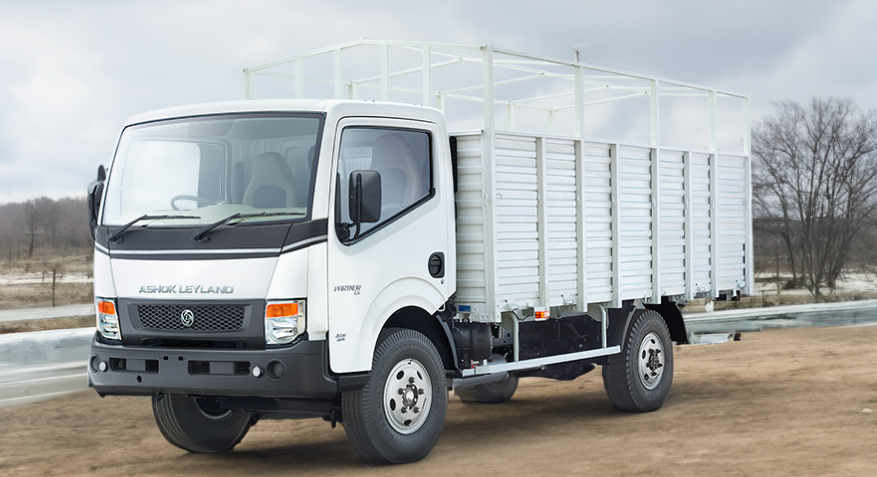

Ashok Leyland Partner 4-Tyre 2025 – Versatile Light Commercial Truck
Specifications
|
Specification |
Details |
|
Engine |
ZD30 Diesel, 3.0L, 4-cylinder, DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled), BS6-compliant |
|
Power |
140 hp @ 2750 rpm |
|
Torque |
360 Nm @ 1350–2750 rpm |
|
Transmission |
5-speed manual, fully synchromesh with overdrive |
|
Brakes |
Hydraulic vacuum-assisted, Front: Disc; Rear: Drum |
|
Suspension |
Front: Parabolic leaf springs; Rear: Semi-elliptical leaf springs |
|
Wheel Size |
16-inch |
|
Tyres |
7.50x16 16 PR |
|
Gross Vehicle Weight (GVW) |
6250–7200 kg (variant-dependent) |
|
Payload Capacity |
4000–4500 kg (variant-dependent) |
|
Dimensions (LxWxH) |
4920 x 2209 x 2250 mm (10 ft variant) |
|
Wheelbase |
2685 / 3335 mm (variant-dependent) |
|
Ground Clearance |
238 mm |
|
Fuel Tank Capacity |
70 L |
|
Mileage |
7 kmpl (claimed, ~6–7 kmpl user-reported) |
|
Price (Ex-Showroom, Delhi) |
₹13.45–₹14.67 Lakh(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder frame with bolted cross-members |
|
Engine Type |
ZD30 Diesel, 3.0L, 4-cylinder, DDT, BS6 |
|
Clutch |
310 mm diameter, single dry plate, diaphragm push type, hydraulic actuated |
|
Gearbox |
5-speed manual, fully synchromesh with overdrive |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf springs (3–5 leaves, variant-dependent) with double-acting shock absorbers |
|
Rear Suspension |
Semi-elliptical leaf springs (6–8 main + 3–4 helper, variant-dependent) with double-acting shock absorbers |
|
Front Brake |
Disc, hydraulic vacuum-assisted |
|
Rear Brake |
Drum, hydraulic vacuum-assisted |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Steel wheels, 16-inch |
|
Tyres |
7.50x16 16 PR |
|
Wheel Size |
16-inch |
Components & Features
|
Specification |
Details |
|

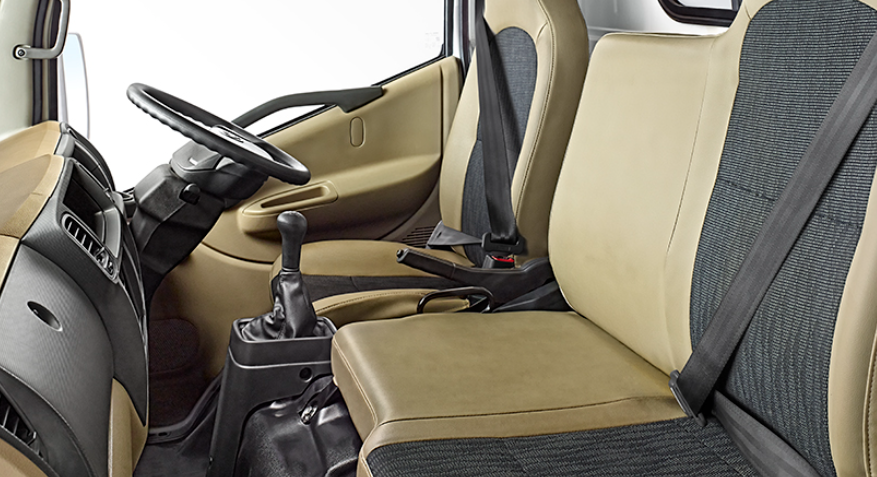

Seat |
Driver + 2 co-drivers, 1+2 seating layout, adjustable driver seat |
|
Handlebar |
Tiltable power steering |
|
Instrument Cluster |
Analog with digital display |
|
Features |
AC cabin, 12V charging port, lockable glovebox, fog lamps |
|
Safety Features |
ELR seatbelts, hydraulic brakes, sturdy chassis, optional i-Alert telematics |
Available Colors
|
Specification |
Details |
|
Colors |
White, Blue, Silver |
