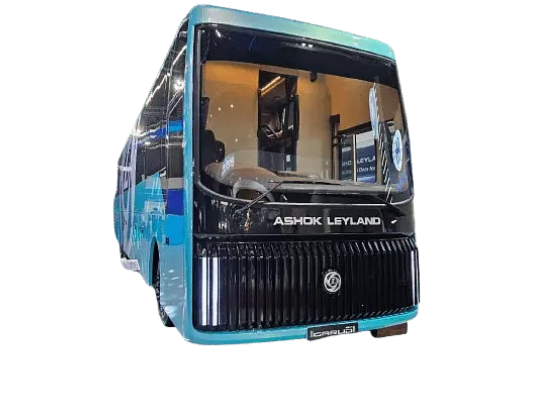

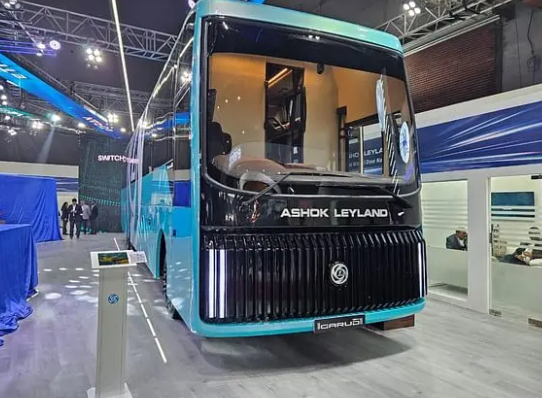

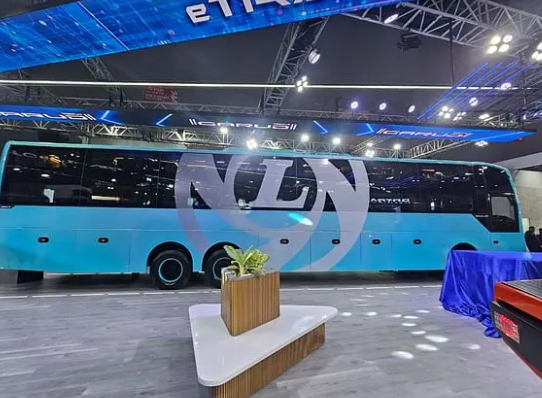

Ashok Leyland Garud 15m Bus Chassis 2025 – Intercity Coach
Specifications
|
Specification |
Details |
|
Engine |
A-series 4-cylinder, turbocharged, BS-VI diesel with CRS, iEGR, and SCR |
|
Power |
248 hp (183 kW) @ 2400 rpm |
|
Torque |
900 Nm @ 1200–1800 rpm |
|
Transmission |
6-speed synchromesh manual with cable shift |
|
Drivetrain |
Rear-Wheel Drive (4x2) with non-steerable pusher axle |
|
Brakes |
Dual-circuit full air brakes with ABS, front disc brakes, electromagnetic retarder |
|
Suspension |
Front: Parabolic leaf springs with shock absorbers; Rear: Full air suspension with anti-roll bar |
|
Wheel Size |
295/80R22.5-16PR |
|
Tyres |
295/80R22.5-16PR (tubeless radial) |
|
Weight |
22500 kg (GVW); ~6500 kg (kerb, chassis only) |
|
Dimensions (LxWxH) |
14765 x 2550 x ~3100 mm (chassis, height varies with body) |
|
Wheelbase |
~7100 mm |
|
Ground Clearance |
~260 mm (unladen, chassis) |
|
Fuel Tank Capacity |
375 L (diesel); 48 L (AdBlue) |
|
Mileage |
~4–6 km/L (real-world, varies with load and body) |
|
Price (Ex-Showroom, Delhi) |
₹50.00–60.00 Lakh (chassis only, estimated) (Year-2025) |
|
Price (On-Road, Delhi) |
₹60.00–75.00 Lakh (fully built, estimated) (Year-2025) |
|
Seating Capacity |
42–60 (2x2 reclining seats or 42 sleeper berths, customizable) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-type with cross members, high-strength steel, multi-axle |
|
Engine Type |
A-series 4-cylinder, turbocharged, front-mounted |
|
Clutch |
Air-assisted hydraulic clutch |
|
Gearbox |
6-speed synchromesh manual with cable shift and gear shift advisor |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf springs with telescopic shock absorbers |
|
Rear Suspension |
Full air suspension with anti-roll bar and shock absorbers |
|
Front Brake |
Air-actuated disc brakes |
|
Rear Brake |
Air-actuated drum brakes |
Wheels & Tyres
|
Specification |
Details |
|

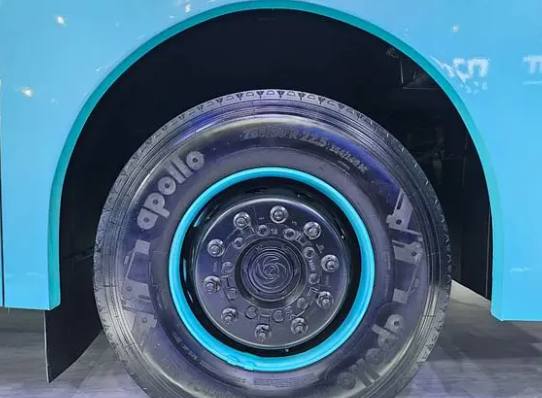

Wheels |
10-stud steel wheels |
|
Tyres |
295/80R22.5-16PR (tubeless radial) |
|
Wheel Size |
295/80R22.5-16PR |
Components & Features
|
Specification |
Details |
|
Seat |
42–60 seats or 42 sleeper berths, 2x2 reclining seats, armrests |
|
Handlebar |
Power steering, adjustable tilt, 3-way adjustable driver seat |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
AC, overhead luggage racks, LED lighting, USB charging ports, entertainment system, spacious luggage compartment |
|
Safety Features |
ABS, ADAS, DMS, seat belts, fire-retardant interiors, emergency exits, CCTV, panic buttons |
Available Colors
|
Specification |
Details |
|
Colors |
Customizable per body builder (e.g., White, Blue, Green, Silver) |
