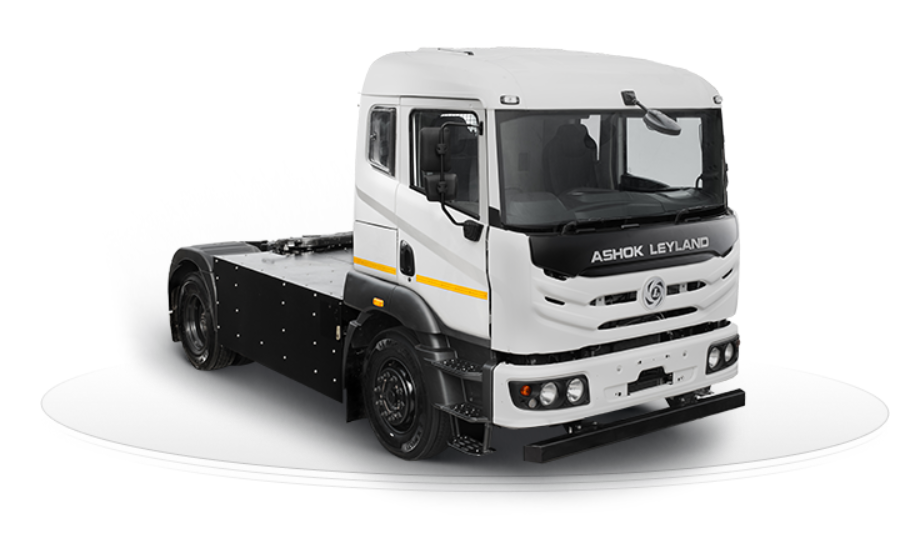

Ashok Leyland AVTR 2025 – Modular Truck Platform
Specifications
|
Specification |
Details |
|
Engine |
H-series or A-series 6-cylinder, turbocharged, BS-VI diesel with CRS and i-Gen6 technology |
|
Power |
200–250 hp (147–184 kW) @ 2400 rpm (variant-dependent) |
|
Torque |
700–900 Nm @ 1200–2000 rpm (variant-dependent) |
|
Transmission |
6-speed or 9-speed synchromesh manual |
|
Drivetrain |
4x2, 6x2, 6x4, 8x2, 8x4, 10x2, 10x4 (modular configurations) |
|
Brakes |
Dual-circuit full air brakes with ABS and ASA |
|
Suspension |
Front: Semi-elliptical or parabolic leaf springs; Rear: Semi-elliptical, bogie, or non-reactive suspension (variant-dependent) |
|
Wheel Size |
10R20-16PR, 295/90R20-16PR, or 295/80R22.5-16PR |
|
Tyres |
295/90R20-16PR or 295/80R22.5-16PR (tubeless radial) |
|
Weight |
18500–55000 kg (GVW); ~7000–12000 kg (kerb, chassis only) |
|
Dimensions (LxWxH) |
~6000–12000 x 2434–2590 x ~3000 mm (chassis, varies with configuration) |
|
Wheelbase |
3400–6600 mm (variant-dependent) |
|
Ground Clearance |
~260–300 mm (unladen, chassis) |
|
Fuel Tank Capacity |
220–375 L (variant-dependent) |
|
Mileage |
~3–6 km/L (real-world, varies with load and configuration) |
|
Price (Ex-Showroom, Delhi) |
₹22.50–65.50 Lakh (chassis only) ashok-leyland-boss |
|
Price (On-Road, Delhi) |
₹25.50–75.00 Lakh (fully built, estimated) ashok-leyland-boss |
|
Payload Capacity |
~11500–43000 kg (variant-dependent) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
High-strength steel (HSS) ladder-type with modular cross members |
|
Engine Type |
H-series or A-series 6-cylinder, turbocharged, front-mounted |
|
Clutch |
Single dry plate, hydraulic actuation with clutch booster |
|
Gearbox |
6-speed or 9-speed synchromesh manual |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Semi-elliptical or parabolic leaf springs with shock absorbers |
|
Rear Suspension |
Semi-elliptical, bogie, or non-reactive suspension with shock absorbers |
|
Front Brake |
Air-actuated drum brakes |
|
Rear Brake |
Air-actuated drum brakes |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
10-stud steel wheels |
|
Tyres |
295/90R20-16PR or 295/80R22.5-16PR (tubeless radial) |
|
Wheel Size |
10R20-16PR or 295/80R22.5-16PR |
Components & Features
|
Specification |
Details |
|
Seat |
Driver seat adjustable, co-driver bench, optional sleeper berth |
|
Handlebar |
Power steering, adjustable tilt |
|
Instrument Cluster |
Analog with digital trip meter, speedometer, tachometer, fuel gauge |
|
Features |
Modular cabins (Economy/Value/Premium), optional AC/HVAC, customizable body (haulage, tipper, tractor), i-Alert telematics, LED lamps |
|
Safety Features |
ABS, ASA, seat belts, parking brake, reinforced cabin, optional reverse camera |
Available Colors
|
Specification |
Details |
|
Colors |
Customizable per body builder (e.g., White, Blue, Red, Green) |
