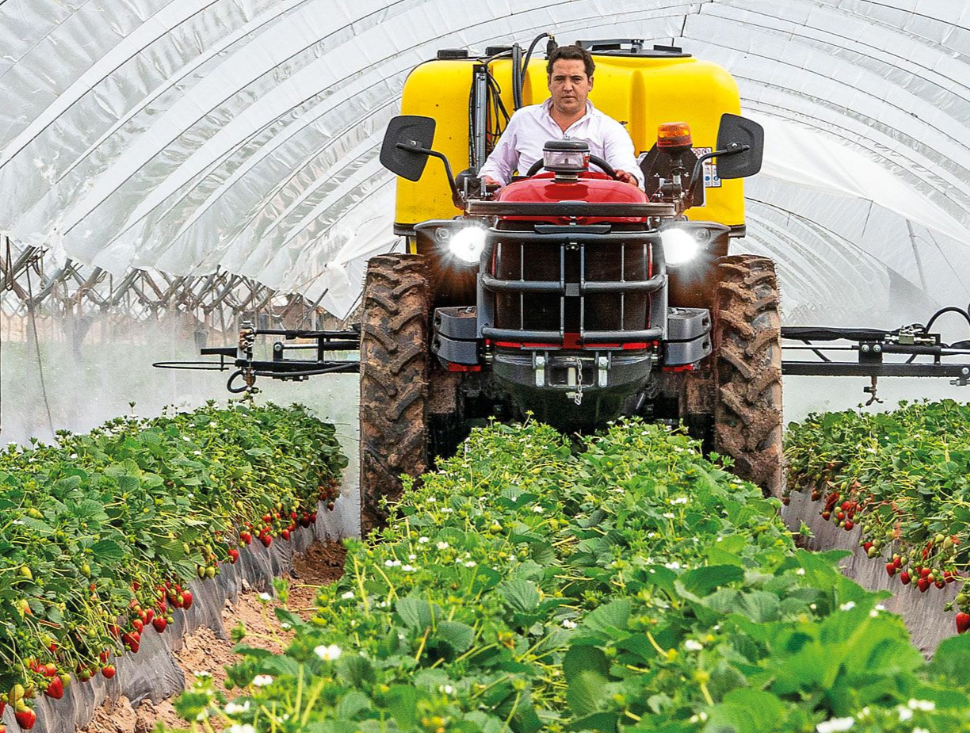

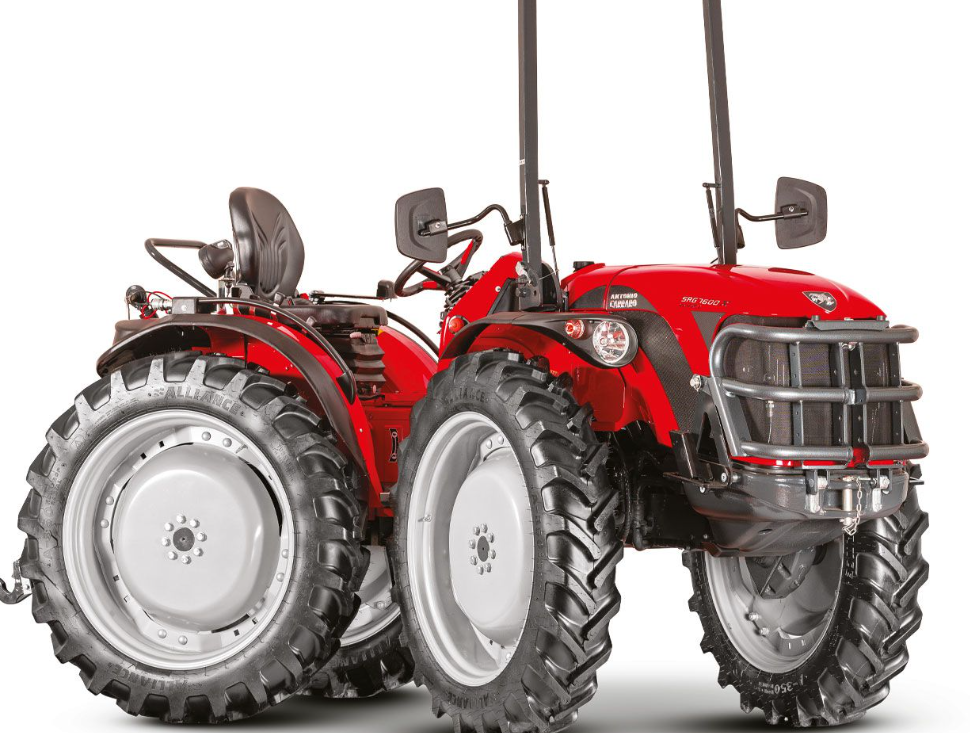

Antonio Carraro TTR 8900 R – 4WD Utility Tractor for Haymaking and Slopes
Specifications
|
Specification |
Details |
|
Tractor Model |
TTR 8900 R (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haymaking, Vineyards, Orchards, Steep Slopes, Urban Parks, Sports Fields |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3769 cm³, Common Rail Direct Injection, Turbocharged, Liquid Cooled, Stage 5, Counter Rotating Weight System |
|
Maximum Horsepower |
74.2 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronized, 16 Forward + 16 Reverse, Synchronized Shuttle, Optional e-Drive with Steering Wheel Shuttle Control, Optional Hi-Lo (64 Speeds), RGS™ Reversible Drive System |
|
Clutch |
Hydraulic with Wear Compensation |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric |
|
Differential Lock |
Electro-Hydraulic Control, Rear or Front/Rear |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front/Rear Oil-Immersed Disc Brakes, Independent Hydraulic Rear Steering Brakes, Band Brakes on Transmission for Emergency and Parking, Optional Superbrake System |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
31x15.50-15 Terra |
|
Tyre Size (Optional) |
340/65 R18, 400/55-17.5 Terra Twin, 440/50 R17 All-Ground, 425/55 R17 AC 70 G |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Synchronized in All Gears, Oil-Immersed Multiplate Clutch, Progressive Electro-Hydraulic Engagement |
|
Hydraulic System |
2 Independent Hydraulic Pumps, Joystick-Controlled, 2 Double-Acting Remote Valves (1 Float), 1 Single-Acting, 1 Oil Return, 6 Rear Quick Couplers, Optional Front Lift with 2 Quick Couplers |
|
Rear 3-Point Hitch |
Category 2, 2400 kg (5291 lb) Capacity, Adjustable Lift Arms with Quick-Hitch Hooks, Uniflex Hydropneumatic Suspension, Optional Electronic Speed Control |
|
Steering |
Hydraulic with Through-Rod Cylinder, RGS™ Reversible Drive System, Optional Steering Brakes |
|
Electrical System |
Multifunctional Digital Display, Battery Isolation Switch, Rear-View Mirror, 3-Pin Electrical Socket, Optional LED Work Lights (2 Front + 2 Rear) |
|
Weight |
2165-2355 kg (4773-5192 lb, Roll-Bar); 2295-2485 kg (5060-5478 lb, Extra Comfort Cab) |
|
Cab Options |
Optional Extra Comfort Cab, ROPS-FOPS Certified, Total-Glass Structure, Air-Conditioned, 360° Visibility, Suspended on Silent Blocks |
|
Ground Clearance |
320-365 mm (12.6-14.4 in, Depending on Tyres) |
|
Fuel Tank Capacity |
50 l (13.2 gal) |
|
Wheelbase |
1255 mm (49.4 in) |
|
Width |
1390-1840 mm (54.7-72.4 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
