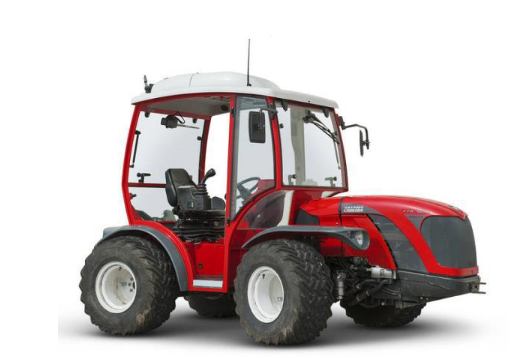

Antonio Carraro TTR 7600 INFINITY T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TTR 7600 INFINITY T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2482 cm³, Kohler Tier 4 Final, Turbo Intercooler, Water Cooling, Common Rail Injection |
|
Power |
55.4 kW / 75 hp |
|
Torque Max |
295 Nm @ 1500 RPM |
|
Transmission |
Hydrostatic transmission with continual speed variation with 3 electric, shift-on-the-go ground speeds for each mechanical speed, electro-hydraulic reverser; Mechanical selector with 2 speed range (work and transport); Steeples speed variation in both forward and reverse from 0 to 25 mph |
|
Transmission Features |
Automatic transmission; "automotive" device; instant cruise control, memo cruise control, memo rpm, dual memo cruise control; Intellifix, fast reverse, limit rpm, drive mode (3 settings), anti-stall function on transmission, anti-stall function on PTO, diagnostics |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four equal wheel drive, Electro-hydraulic disengagement control for front drive wheels |
|
Differential Lock |
Electro-hydraulic front/rear or only rear differential lock |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, independent rear steering brakes; Emergency and parking brake band type transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 31x15.50-15 Terra, Rear: 31x15.50-15 Terra |
|
Minimum External Width |
72.2 in (tyres) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e independent and ground speed with progressive electro-hydraulic engagement, settable by cluster in Normal or Plus position, Start inhibit switch on shuttle reverser, PTO selector, clutch, parking brake and seat |
|
Hydraulic System |
Hydraulic system with 2 independent pumps; Auxiliary rear electro-hydraulic remotes (joystick) with 2 double acting distributors (1 floating) with oil reflow and 5 rear quick couplings; "Uniflex" Hydro-pneumatic suspension for hydraulic power lift with 3-point linkage; Hydraulic suspension device with joy-stick ON-OFF |
|
Lifting capacity |
5292 lb |
|
Lift arms |
Adjustable lift arms with quick couplings group 2 |
|
Towing Device |
Swinging draw bar |
|
Frame |
6-post Safety frame mounted on Silent-block |
|
Driving Comfort |
Digital multifunctional dashboard with color display, LED and diagnostics; Hydraulic steering wheel with through-rod cylinder; Reversible driving position; Adjustable padded seat; Safety belts; Adjustable steering wheel; rear-view mirrors; battery isolation switch |
|
Weight with chassis |
4773/5192 lb |
|
Weight with cab |
5060/5478 lb |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
