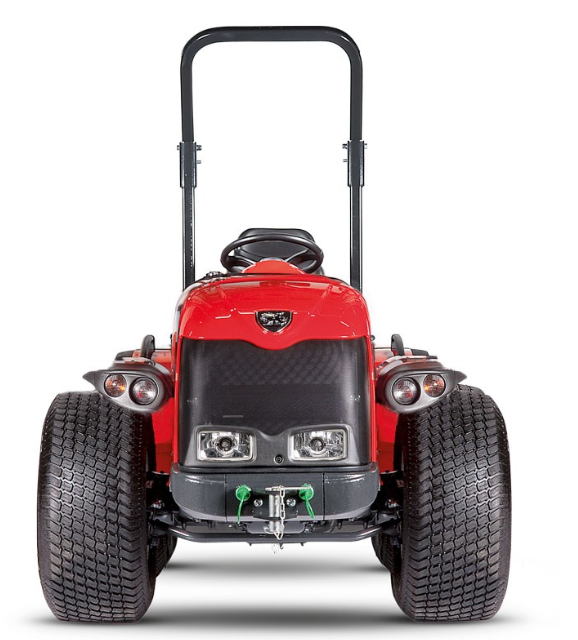

Antonio Carraro TTR 3800 – 4WD Utility Tractor for Sloping Terrain
Specifications
|
Specification |
Details |
|
Tractor Model |
TTR 3800 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Flat Terrain, Slopes, Rugged Terrain, Small Farms, Greenhouses, Parks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 3 Cylinders, 1331 cm³, Direct Injection, Stage 5 |
|
Maximum Horsepower |
25.7 HP (18.9 kW) @ 2800 RPM |
|
Maximum Torque |
86.8 Nm @ 1200 RPM |
|
Transmission Type |
Hydrostatic with Hydraulic Control, RGS™ Reversible Drive System |
|
Clutch |
Hydraulic Control |
|
Frame |
ACTIO™ Integral Oscillating Frame, Steering, Isodiametric |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Service Brake, Pedal Operated, Acting on Rear Wheels, Optional on All Wheels, Mechanical Parking Brake, Lever Operated, Acting on Rear Wheels |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
29x12.50-15 in |
|
Tyre Size (Optional) |
6.50-16, 7.50-16, 240/70-15 in |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/1000 RPM, 6 Spline 1 3/8” Shaft with Easy Coupling |
|
Hydraulic System |
3 Rear Double-Acting Remote Valves with Float Position, 6 Rear Quick Couplers |
|
Rear 3-Point Hitch |
Category 1 and 1N, 910 kg (2006 lb) Capacity, Fixed Lift Arms with Ball Ends and Spring Clips |
|
Steering |
Hydraulic with 2 Pistons |
|
Weight |
1150-1200 kg (2535-2646 lb, Roll-Bar) |
|
Cab Options |
None |
|
Ground Clearance |
220 mm (8.7 in) |
|
Fuel Tank Capacity |
29 l (7.7 gal) |
|
Wheelbase |
1360 mm (53.5 in) |
|
Width |
1380 mm (54.3 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
