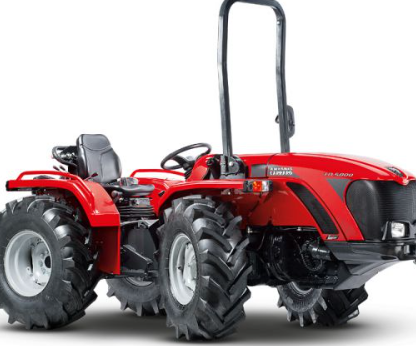

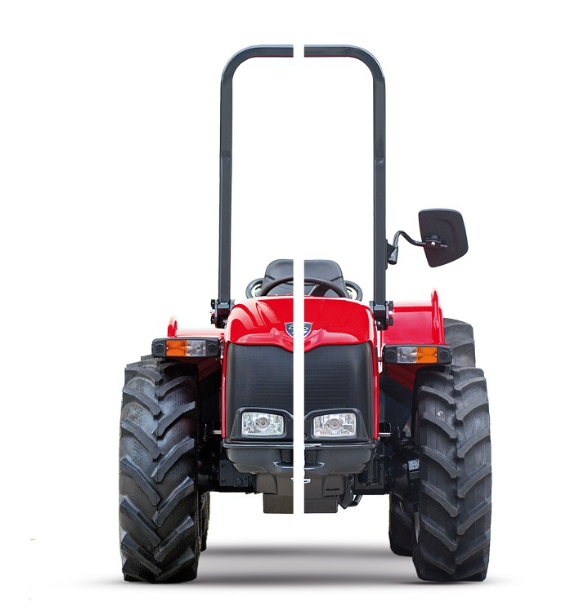

Antonio Carraro TTR 10900 – 4WD Utility Tractor for Hillside Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
TTR 10900 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mountain Pastures, Hillsides, Vineyards, Orchards, Urban Parks, Sports Fields |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3769 cm³, Direct Injection, Turbo, Stage 3A |
|
Maximum Horsepower |
99 HP (73 kW) @ 2600 RPM |
|
Maximum Torque |
320 Nm @ 1600 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter, Optional e-DRIVE with HI-LO (32+32 Speeds), RGS™ Reversible Drive System |
|
Clutch |
Hydraulic Control |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric, 15° Longitudinal Oscillation |
|
Differential Lock |
Electro-Hydraulic Control, Front and Rear or Rear Only |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission, Optional Superbrake System |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
31x15.50-15 Terra |
|
Tyre Size (Optional) |
340/65 R18, 400/55-17.5 Terra Twin, 440/50 R17 All-Ground, 425/55 R17 AC 70 G |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Electro-Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
2 Separate Pumps, 2 Double-Acting Manifolds, 1 Single-Acting, 1 Oil Return, 6 Rear Quick Couplers, 160 bar Operating Pressure, Optional Front Lift, Optional Joystick Control |
|
Rear 3-Point Hitch |
Category 1 and 2, 2400 kg (5291 lb) Capacity, Hydropneumatic Suspension, Adjustable Lifting Arms, Optional Draft and Position Control |
|
Steering |
Hydraulic with 2 Pistons, Adjustable Steering Wheel, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Instrument, Km/h and PTO Rev Counter, Battery, Battery Isolation Switch, Electrical Power Point, Safety Starting Device |
|
Weight |
2150-2340 kg (4740-5159 lb, Frame); 2280-2470 kg (5026-5445 lb, Extra Comfort Cab) |
|
Cab Options |
Optional Extra Comfort Cab, Soundproofed, Air-Conditioned, Full Glass Doors, Panoramic Roof, Suspended on Silent Blocks |
|
Ground Clearance |
310-400 mm (12.2-15.7 in, Depending on Tyres) |
|
Fuel Tank Capacity |
60 l (15.85 gal) |
|
Wheelbase |
1220 mm (48.0 in) |
|
Width |
1390-1835 mm (54.7-72.2 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
