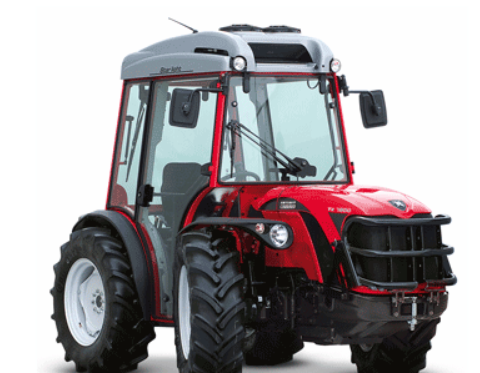

Antonio Carraro TRX 8900 R T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TRX 8900 R T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 3769 cm³, Kubota Tier 4 Final, Turbo, Water Cooling, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF) |
|
Power |
54.6 kW / 74.2 hp |
|
Torque Max |
335 Nm @ 1500 RPM |
|
Transmission |
Synchronized gearbox with 32 speeds, 16 fwd + 16 rev, and synchronized shuttle reverser, Hydraulic clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four equal wheel drive – Front & rear final drive, Electrohydraulic disengagement control for front drive wheels |
|
Differential Lock |
Electrohydraulic front/rear or only rear differential lock |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, independent rear steering brakes; Emergency and parking brake band type on transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 250/80-18, Rear: 250/80-18 (adjustable rims), 6-spoke rims on 20" and 24" tires |
|
Minimum External Width |
54.3 in (tyres) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e independent and ground speed with progressive hydraulic engagement |
|
Hydraulic System |
2 Double Acting distributors (1 floating pos.), 1 Simple Acting distributor, 1 Oil Reflow, 2 Lub. oil pumps, independent Circuit, Hydraulic power lift with draft and position control (standard + damping) |
|
Lift arms |
quick couplings cat. 2 |
|
Lifting capacity |
5291 lbs |
|
Towing Device |
Front towing device; Swinging drawbar |
|
Frame |
Platform chassis on Silent-block; Ground Drive with suspended pedal |
|
Driving Comfort |
Hydraulic steering wheel with through-rod cylinder; Digital multifunctional dashboard with display and diagnostic function; Reversible driving position; Forward foldable front safety roll bar (r.o.p.s.); Adjustable padded ergonomic seat with retractable seat belt; Rear-view mirror; battery isolation switch |
|
Weight with roll bar |
4586/4806 lbs |
|
Weight with cab |
4894/5115 lbs |
|
Rear working light |
standard |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
