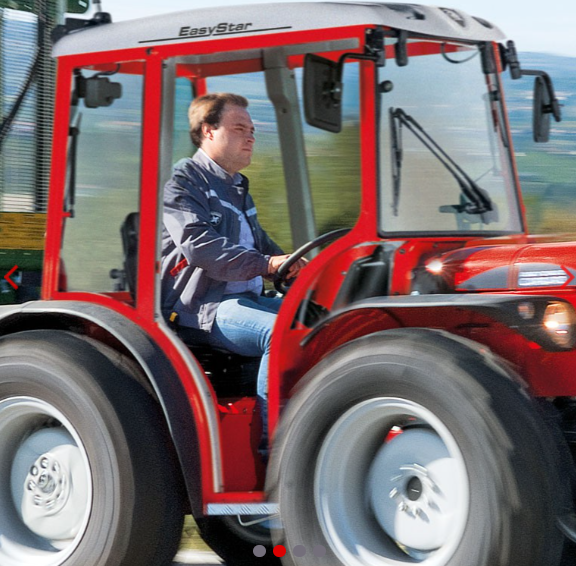

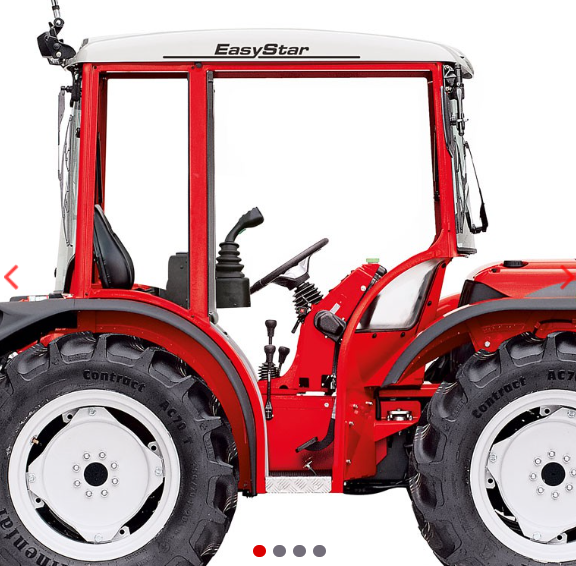

Antonio Carraro TRX 7800 S – 4WD Utility Tractor for Orchards and Parks
Specifications
|
Specification |
Details |
|
Tractor Model |
TRX 7800 S (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Sloping Grounds, Sports Centres, Parks, Public Spaces |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3319 cm³, Direct Injection, Turbo, Stage 3A |
|
Maximum Horsepower |
71 HP (52 kW) @ 2500 RPM |
|
Maximum Torque |
236 Nm @ 1600 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter, RGS™ Reversible Drive System |
|
Clutch |
Mechanic Control, No Adjustment Required |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric, 15° Longitudinal Oscillation |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission |
Suspension & Brakes
|
Specification |
Details |
|
Differential Lock |
Electro-Hydraulic Control, Front and Rear or Rear Only |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
250/80-18 |
|
Tyre Size (Optional) |
300/80-15.3, 320/65 R18, 300/70 R20, 280/70 R18, 320/70 R20, 400/55-17.5, 31x15.50-15, 280/85 R20, 340/65 R18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Electro-Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
Oversize Circuit, 1 Double-Acting Remote Valve with Float, 1 Oil Reflow, 3 Rear Quick Couplers, 140 bar Operating Pressure, Optional ON/OFF Joystick Control, Optional Front Lift |
|
Rear 3-Point Hitch |
Category 1, 2150 kg (4739 lb) Capacity, Fixed Lift Arms, Optional Hydraulic Third Hitch and Vertical Tie-Rod, Optional Hydraulic Suspension, Optional Draft and Position Control |
|
Steering |
Hydraulic with 2 Pistons, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Instrument, Anti-Glare Backlit Screen, Battery, Electrical Power Point, Safety Starting Device on Inverter and PTO |
|
Weight |
2080-2180 kg (4586-4806 lb, Roll-Bar); 2130-2230 kg (4696-4916 lb, EasyStar Frame); 2220-2320 kg (4894-5115 lb, StarLight Cab) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Opening Front and Rear Windows, Electric Wipers; Optional EasyStar 6-Post Frame with Roof and Optional Windscreens |
|
Ground Clearance |
242-341 mm (9.5-13.4 in, Depending on Tyres) |
|
Fuel Tank Capacity |
60 l (15.9 gal, Roll-Bar); 50 l (13.2 gal, Frame and Cab) |
|
Wheelbase |
1495 mm (58.9 in) |
|
Width |
1380-1690 mm (54.3-66.5 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
