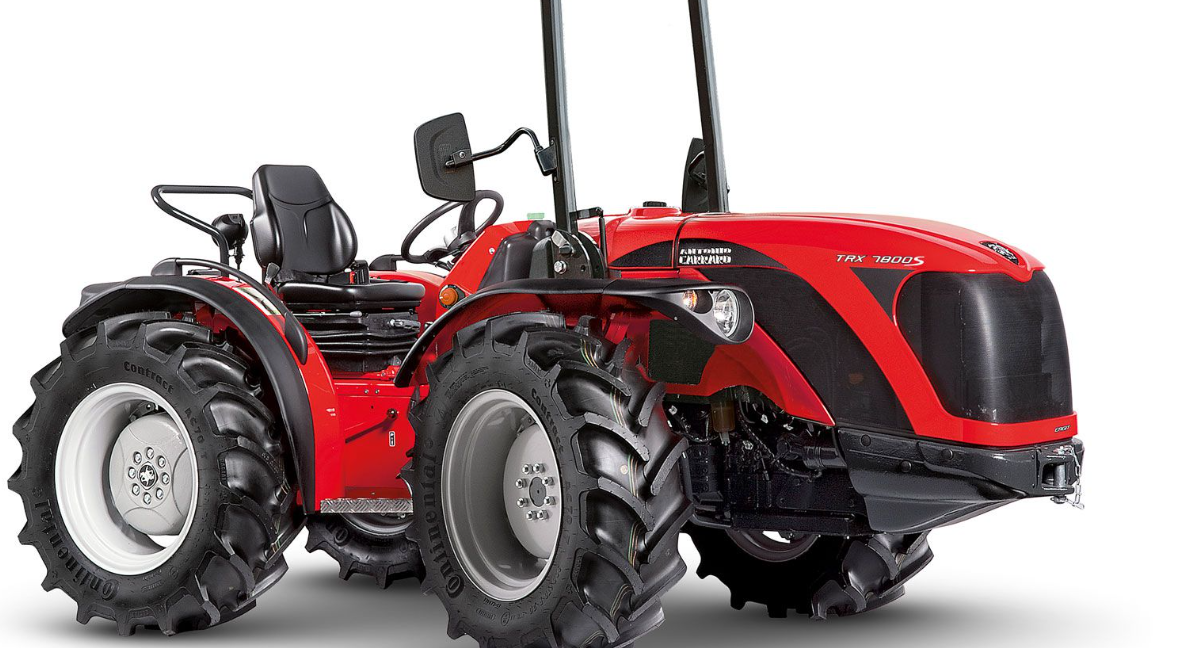

Antonio Carraro TRX 7800 – 4WD Utility Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
TRX 7800 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Open Fields, Sloping Grounds, Green Keeping, Forestry, Construction |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3319 cm³, Common Rail Direct Injection, Stage 5 |
|
Maximum Horsepower |
70.3 HP (51.7 kW) @ 2500 RPM |
|
Maximum Torque |
236 Nm @ 1600 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter, RGS™ Reversible Drive System |
|
Clutch |
Mechanic Control, No Adjustment Required |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric, 15° Longitudinal Oscillation |
|
Differential Lock |
Electro-Hydraulic Control, Front and Rear or Rear Only |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
250/80-18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Electro-Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
3-Lever Auxiliary System, 160 bar Operating Pressure, Optional JPM Proportional Joystick |
|
Rear 3-Point Hitch |
Category 1 and 2, 2150 kg (4739 lb) Capacity, Fixed Lift Arms with Cat. 1-2 Ball Ends, Optional Draft and Position Control |
|
Steering |
Hydraulic, RGS™ Reversible Drive System, Accelerator Pedal on Turret |
|
Electrical System |
Multifunctional Digital Console, Battery, Battery Disconnector, Electrical Outlet Socket, Safe Start System |
|
Weight |
2080-2180 kg (4586-4806 lb, Roll-Bar); 2220-2320 kg (4894-5115 lb, StarLight Cab); 2130-2230 kg (4696-4916 lb, EasyStar Frame) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Roof Hatch, Optional Active Carbon Filters; Optional EasyStar 6-Pillar Safety Frame, Suspended on Silent Blocks |
|
Ground Clearance |
275 mm (10.8 in) |
|
Fuel Tank Capacity |
50 l (13.2 gal) |
|
Wheelbase |
1225 mm (48.2 in) |
|
Width |
1380 mm (54.3 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
