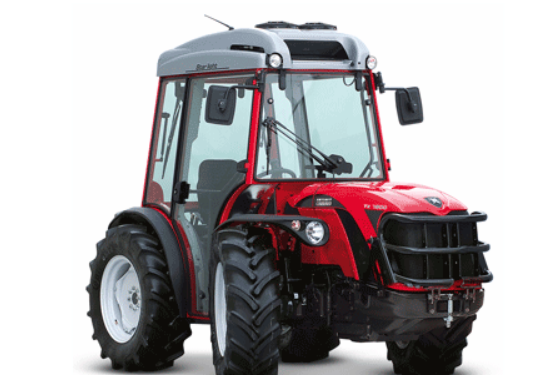

Antonio Carraro TRX 5800 TORA T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TRX 5800 TORA T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, Yanmar Tier 4 Final, Turbo, Water Cooling, Direct Common Rail Injection, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF) |
|
Power |
37.9 kW / 52 hp |
|
Transmission |
Synchronized transmission gearbox with 32 speeds, 16 fwd + 16 rev, and synchronized shuttle reverser, Hydraulic clutch, Permanent four-wheel drive |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four equal wheel drive – Front & rear final drive |
|
Differential Lock |
Electro-hydraulic front/rear differential lock |
|
Brakes |
Hydraulic rear oil bath double disc brakes, Emergency and parking brake band type on transmission with integrated mechanical SUPERBRAKE, Steering brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 7.50-16 (adjustable rims), Rear: 7.50-16 (adjustable rims) |
|
Minimum External Width |
46.9 in (210/95 R18 tires) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e independent and ground speed with progressive hydraulic engagement, Start inhibit switch on shuttle reverser, PTO selector, seat, clutch, and parking brake |
|
Hydraulic System |
Hydraulic power steering with Load Sensing system – 2 DA cylinders, Rear hydraulic remotes with 1 DA valve w/float, 1 oil reflow (total 3 quick couplings), Max flow rate 9 g/min |
|
3-pt arms |
3-pt arms with side stabilizers cat. 1, Lifting capacity 4180 lbs |
|
Towing Device |
Front towing device, Swinging drawbar |
|
Frame |
Full chassis with oscillation system Actio®, Platform chassis on Silent-block, Reversible driving position, new position of the gearshift levers (patented) |
|
Driving Comfort |
Digital multifunctional dashboard with color display, Forward foldable front safety roll bar (ROPS) with facilitator suitable for beacon light attachment, Adjustable padded ergonomic seat with seat belts, Horn, lighting equipment, electric power socket and plug, 3-way socket and rear 7-way trailer socket, 2 Rear-view mirrors, Adjustable Steering Column, battery isolation switch |
|
Weight |
3850 lb |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
