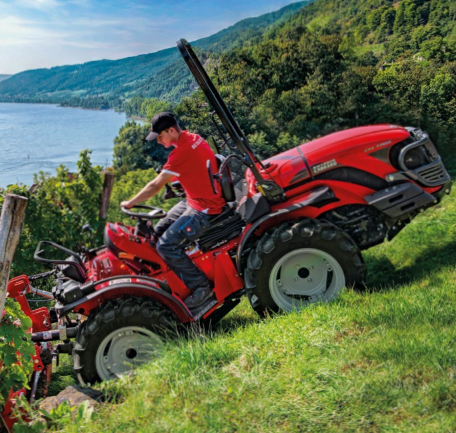

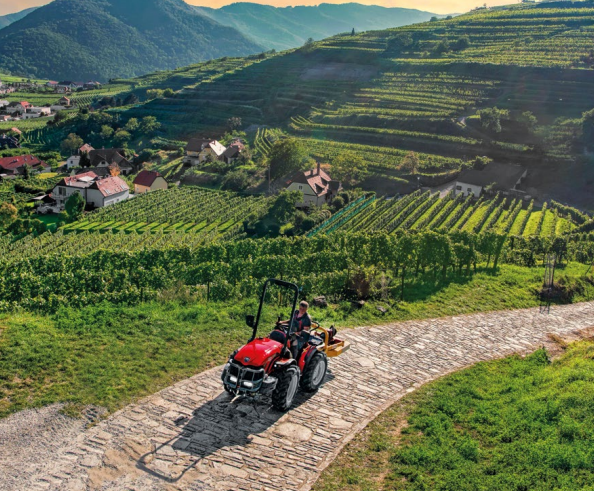

Antonio Carraro TRX 5800 – 4WD Utility Tractor for Vineyards and Haymaking
Specifications
|
Specification |
Details |
|
Tractor Model |
TRX 5800 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Mountain Haymaking |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 2091 cm³, Common Rail Direct Injection, Supercharged, Liquid Cooled, Stage 5 |
|
Maximum Horsepower |
51.5 HP (37.9 kW) @ 2600 RPM |
|
Maximum Torque |
170 Nm @ 1690 RPM |
|
Transmission Type |
S90, 16 Forward + 16 Reverse, Synchronized, Synchronized Shuttle, RGS™ Reversible Drive System |
|
Clutch |
Hydraulic with Wear Compensation |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Oil-Immersed Dual Disc Brakes, Hydraulic Control, Integrated Mechanical Superbrake, Belt Brake on Transmission for Parking |
|
Differential Lock |
Front: Mechanical with Foot Pedal, Automatic Disengagement; Rear: Electro-Hydraulic |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
260/70R16 |
|
Tyre Size (Optional) |
280/70R18, 380/60-15, 320/65R18, 7.50X16, 210/95R18, 250/80R18, 29X12.50-15, 31X15.50-15, 33X15.50-15 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E or 540/1000 RPM, Progressive Electro-Hydraulic Engagement, Synchronized Groundspeed |
|
Hydraulic System |
Load Sensing, 37 l/min (Optional 53 l/min), 1 Double-Acting Remote Valve with Float, 3 Rear Hydraulic Couplers (Optional 11 Couplers: 5 Double-Acting, 1 Float, 1 Oil Return), Hydraulic Remote Control (Optional) |
|
Rear 3-Point Hitch |
Category 1, 2190 kg (4828 lb) Capacity, Oscillating Lift Arms, Lateral Stabilizer Bars, Optional Draft Control, Optional Uniflex® Suspension |
|
Steering |
Steering, Tilting Steering Wheel, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Color Display, Rear-View Mirror, Optional LED Work Lights (2 Front + 2 Rear) |
|
Weight |
1875-2015 kg (4134-4442 lb, Roll-Bar); 2025-2165 kg (4464-4773 lb, Cab) |
|
Cab Options |
Optional REDCab, 6 Pillars, Soundproofed, Air-Conditioned, 360° Visibility, Front/Rear Wipers and Washers, USB Connection |
|
Ground Clearance |
259-375 mm (10.2-14.8 in, Depending on Tyres) |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Wheelbase |
1210 mm (47.6 in) |
|
Width |
985-1415 mm (38.8-55.7 in) |
