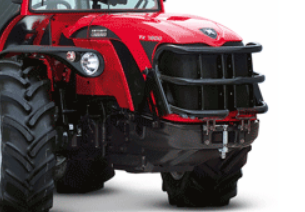

Antonio Carraro TRG 8900 R T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TRG 8900 R T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 3769 cm³, Kubota Tier 4 Final, Turbo, Water Cooling, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF) |
|
Power |
54.6 kW / 74.2 hp |
|
Torque Max |
335 Nm @ 1500 RPM |
|
Transmission |
Synchronized gearbox with 32 speeds, 16 fwd + 16 rev, and synchronized shuttle reverser, Hydraulic clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four wheel drive – Front & rear final drive, Electrohydraulic disengagement control for front drive wheels |
|
Differential Lock |
Electrohydraulic front/rear or only rear differential lock |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, independent rear steering brakes; Emergency and parking brake band type on transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 280/85 R20 (adjustable rims), Rear: 320/85 R24 (adjustable rims) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e independent and ground speed with progressive hydraulic engagement, Start inhibit switch on shuttle reverser and PTO selector, seat and clutch |
|
Hydraulic System |
2 Double Acting distributors, 1 Simple Acting distributor, 1 Oil Reflow, 2 Lub. oil pumps, independent Circuit, Hydraulic power lift with draft and position control + damping |
|
Lifting capacity |
5280 lbs |
|
Lift arms |
quick couplings, coupling balls group 2 and connection spring |
|
Towing Device |
Front towing device; Swinging drawbar |
|
Frame |
Platform chassis on Silent-block |
|
Driving Comfort |
Hydraulic steering wheel with through-rod cylinder; Digital multifunctional dashboard with display and diagnostic function; Reversible driving position; Forward foldable front safety roll bar (r.o.p.s.); Adjustable padded ergonomic seat with retractable seat belt; Rear-view mirror; battery isolation switch |
|
Weight with roll bar |
4905/5302 lbs |
|
Weight with cab |
5324/5721 lbs |
|
Rear working light |
standard |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
55.7 in |
