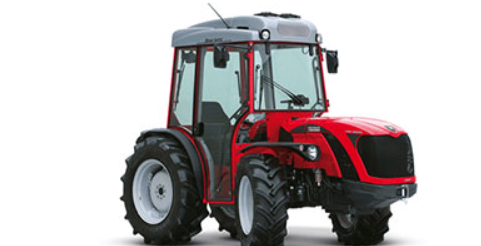

Antonio Carraro TR 7600 Infinity – 4WD Reversible Vineyard Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
TR 7600 Infinity (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler Tier 4 Final, 4 Cylinders, 16 Valves, 2482 cm³, Common Rail Injection, Turbo Intercooler |
|
Maximum Horsepower |
75 HP (55.4 kW) @ 2200 RPM |
|
Maximum Torque |
295 Nm @ 1500 RPM |
|
Transmission Type |
Hydrostatic with Continual Speed Variation, 3 Electric Shift-on-the-Go Ground Speeds, 2 Mechanical Speed Ranges (Work and Travel), Electro-Hydraulic Reverser, Automatic Transmission, Intellifix, Fast Reverse, Dual Memo Cruise Control, 3 Drive Modes, Anti-Stall Functions |
|
Clutch |
Hydraulic |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four Equal Wheel Drive, Electro-Hydraulic Disengagement Control |
|
Braking System |
Hydraulic Front/Rear Oil-Bath Disc Brakes, Independent Rear Steering Brakes, Emergency and Parking Brake Band Type on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
250/80-18 (Adjustable Rims) |
|
Tyre Size (Rear, Standard) |
250/80-18 (Adjustable Rims) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent and Ground Speed, 540/540e RPM with Progressive Electro-Hydraulic Engagement, Settable in Normal or Plus Position |
|
Hydraulic System |
2 Independent Pumps, 2 Double-Acting Distributors (1 Floating), 1 Oil Reflow, 5 Rear Hydraulic Outlets, Hydraulic Power Lift with Adjustable Lift Arms (Category 2 Quick Couplings) |
|
Rear 3-Point Hitch |
Category 2, 5291 lb Capacity |
|
Steering |
Hydraulic with Through-Rod Cylinder, Adjustable Steering Wheel |
|
Electrical System |
Battery Isolation Switch, Digital Multifunctional Dashboard with Color Display, LED, and Diagnosis |
|
Weight |
Shipping: 4861-5104 lb (Roll Bar), 5214-5456 lb (Cab) |
|
Cab Options |
Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized) |
|
Warranty |
2 Years, Extendable to 4 Years |
|
Width |
1379 mm (54.3 in) |
