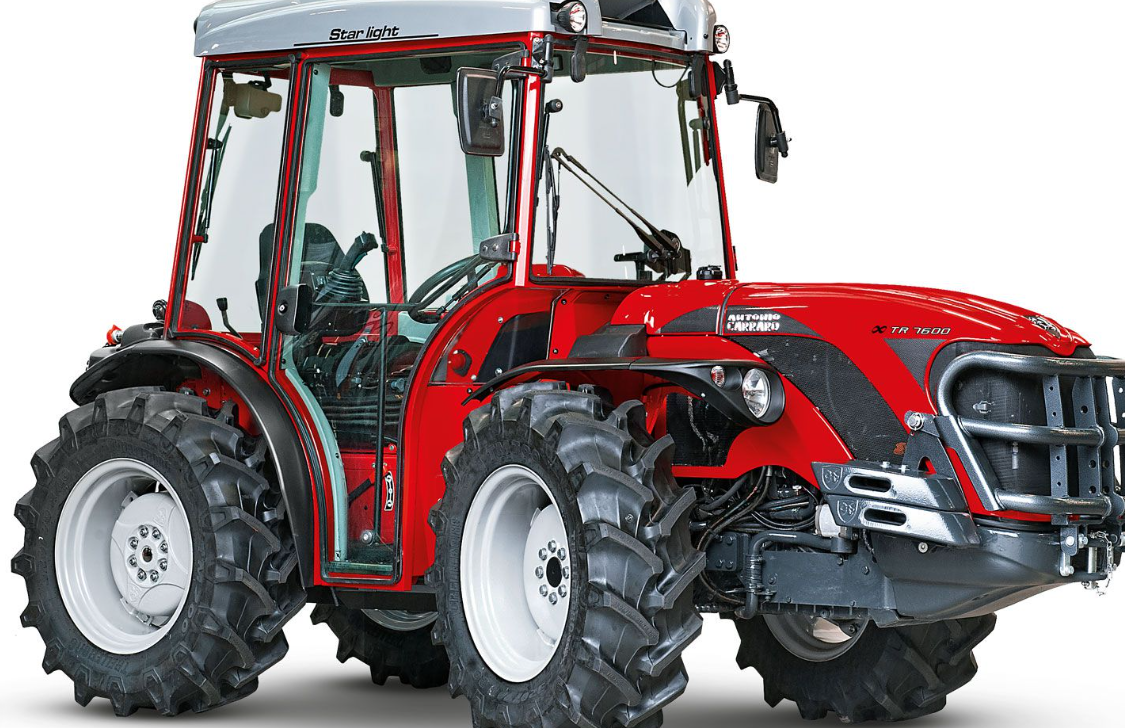

Antonio Carraro TR 7600 Infinity – 4WD Utility Tractor for Vineyards and Municipal Use
Specifications
|
Specification |
Details |
|
Tractor Model |
TR 7600 Infinity (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Row Crops, Urban Green Areas, Verges, Sports Grounds |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler, 4 Cylinders, 16 Valves, 2482 cm³, Common Rail Direct Injection, Turbo with Intercooler, Stage 5 |
|
Maximum Horsepower |
75 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
310 Nm @ 1500 RPM |
|
Transmission Type |
Hydrostatic Stepless, 3 Hydraulic Ratios, 2 Mechanical Ranges (0-15 km/h, 0-40 km/h), Electro-Hydraulic Shuttle, RGS™ Reversible Drive System, Instant Cruise Control, Memo Cruise Control, Dual Memo Cruise Control, Intellifix, Fast Reverse, Drive Mode |
|
Clutch |
Hydrostatic Transmission |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric, 15° Longitudinal Oscillation |
|
Differential Lock |
Hydraulic Control, Simultaneous Front and Rear or Rear Only |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Oil-Immersed Disc Brakes (Front and Rear), Rear Steering Brakes, Transmission Band Brake for Emergency and Parking, Optional Superbrake System |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
250/80-18 |
|
Tyre Size (Optional) |
300/80-15.3, 320/65 R18, 300/70 R20, 280/70 R18, 320/70 R20, 320/70 R20 Garden Pro, 400/55-17.5 Terra Twin, 31x15.50-15 Terra, 425/55 R17 AC 70 G, 340/65 R18, 380/70-15, 450/55 R17 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Optional 540/1000 RPM, Progressive Electro-Hydraulic Engagement, Synchronized Groundspeed |
|
Hydraulic System |
2 Independent Pumps, 2 Double-Acting Remote Valves (1 Float), 1 Single-Acting, 1 Oil Return, 6 Rear Hydraulic Couplers, Optional Electro-Proportional JPM Joystick, Up to 12 Rear Couplers, Optional 2 Front Couplers |
|
Rear 3-Point Hitch |
Category 2, 2400 kg (5291 lb) Capacity, Adjustable Lift Arms with Sliding Quick Hitches, Optional Uniflex Suspension, Optional Electronic Draft and Position Control |
|
Steering |
Hydraulic with 2 Pistons, RGS™ Reversible Drive System |
|
Electrical System |
Multifunctional Digital Display, Battery Disconnect, Safe Start System, Adjustable Rear Work Light, Optional LED Work Lights (2 Front + 2 Rear) |
|
Weight |
2205-2315 kg (4861-5104 lb, Roll-Bar); 2365-2475 kg (5214-5456 lb, StarLight Cab) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Opening Front and Rear Windows, Electric Wipers and Washers, 360° Visibility, Suspended on Silent Blocks, Optional Active Carbon Filters |
|
Ground Clearance |
250-345 mm (9.8-13.6 in, Depending on Tyres) |
|
Fuel Tank Capacity |
50 l (13.2 gal) |
|
Wheelbase |
1190 mm (46.9 in) |
|
Width |
1060-1826 mm (41.7-71.9 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
