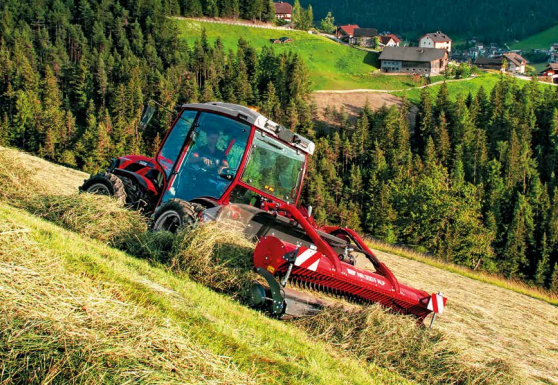

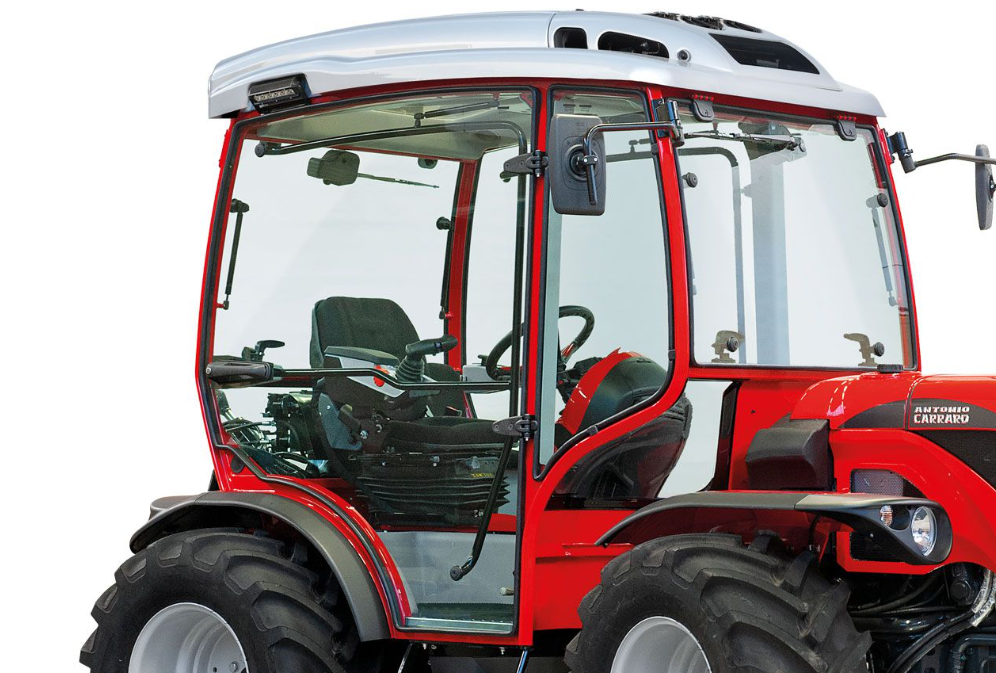

Antonio Carraro TONY 8900 TTR T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TONY 8900 TTR T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
KUBOTA, 4 Cylinders, 16 Valves, 3769 cc, Stage 5, Common Rail, Turbo, Water Cooling |
|
Power |
54.6 kW / 74.2 hp @ 2400 rpm |
|
Max Torque |
305 Nm @ 1500 rpm |
|
Transmission |
Hybrid mechanical-hydrostatic transmission, 4 robotic ranges with “SIM” (Shift In Motion) technology, Continuous speed variation in both directions from 0 to 40 km/h, “Automotive” device, Electronic speed and engine control (RPM recall, Cruise Control, Combined, IntelliFix, Diagnostics) |
|
Frame |
ACTIO™ integral oscillating frame, RGS™ reversible drive system, Steering wheels, Four equal-size driving wheels, Front and rear final drives |
|
Differential Lock |
Front/rear differential lock, simultaneous or rear only, with electro-hydraulic control |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-immersed discs front and rear with hydraulic control, steering brakes on rear, Automatic oil-immersed multi-disc transmission brake for emergency and parking |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Front/Rear: 250/80-18, 300/80-15.3, 340/65 R18, 31x15.50-15 Terra, 400/55-17.5, 425/55 R17, 440/50 R17 |
|
Minimum External Width |
1051 mm (250/80-18), 1154 mm (300/80-15.3), 1140 mm (340/65 R18), 1444 mm (31x15.50-15 Terra, 400/55-17.5), 1398 mm (425/55 R17, 440/50 R17) |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Independent 540/540E rpm with progressive electro-hydraulic engagement, synchronised, selector inside the cab, Start inhibit switch on shuttle reverser, PTO selector and seat |
|
Hydraulic System |
Lift controlled by the electro-proportional “JMC” joystick, 4 double-acting remote valves of which 2 floats + 1 single-acting continuous flow, free discharge, hydraulic motor drainage (total 11 quick couplers), Hydraulic flow rate up to 52 l/min (optional) |
|
Rear Power Lift |
Rear power lift with 3-point linkage with Uniflex hydraulic suspension, Adjustable lift arms with category 2 quick hitches, Lifting capacity 2400 kg, Operating Pressure 160 bar |
|
Towing Device |
Height-adjustable rear tow hook, Front tow hook |
|
Platform |
Suspended on Silent Block, Forward foldable front safety roll bar with facilitator |
|
Weight |
With cab: 2700–2950 kg |
|
Tank Capacity |
50 litres |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
