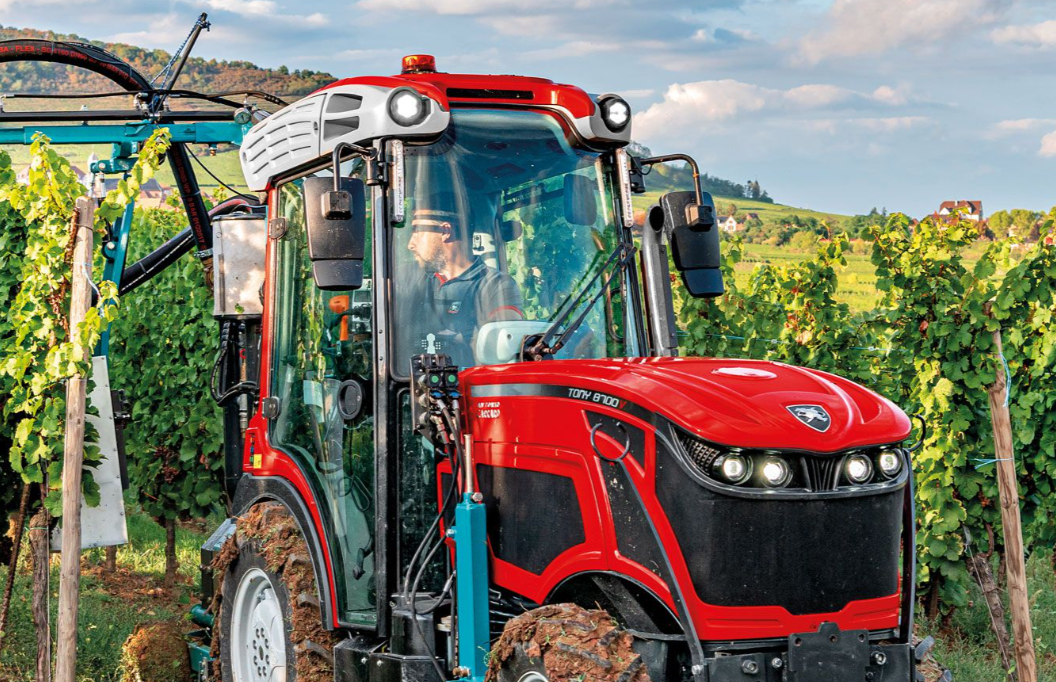

Antonio Carraro TONY 8700 V T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TONY 8700 V T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
DEUTZ, 4 Cylinders, 16 Valves, 2900 cc, Stage 5, Common Rail, Turbo Intercooler, Water Cooling |
|
Power |
55.4 kW / 75.3 hp @ 1400 to 2200 rpm |
|
Max Torque |
375 Nm @ 1400 rpm |
|
Transmission |
MECHANICAL - HYDROSTATIC HYBRID |
|
Frame |
Frame with oscillating front axle, 55° steering front wheels, Four-wheel drive (front drive wheels can be disengaged) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Hydraulic service brake system with oil-immersed double discs, pedal operated and acting on rear wheels, integral braking system with automatic engagement of four-wheel drive, Oil-immersed multidisc parking brake with automatic engagement system |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 240/70 R16, Rear: 320/70 R20 |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Rear, independent 2-speed 540 and 540E rpm |
|
Hydraulic System |
PLUS hydraulic system comprised of: 9 independent double-acting hydraulic couplers with programmable functions and operating parameters, Variable displacement pump and auxiliary pumps for high flow rates at low engine revs |
|
Rear Lift |
Adaptive rear lift, Hydraulically controlled lateral movement and oscillation of lift unit, Lifting capacity 2700 kg |
|
Towing Device |
Fixed EU-type rear tow hitch SLIDER (ex cat. C) |
|
Weight |
With Cab: 2900÷3066 kg |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
