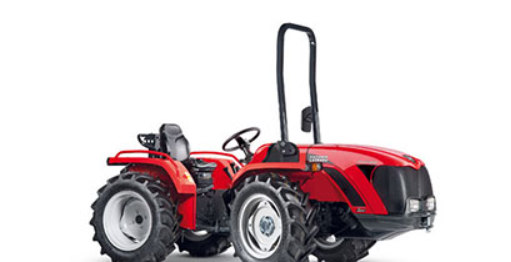

Antonio Carraro TN 5800 Tora – 4WD Vineyard Tractor

Images:

1

2

Specifications

Specification	Details
Tractor Model	TN 5800 Tora (4WD)
Vehicle Category	Vineyard Tractor
Fuel Type	Diesel
Application	Vineyards, Orchards, Narrow Crop Rows

Frame & Drivetrain

Specification	Details
Engine	Yanmar Tier 4, 4 Cylinders, Direct Common Rail Injection, Turbo Induction
Maximum Horsepower	51.5 HP @ 2200 RPM
Transmission Type	Synchronized, 16 Forward + 16 Reverse with Synchronized Shuttle Reverser, Hydraulic Clutch
Clutch	Hydraulic

Suspension & Brakes

Specification	Details
Front Axle	Four Equal Wheel Drive, Horizontal Final Rear Drive, Electro-Hydraulic Differential Lock
Braking System	Hydraulic Rear Oil-Bath Double-Disc Brakes, Steering Brakes, Emergency and Parking Brake Band Type on Transmission

Wheels & Tyres

Specification	Details
Tyre Size (Front, Standard)	7.50-16 (Adjustable Rims)
Tyre Size (Rear, Standard)	7.50-16 (Adjustable Rims)
Wheel Size	Front/Rear Steel Flanges (Standard)
Width	1161 mm (45.7 in, with 210/95 R18 Tires)

Components & Features

Specification	Details
PTO Type	Independent and Ground Speed, 540/540e RPM with Progressive Hydraulic Engagement
Hydraulic System	Load-Sensing Circuit, 1 Double-Acting Distributor with Floating Position, 1 Oil Reflow, 3 Rear Quick Couplings, 10.0 g/min Max Flow Rate, Hydraulic Power Lift with Oscillating Arms and Side Stabilizers (Category 1)
Rear 3-Point Hitch	Category 1, 4188 lb Capacity
Steering	Hydraulic Power-Steering with Load-Sensing System, 2 Double-Acting Cylinders, Adjustable Steering Column
Electrical System	Battery Isolation Switch, Digital Multifunctional Dashboard with Color Display, Horn, Lighting Equipment, 3-Way Socket, Rear 7-Way Trailer Socket
Weight	Not Specified
Cab Options	Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized)
Warranty	2 Years, Extendable to 4 Years

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
