Specification

Details

Vehicle Model

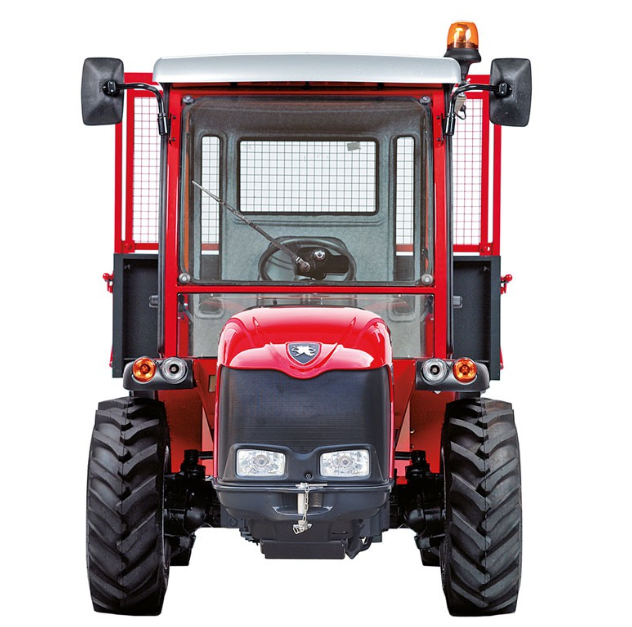

Tigrecar 6800 (4WD)

Vehicle Category

Utility Transporter

Fuel Type

Diesel

Application

Mediterranean Agriculture, Forestry, Municipal Tasks, Construction

Specification

Details

Engine

Yanmar, 4 Cylinders, 16 Valves, 2091 cm³, Direct Injection Common Rail, Turbo, Stage V

Maximum Horsepower

66 HP (48.5 kW) @ 2600 RPM

Maximum Torque

210 Nm @ 1690 RPM

Transmission Type

Mechanical, 8 Forward + 8 Reverse, Optional 12 Forward + 12 Reverse

Clutch

Mechanic Control, Optional PTO Clutch

Frame

ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric

Differential Lock

Rear, Hydraulic Control, Front-Wheel Drive Disengagement

Specification

Details

Braking System

Front/Rear Oil-Immersed Disc Brakes with Hydraulic Control, Acting on All 4 Wheels, Transmission-Mounted Band Brake with Mechanical Control, Optional Superbrake System

Specification

Details

Tyre Size (Standard)

10.0/75-15.3 in

Tyre Size (Optional)

280/70 R16, 10.0/75-15.3 MP567

Specification

Details

PTO Type

Rear, Standard 540 RPM, Synchronized with All Gearbox Speeds, Optional 540 High/1000 Low

Hydraulic System

Optional 4 Quick Couplers with 1 Floating Double-Acting + 1 Continuous Flow Double-Acting

Cargo Bed

Short Wheelbase: 2400x1570x450 mm, Long Wheelbase: 2600x1570x450 mm, 4500 kg Capacity, Automatic Top-Hinged Rear Opening, Safety Strut, Anchoring Winches, Removable Rear Posts

Steering

Fixed Steering Wheel, Optional Height- and Tilt-Adjustable

Electrical System

Single-Pole Socket, 7-Pin Rear Socket, Battery Isolator, Optional Front/Rear LED Work Lights and Flashing LED Light

Weight

1900-2450 kg (4189-5401 lb, Short or Long Wheelbase)

Cab Options

Open Cab with 4-Post Frame, Front Windscreen with Wiper, Optional Closed Cab with Heating

Ground Clearance

227-242 mm (8.9-9.5 in)

Wheelbase

Short Wheelbase: 2530 mm (99.6 in), Long Wheelbase: 2750 mm (108.3 in)

Width

1148-1568 mm (45.2-61.7 in)

Warranty

2 Years, Extendable to 4 Years (EXG Maximum Protection)
