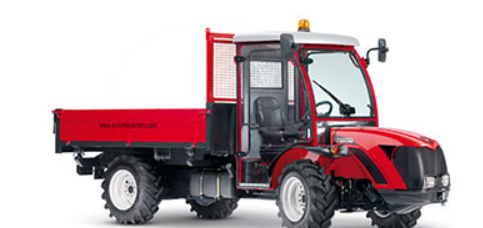

Antonio Carraro TIGRECAR 5800 PL – 4WD Transporter Tractor for Agricultural Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TIGRECAR 5800 PL (4WD) |
|
Vehicle Category |
Transporter Tractor |
|
Fuel Type |
Diesel |
|
Application |
Transport Tasks in Vineyards, Orchards, Nurseries |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, Yanmar Stage V, Turbo, Water Cooling, Direct Injection |
|
Power |
51.5 HP / 52 cv |
|
Transmission |
Gearbox with 16 speeds, 8 fwd + 8 rev, Start inhibit switch on shuttle reverser, Hydraulic disengagement control for front drive wheels |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD - Front & rear final drive |
|
Differential Lock |
Rear differential lock with hydraulic engagement |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, Emergency and parking brake band type on transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 10.0/75-15.3, Rear: 10.0/75-15.3 |
|
Minimum External Width |
58 in (tires 10.0/75-15.3) |
|
Width with Rear Box |
59.1 in |
Components & Features
|
Specification |
Details |
|
PTO |
Rear standard PTO 540 rpm and ground speed PTO, Start inhibit switch on shuttle reverser |
|
Hydraulic System |
Auxiliary hydraulic system consisting of 1 simple acting distributor for movement of rear box with safety devices |
|
Towing Device |
Height adjustable rear towing device "EEC" type |
|
Frame |
Platform chassis on Silent-block, 4-post-safety-frame with roof |
|
Driving Comfort |
Rotating beacon, Horn, lighting equipment, electric power socket and plug, Unipolar socket in the dashboard and seven way trailer socket, Adjustable padded seat, Battery isolation switch, Non-adjustable steering wheel |
|
Weight |
GVWR 9921 lb |
|
Rear Box |
102.36x61.8x17.7 in, 13 inch tubular sides, Rear opening with upper joint, Security support, Rear removable columns |
|
Warranty |
2 years warranty |
|
Wheelbase |
108.26 in |
