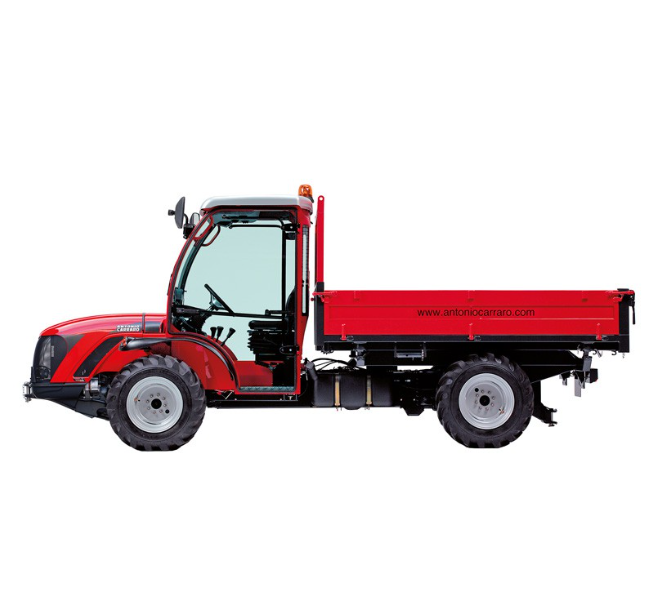

Antonio Carraro Tigrecar 3200 GST – 4WD Utility Transporter for Mountain Work
Specifications
|
Specification |
Details |
|
Vehicle Model |
Tigrecar 3200 GST (4WD) |
|
Vehicle Category |
Utility Transporter |
|
Fuel Type |
Diesel |
|
Application |
Mountain Work, Agriculture, Forestry, Municipal Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 3 Cylinders, 1116 cm³, Indirect Injection, Stage V |
|
Maximum Horsepower |
25.7 HP (18.9 kW) @ 3000 RPM |
|
Maximum Torque |
67.8 Nm @ 2000 RPM |
|
Transmission Type |
Mechanical, 8 Forward + 4 Reverse |
|
Clutch |
Mechanic Control |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Isodiametric |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Mechanical Drum Brakes, Hydraulic Pedal Control, Dual-Circuit System, Acting on All 4 Wheels, Lever-Operated Parking Brake on Rear Wheels |
|
Differential Lock |
Rear, Mechanical Control, Front-Wheel Drive Disengagement |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Standard) |
8.0/75-15 in |
|
Tyre Size (Optional) |
7.00-12 in |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Standard 540 RPM, Synchronized with All Gearbox Speeds |
|
Hydraulic System |
Tipping Bed with Three-Way Hydraulic Tipping, Dual Hydraulic Cylinder System |
|
Cargo Bed |
2200x1400x300 mm, 2800 kg Capacity, Protective Grille, Anchoring Winches, Three-Side Tipping |
|
Steering |
Hydraulic Steering |
|
Electrical System |
Digital Multifunction Display, Single-Pole Power Socket, 7-Pin Socket, Battery Isolator, Rear-View Mirrors, Rev Counter |
|
Weight |
1300 kg (2866 lb, Roll-Bar) |
|
Cab Options |
Roll-Bar Only |
|
Ground Clearance |
216-233 mm (8.5-9.2 in) |
|
Wheelbase |
2110 mm (83.1 in) |
|
Width |
1110-1860 mm (43.7-73.2 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
