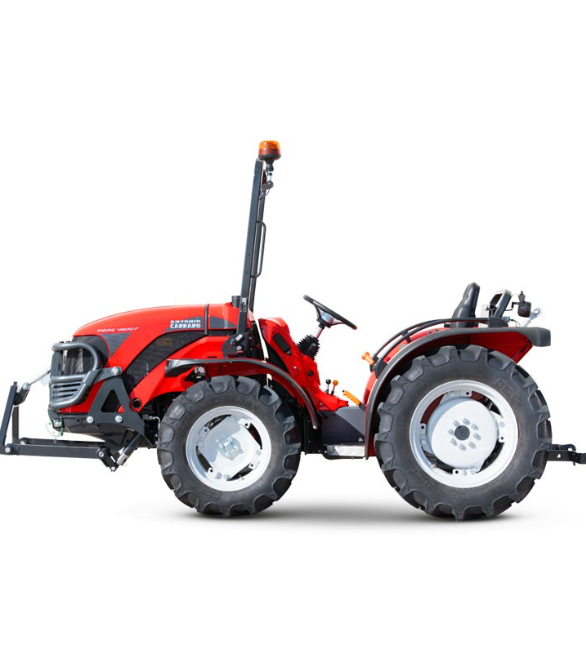

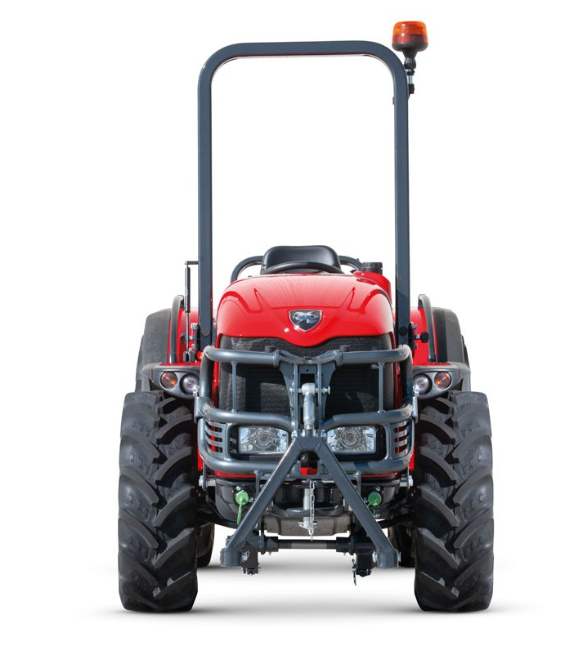

Antonio Carraro Tigre 4800 F – 4WD Utility Tractor for Specialized Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
Tigre 4800 F (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialized Agriculture, Grounds Care, Construction, Earthmoving |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 3 Cylinders, 1567 cm³, Direct Injection, Stage 5 |
|
Maximum Horsepower |
38.7 HP (28.5 kW) @ 2800 RPM |
|
Maximum Torque |
126 Nm @ 1690 RPM |
|
Transmission Type |
Easy-Shift Mechanical, 8 Forward + 4 Reverse |
|
Clutch |
Mechanic Control |
|
Frame |
ACTIO™ Integral Oscillating Frame, Steering, Differentiated Wheels |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Service and Parking Brakes, Steering Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Standard) |
7.50-16 / 9.5 R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Standard 540 RPM, Synchronized with All Gearbox Speeds |
|
Hydraulic System |
Rear with 3-Point Linkage, Category 1 and 1N |
|
Rear 3-Point Hitch |
Category 1 and 1N, 1000 kg (2205 lb) Capacity, Adjustable Top Link and Lift Rods |
|
Steering |
Hydraulic with Load Sensing System |
|
Weight |
1250 kg (2756 lb, Roll-Bar) |
|
Ground Clearance |
270 mm (10.6 in) |
|
Fuel Tank Capacity |
30 l (7.9 gal) |
|
Wheelbase |
1240 mm (48.8 in) |
|
Width |
1075 mm (42.3 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
