Specification

Details

Tractor Model

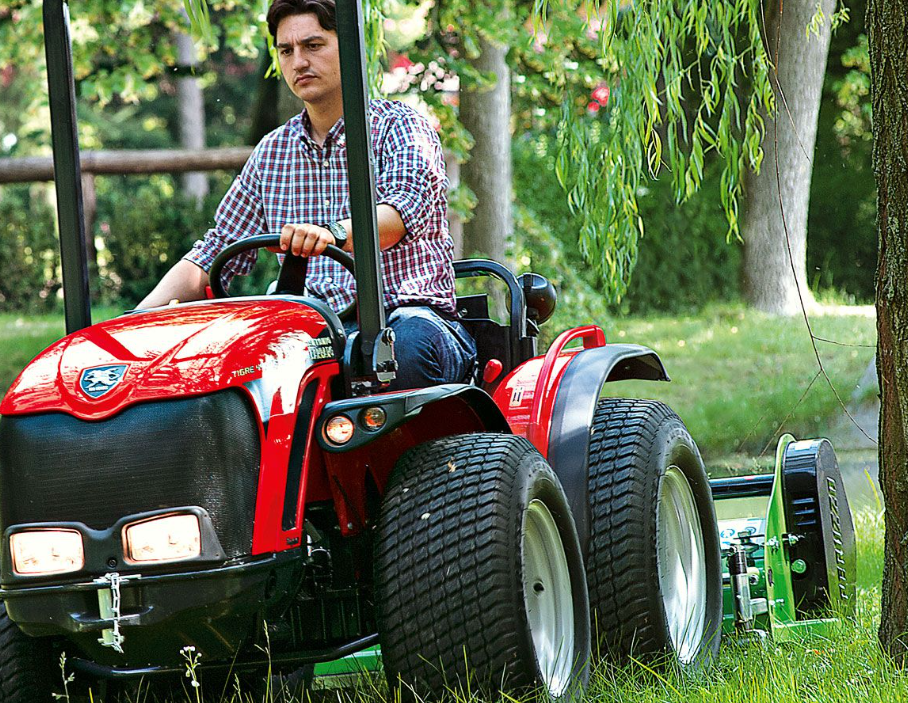

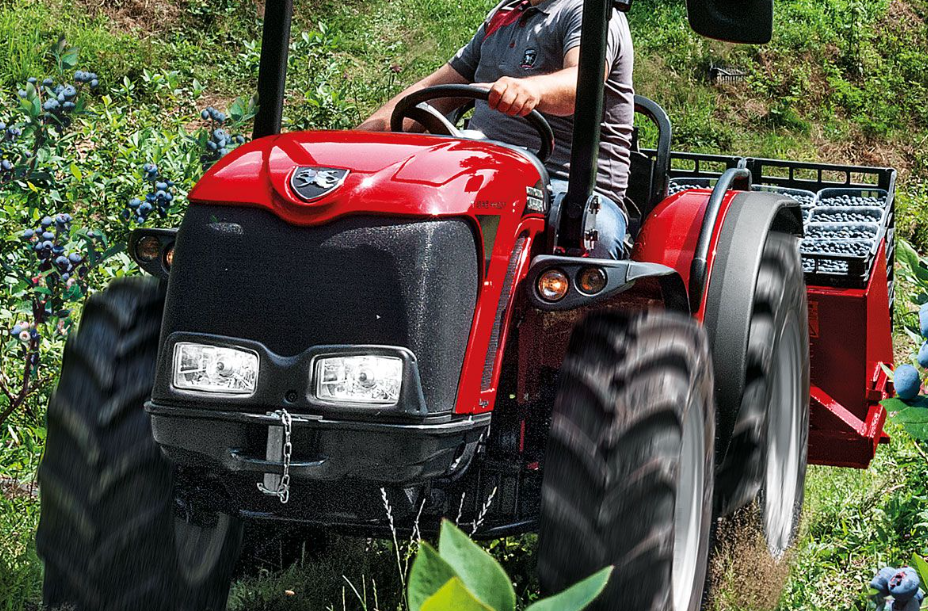

Tigre 3800F (4WD)

Vehicle Category

Utility Tractor

Fuel Type

Diesel

Application

Specialized Farming, Ground Care, Worksites, Earth Moving

Specification

Details

Engine

Yanmar, 3 Cylinders, 1331 cm³, Direct Injection, Natural Aspiration, Stage 5

Maximum Horsepower

25.7 HP (18.9 kW) @ 2800 RPM

Maximum Torque

86.8 Nm @ 1200 RPM

Transmission Type

Mechanical, 8 Forward + 4 Reverse, Assisted Changes

Clutch

Dry Single-Disk, Optional Multi-Disk in Oil Bath with Independent Engagement/Disengagement

Frame

ACTIO™ Full Chassis with Oscillation, Steering, Differentiated Wheels

Differential Lock

Front and Rear, Mechanical Disengagement Control for Front Drive Wheels

Specification

Details

Braking System

Floating Drum Service Brakes on Rear Wheels, Parking Brakes, Steering Brakes

Specification

Details

Tyre Size (Front/Rear Standard)

7.50x16 in / 250/85 R20

Tyre Size (Front/Rear Optional)

29x12.50-15 / 36x13.50-15, 260/70 R16 / 300/70 R20

Specification

Details

PTO Type

Rear, Standard 540 RPM, Synchronized with All Gear Speeds, Optional Independent Engagement/Disengagement

Hydraulic System

30 l/min Flow Rate, Optional Single- and Double-Acting Distributors with Floating Position, Up to 4 Hydraulic Couplers

Rear 3-Point Hitch

Category 1 and 1N, 1000 kg (2205 lb) Capacity, Adjustable Tie-Rods, Optional Draft and Position Control

Steering

Hydraulic Power-Steering with Load Sensing System, Optional Adjustable Steering Wheel

Electrical System

Backlit Analogue/Digital Dashboard, Fuel Level and Water Temperature Gauges, Indicator LEDs, Digital PTO Rev Display, Acoustic and Visual Alarms, Halogen Headlamps, 12V 7-Pole/Single-Pole Outlet, Claxon

Weight

1250 kg (2756 lb, Roll-Bar)

Ground Clearance

275 mm (10.8 in)

Fuel Tank Capacity

30 l (7.9 gal)

Wheelbase

1085 mm (42.7 in)

Width

950-1390 mm (37.4-54.7 in)

Warranty

2 Years, Extendable to 4 Years (EXG Maximum Protection)
