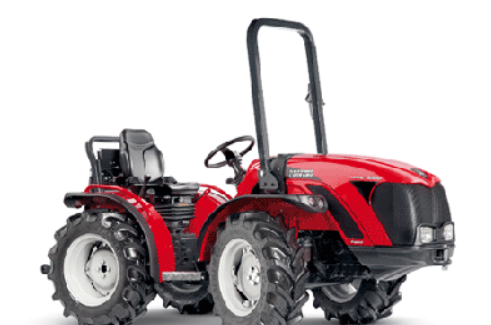

Antonio Carraro TIGRE 3800 T4 – 4WD Specialty Nursery Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TIGRE 3800 T4 (4WD) |
|
Vehicle Category |
Specialty Nursery Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Nursery, Vineyards, Orchards, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, Yanmar Tier 4 Final, Water Cooling |
|
Power |
25 hp |
|
Transmission |
Gearbox with 12 speeds, 8 fwd + 4 rev, Gear and speed range control on the right side |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four wheel drive |
|
Differential Locks |
Engagement independent front and rear differential locks |
|
Brakes |
Rear axle and parking handbrake |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 7.50-16, Rear: 7.50-16 |
|
Minimum External Width |
39.5 in (with tires 6.00-16) |
Components & Features
|
Specification |
Details |
|
PTO |
Rear standard PTO 540 rpm and ground speed PTO with mechanic control |
|
Hydraulic System |
Hydraulic rear power lift with 3-point hitch (2 single-acting cylinders - capacity 1874 lb) |
|
Lift arms |
Fixed with coupling balls cat. 1-1N and connection spring |
|
Towing Device |
Front towing device embedded in the bumper fusion; Rear Drawbar |
|
Frame |
Comfort platform extra-thick mat; wide side holder pocket; fender with handles |
|
Driving Comfort |
Hydraulic power steering; Rear foldable safety roll-bar; Adjustable padded seat; Safety belts; Analogic-digital multifunctional device with engine/PTO RPM counter, tachometer, hour counter, fuel level, cooler temperature, acoustic and visual alarms; Rear-view mirror; Horn, light equipment, unipolar socket, seven way trailer socket, brake lights and position indicator; Halogen headlights |
|
Weight |
2315 lb |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
