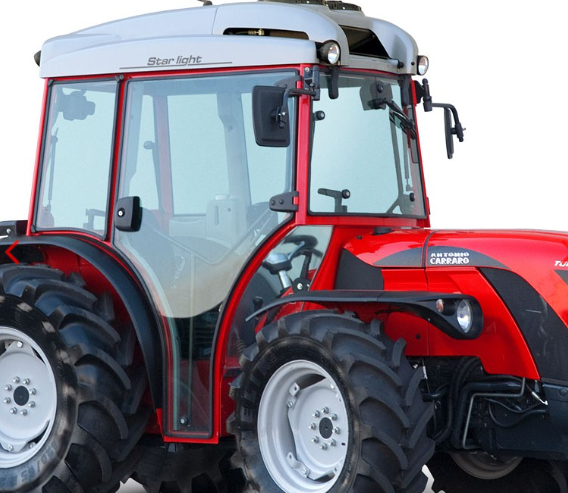

Antonio Carraro TGF 9400 S – 4WD Utility Tractor for Orchards and Slopes
Specifications
|
Specification |
Details |
|
Tractor Model |
TGF 9400 S (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Narrow Crop Rows, Sloping Grounds |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, Turbo Intercooler, 2970 cm³, Direct Injection, Stage 3A |
|
Maximum Horsepower |
87 HP (64 kW) @ 2600 RPM |
|
Maximum Torque |
380 Nm @ 1000 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter |
|
Clutch |
Mechanic Control, No Adjustment Required |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Differentiated Wheels, 15° Longitudinal Oscillation |
|
Differential Lock |
Hydraulic Control, Front and Rear |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Standard) |
8.25-16 / 11.2 R20 |
|
Tyre Size (Front/Rear Optional) |
250/80-16 / 320/70 R20, 300/80-15.3 / 360/70 R20, 280/70-18 / 360/70 R20, 320/70 R20 / 360/70 R24 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
1 Double-Acting Distributor with Oil Return, 160 bar Operating Pressure |
|
Rear 3-Point Hitch |
Category 1 and 2, 2300 kg (5071 lb) Capacity, Mixed Draft and Position Control |
|
Steering |
Hydraulic with 2 Pistons |
|
Electrical System |
Multifunctional Digital Instrument, Anti-Glare Backlit Screen, Battery, Electrical Power Point, Safety Starting Device on Inverter and PTO |
|
Weight |
2100-2280 kg (4630-5027 lb, Roll-Bar); 2210-2390 kg (4872-5269 lb, StarLight/Protector S Cab) |
|
Cab Options |
Optional StarLight Cab, Soundproofed, Air-Conditioned, Opening Front and Rear Windows, Roof Window; Optional Protector S Super-Low Profile Cab (1740-1800 mm Height), Glass Doors |
|
Ground Clearance |
255-330 mm (10.0-13.0 in, Depending on Tyres) |
|
Fuel Tank Capacity |
60 l (15.9 gal) |
|
Wheelbase |
1462 mm (57.6 in) |
|
Width |
1385-1475 mm (54.5-58.1 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
