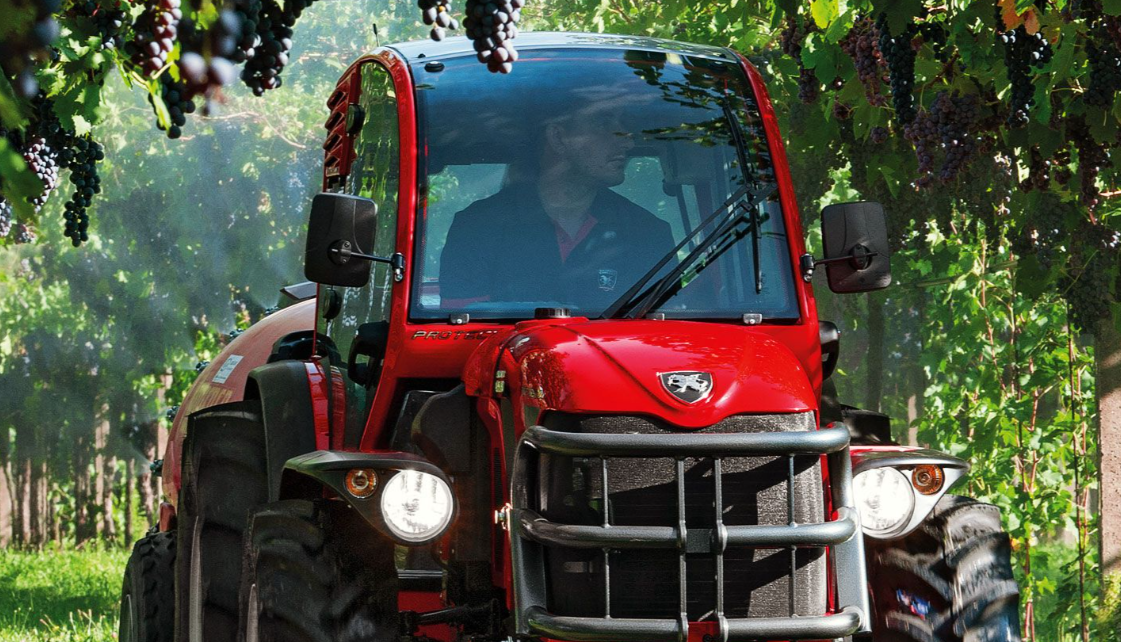

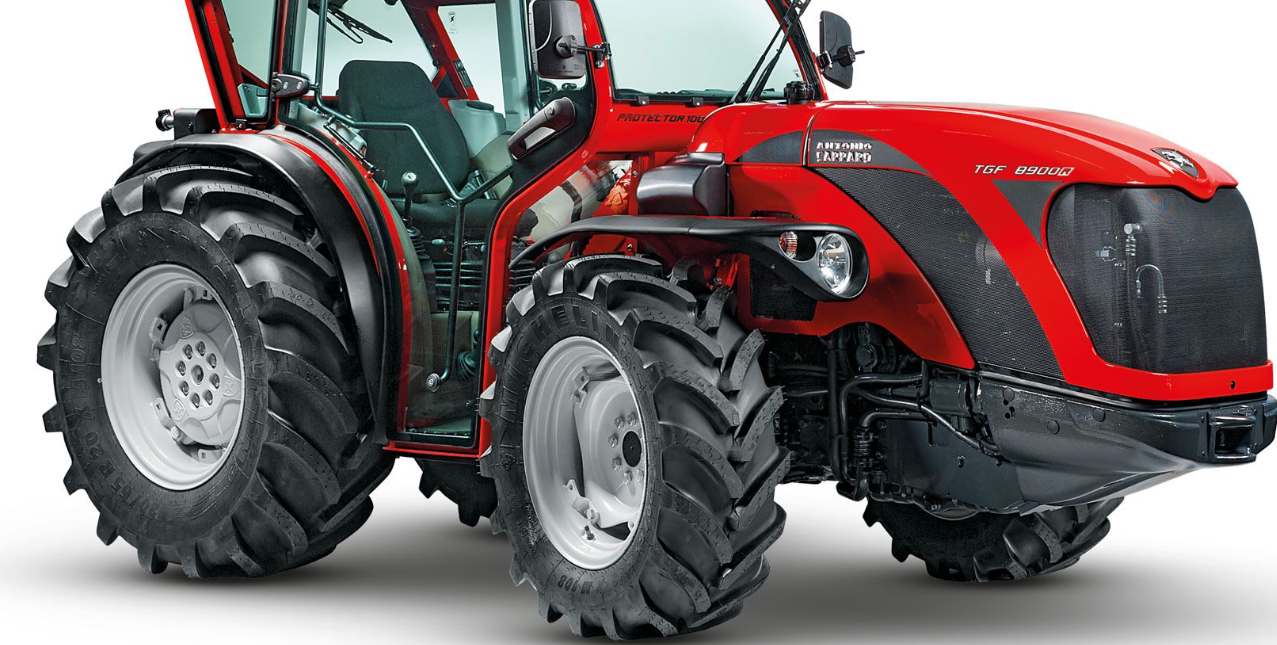

Antonio Carraro TGF 8900 R T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TGF 8900 R T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Greenhouses, Narrow Crop Rows, Extreme Terrains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
KUBOTA Diesel Direct Injection, 4 Cylinders, 16 Valves, 3769 cc, Stage 5, Common Rail, Turbo, Water Cooling |
|
Power |
54.6 kW / 74.2 hp @ 2400 rpm |
|
Torque Max |
305 Nm @ 1500 rpm |
|
Transmission |
32-speed synchronised gearbox: 16 forward + 16 reverse gears with synchronised shuttle, Central tunnel free of levers, with gear lever located to the right of the steering wheel and shuttle control on the right of the driving position, Cruise control |
|
Transmission Clutch |
Oil-immersed multiplate clutch with progressive electro-hydraulic engagement |
|
Drive Disengagement |
Electrohydraulic control on the front |
|
Chassis |
ACTIO™ Full chassis with oscillation, Steering wheels, 4 unequal wheel drive, Front and rear final drive |
|
Differential Lock |
Differential lock on rear axle or both axles with electrohydraulic control |
Suspension & Brakes
|
Specification |
Details |
|
Steering |
Hydraulic steering wheel with through-rod cylinder |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, Independent hydraulic rear steering brakes, Automatic emergency and parking oil bath brakes on transmission |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Front: 8.25-16, 250/80-16, 7.50 R18, 250/80-18, 280/70 R18, 260/70 R16, 320/65 R18, 320/70 R20; Rear: 280/85 R20, 320/70 R20, 320/85 R20, 360/70 R20, 340/65 R18, 420/65 R20, 360/70 R24, 420/65 R24; Adjustable wheel discs |
|
Minimum External Width |
1050 mm (8.25-16 - 280/85 R20), 980 mm (250/80-16 - 320/70 R20, 7.50 R18 - 320/85 R20, 250/80-18 - 320/85 R20), 1060 mm (280/70 R18 - 360/70 R20), 1020 mm (260/70 R16 - 340/65 R18), 1130 mm (320/65 R18 - 420/65 R20), 1120 mm (320/70 R20 - 360/70 R24, 320/70 R20 - 420/65 R24) |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Rear, independent 540/540E rpm, synchronised in all gears, Oil-immersed multiplate clutch with progressive electro-hydraulic engagement, Profile 1” 3/8 with 6 splines with facilitated engagement, Starting with safety systems in accordance with the ‘Mother Regulation’ |
|
Hydraulic System |
3 double-acting remote valves including 1 float + 1 oil return, 2 pumps with independent circuits, Operating Pressure 160 bar |
|
Rear Power Lift |
3-point linkage with Damping function for road transfer, FLM and position and draft control (roll bar version), Maximum lift height setting with position and draft control, Fixed arms with Cat 1 and 2 couplers, Lifting capacity 2400 kg |
|
Towing Device |
Height adjustable rear tow hook, Front tow hook |
|
Platform |
Suspended on Silent Block |
|
Weight |
With roll bar: 2230–2555 kg, With Protector 100 cab: 2360–2585 kg |
|
Tank Capacity |
50 litres |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
