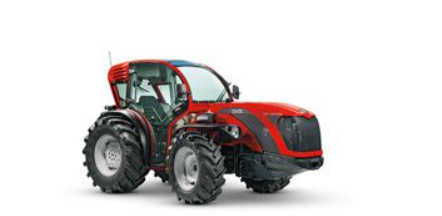

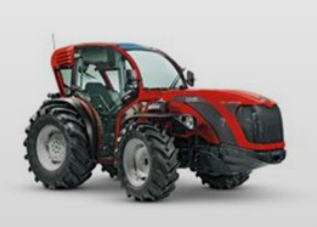

Antonio Carraro TGF 8900 R – 4WD Vineyard Tractor for Precision Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
TGF 8900 R (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota Tier 4 Final, 4 Cylinders, 16 Valves, 3769 cm³, Common Rail Injection, Turbocharged |
|
Maximum Horsepower |
74.2 HP (54.6 kW) @ 2200 RPM |
|
Maximum Torque |
335 Nm @ 1500 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse with Synchronized Shuttle Reverser, Hydraulic Clutch, Double Memory Cruise Control |
|
Clutch |
Hydraulic |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Front and Rear Final Drive (4WD), Electro-Hydraulic Disengagement Control |
|
Braking System |
Hydraulic Front/Rear Oil-Bath Disc Brakes, Independent Rear Steering Brakes, Emergency and Parking Brake Band Type on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front, Standard) |
8.25-16 |
|
Tyre Size (Rear, Standard) |
280/85 R20 (Adjustable Rims) |
|
Tyre Size (Optional) |
Transmission for 24” Rear Wheels |
|
Wheel Size |
6-Spoke Rims on 20"/24" Tyres |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent and Ground Speed, 540/540e RPM with Progressive Electro-Hydraulic Engagement, Type 100 |
|
Hydraulic System |
3 Double-Acting Distributors (1 Floating Position), 1 Oil Reflow, 2 Lubrication Oil Pumps, Independent Circuit, Hydraulic Power Lift with Draft and Position Control, Damping |
|
Rear 3-Point Hitch |
Fixed Lift Arms with Category 1 and 2 Coupling Balls, Connection Spring, Fast Lift Management (FLM), 5280 lb Capacity |
|
Steering |
Hydraulic with Through-Rod Cylinder, Adjustable Steering Column with Reset Function |
|
Electrical System |
Battery Isolation Switch, Digital Multifunctional Dashboard with Diagnostic Function |
|
Weight |
Shipping: 4664-5214 lb (Roll Bar), 5115-5291 lb (Cab) |
|
Cab Options |
Starlight (Air-Conditioned, Tapered Profile) or Protector (Super-Low-Profile, Category 1 or Category 4 Pressurized) |
|
Optional Features |
Transmission for 24” Rear Wheels |
|
Warranty |
2 Years, Extendable to 4 Years |
