Specification

Details

Tractor Model

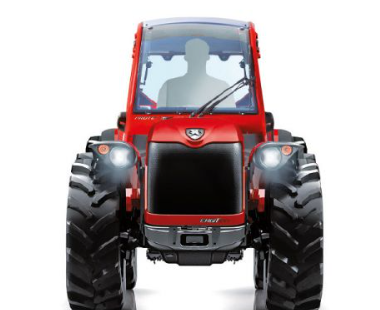

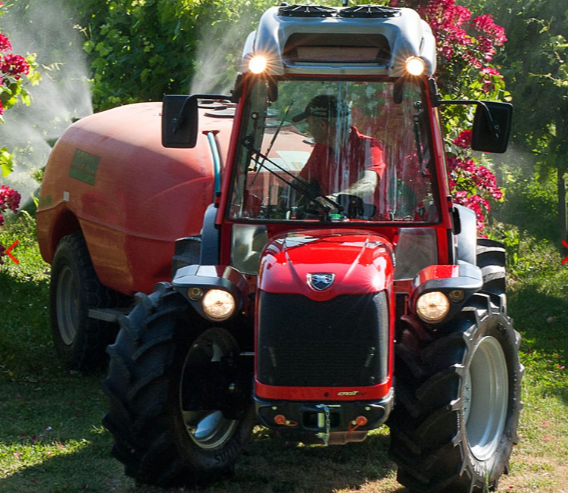

TGF 7800 S (4WD)

Vehicle Category

Utility Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Narrow Crop Rows, Sloping Grounds

Specification

Details

Engine

Yanmar, 4 Cylinders, 16 Valves, 3319 cm³, Direct Injection, Turbo, Stage 3A

Maximum Horsepower

71 HP (52 kW) @ 2500 RPM

Maximum Torque

236 Nm @ 1600 RPM

Transmission Type

Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter

Clutch

Mechanic Control, No Adjustment Required

Frame

ACTIO™ Full Chassis with Oscillation, Steering, Differentiated Wheels, 15° Longitudinal Oscillation

Differential Lock

Hydraulic Control, Front and Rear

Specification

Details

Braking System

Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission

Specification

Details

Tyre Size (Front/Rear Standard)

8.25-16 / 11.2 R20

Tyre Size (Front/Rear Optional)

250/80-16 / 320/70 R20, 300/80-15.3 / 360/70 R20, 280/70-18 / 360/70 R20, 320/70 R20 / 360/70 R24

Specification

Details

PTO Type

Rear, Independent, 540/540E RPM, Progressive Hydraulic Engagement, Synchronized with Gear Speeds

Hydraulic System

1 Double-Acting Distributor with Oil Return, 160 bar Operating Pressure

Rear 3-Point Hitch

Category 1 and 2, 2300 kg (5071 lb) Capacity, Mixed Draft and Position Control

Steering

Hydraulic with 2 Pistons

Electrical System

Multifunctional Digital Instrument, Anti-Glare Backlit Screen, Battery, Electrical Power Point, Safety Starting Device on Inverter and PTO

Weight

2130-2310 kg (4696-5093 lb, Roll-Bar); 2240-2420 kg (4938-5335 lb, StarLight Cab)

Cab Options

Optional StarLight Cab, Soundproofed, Air-Conditioned, Opening Front and Rear Windows, Roof Window

Ground Clearance

255-330 mm (10.0-13.0 in, Depending on Tyres)

Fuel Tank Capacity

60 l (15.9 gal)

Wheelbase

1190 mm (46.9 in)

Width

1330-1475 mm (52.4-58.1 in)

Warranty

2 Years, Extendable to 4 Years (EXG Maximum Protection)
