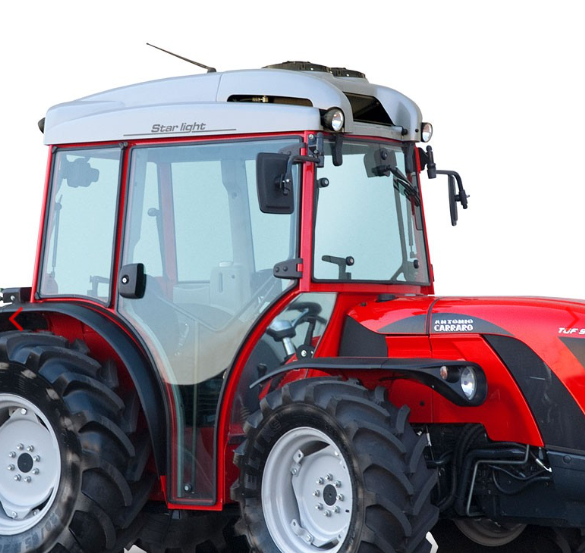

Antonio Carraro TGF 7800 – 4WD Utility Tractor for Orchards and Greenhouses
Specifications
|
Specification |
Details |
|
Tractor Model |
TGF 7800 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, 3319 cm³, Common Rail Direct Injection, Stage 5 |
|
Maximum Horsepower |
70.3 HP (51.7 kW) @ 2500 RPM |
|
Maximum Torque |
236 Nm @ 1600 RPM |
|
Transmission Type |
Synchronized, 16 Forward + 16 Reverse, Synchronized Inverter |
|
Clutch |
Mechanic Control, No Adjustment Required |
|
Frame |
ACTIO™ Full Chassis with Oscillation, Steering, Differentiated Wheels, 15° Longitudinal Oscillation |
|
Differential Lock |
Hydraulic Control, Front and Rear |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic Front and Rear Oil-Immersed Disc Brakes, Rear Steering Brakes, Band-Type Emergency and Parking Brake on Transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Standard) |
260/70 R16 / 340/65 R18 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540/540E RPM, Progressive Electro-Hydraulic Engagement, Synchronized with Gear Speeds |
|
Hydraulic System |
2-Lever Ancillary System, 160 bar Operating Pressure |
|
Rear 3-Point Hitch |
Category 1 and 2, 2300 kg (5071 lb) Capacity, Fixed Lift Arms with Coupling Balls |
|
Steering |
Hydraulic with 2 Pistons, Adjustable Steering Wheel |
|
Electrical System |
Multifunctional Digital Console, Battery, Battery Isolation Switch, Electrical Power Point, Safe Start System |
|
Weight |
2090-2310 kg (4608-5093 lb, Roll-Bar); 2200-2420 kg (4850-5335 lb, Protector 100 Cab) |
|
Cab Options |
Optional Protector 100 Cab, Super-Low Profile (1740 mm Height), Soundproofed, Air-Conditioned, Digital Air Control, Cat. 1 or Cat. 4 Certified, Suspended on Silent Blocks |
|
Ground Clearance |
185 mm (7.3 in) |
|
Fuel Tank Capacity |
60 l (15.9 gal) |
|
Wheelbase |
1225 mm (48.2 in) |
|
Width |
1380 mm (54.3 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
