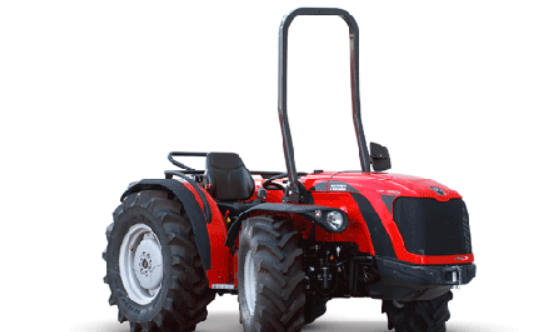

Antonio Carraro TC 6800 F TORA T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
TC 6800 F TORA T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, Yanmar Tier 4, Turbo, Intercooler, Water Cooling, Direct Common Rail Injection, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF) |
|
Power |
48.5 kW / 66 hp |
|
Transmission |
Synchronized Transmission gearbox with 16 fwd + 16 rev, and synchronized shuttle reverser, Hydraulic clutch, Permanent four-wheel drive |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four WD – Front & rear final drive |
|
Differential Locks |
Electrohydraulic Front and rear differential locks |
|
Brakes |
Hydraulic rear oil bath double-disc brakes, Emergency and parking brake band type on transmission with integrated mechanical SUPERBRAKE, Steering brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 8.25-16 (Adjustable rims), Rear: 280/85 R20 (Adjustable rims) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e Independent PTO with progressive hydraulic engagement standard, Start inhibit switch on shuttle reverser, PTO selector, seat, clutch and parking brake |
|
Hydraulic System |
Hydraulic power-steering with "Load Sensing" system - 2 DA cylinders, Rear hydraulic remotes w/1 DA valve w/float & 1 oil reflow (total 3 quick couplings), Max flow rate 9 g/min |
|
Power Lift |
Rear power lift with 3-point linkage cat.1-2, Lifting capacity 4180 lb |
|
Towing Device |
Front towing device, Rear swinging adjustable drawbar |
|
Frame |
Full chassis with oscillation system - Actio ®, Platform chassis on Silent-block |
|
Driving Comfort |
Digital multifunctional dashboard with color display, Forward foldable safety roll bar suitable for beacon light attachment, Adjustable padded seat, Safety belts, Horn, lighting equipment, electric power socket and plug, 3-way socket in the dashboard and seven way trailer socket, 2 rear-view mirrors, Adjustable Steering Column |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
50.6 in |
