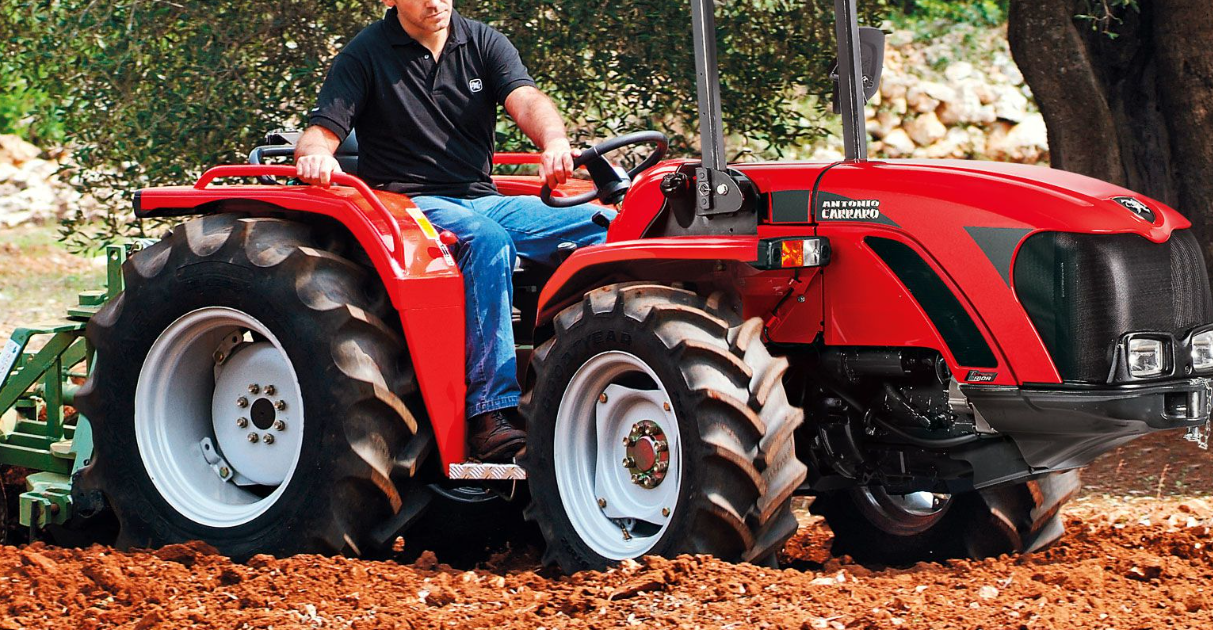

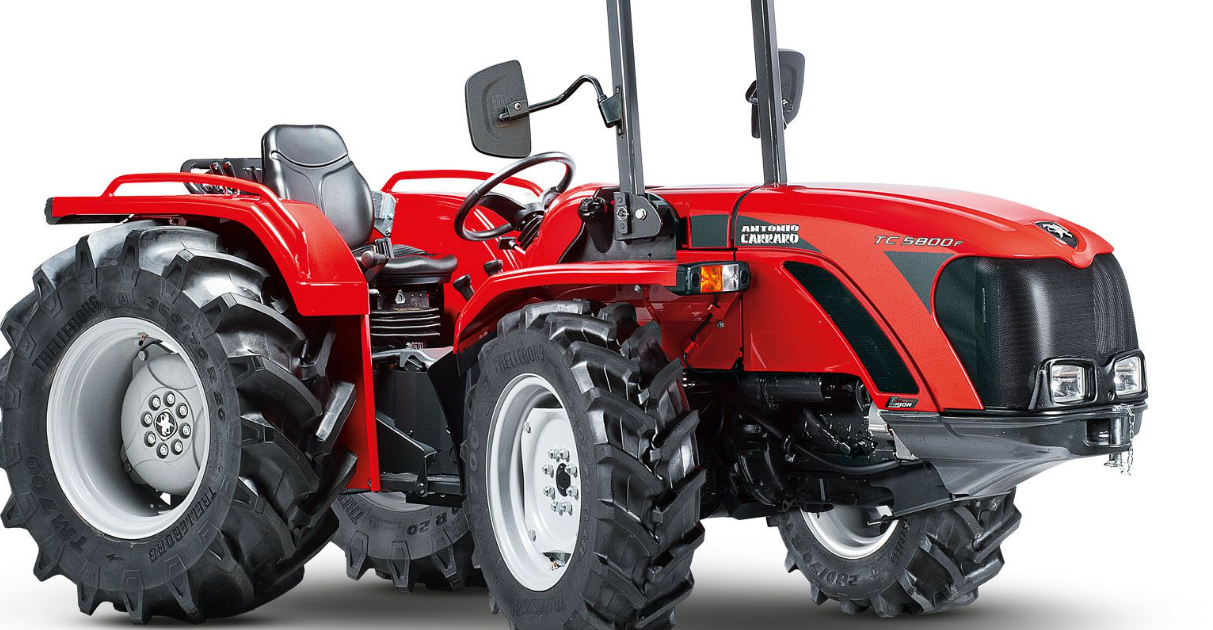

Antonio Carraro TC 5800 F – 4WD Utility Tractor for Hillside Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
TC 5800 F (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Hillsides, Mountains, Orchards, Vineyards |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar, 4 Cylinders, 16 Valves, Supercharged, Common Rail Direct Injection, Stage 5 |
|
Maximum Horsepower |
51.5 HP (37.9 kW) @ 2600 RPM |
|
Maximum Torque |
168.2 Nm @ 1690 RPM |
|
Transmission Type |
Synchronized, 12 Forward + 12 Reverse, Shuttle |
|
Clutch |
Mechanic Control |
|
Frame |
ACTIO™ Integral Oscillating Frame, Steering, Differentiated Wheels |
|
Differential Lock |
Mechanically-Controlled, Front and Rear |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Rear Oil-Immersed Disc Brakes with Hydraulic Control, Transmission Brake Band for Emergency and Parking |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Standard) |
8.25-16 / 280/85 R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent, 540 RPM, Mechanical Control, Synchronized Groundspeed, Optional 540/1000 RPM |
|
Hydraulic System |
Optional Single- and Double-Acting Remote Valves |
|
Rear 3-Point Hitch |
Category 1, 2200 kg (4850 lb) Capacity, Oscillating Lift Arms, Lateral Stabilizer Bars, Optional Position and Draft Control |
|
Steering |
Hydraulic with 2 Pistons, Optional Tilt-Adjustable Steering Column |
|
Electrical System |
Central Control Panel, Digital Speedometer, Battery Disconnect, 3- and 7-Pole Electrical Outlet Sockets, Lights, Direction Indicators, Horn, Provision for Flashing Light |
|
Weight |
1650 kg (3638 lb, Roll-Bar) |
|
Cab Options |
None |
|
Ground Clearance |
265 mm (10.4 in) |
|
Fuel Tank Capacity |
38.5 l (10.2 gal) |
|
Wheelbase |
1465 mm (57.7 in) |
|
Width |
1325 mm (52.2 in) |
|
Warranty |
2 Years, Extendable to 4 Years (EXG Maximum Protection) |
