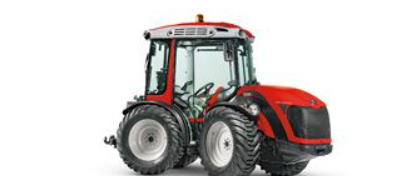

Antonio Carraro SRX 8900 R T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
SRX 8900 R T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Narrow Crop Rows, Steep Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 3769 cm³, Kubota Tier 4 Final, Turbo, Water Cooling, Dry Air Filter with Internal Intake, Diesel Particulate Filter (DPF) |
|
Power |
54.6 kW / 74.2 hp |
|
Torque |
335 Nm @ 1500 RPM |
|
Transmission |
Synchronized transmission gearbox with 32 speeds, 16 fwd + 16 rev, and synchronized shuttle reverser, Hydraulic clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Four equal wheel drive – Front & rear final drive 45º, Electro-hydraulic disengagement control for front drive wheels |
|
Differential Lock |
Electro-hydraulic front/rear or only rear differential lock |
|
Brakes |
Hydraulic front/rear oil bath disc brakes, Emergency and parking brake band type on transmission |
Wheels & Tyres
|
Specification |
Details |
|
Tires |
Front: 9.5 R20 (adjustable rims), Rear: 9.5 R20 (adjustable rims), 6-spoke rims on 20"/24" tires |
|
Minimum External Width |
41.7 in (tyres) |
Components & Features
|
Specification |
Details |
|
PTO |
540/540e independent and ground speed with progressive electro-hydraulic engagement, Start inhibit switch on shuttle reverser, PTO selector, seat and clutch |
|
Hydraulic System |
Auxiliary rear hydraulic remotes with 3 distributors (2 double acting and 1 single acting), 1 oil reflow, Hydraulic power lift with 3-point + damping |
|
Lifting capacity |
5280 lbs |
|
3-point linkage |
adjustable with Cat. 2 quick coupling, width adjustable |
|
Towing Device |
Front towing device, Swinging draw bar |
|
Frame |
Platform chassis on Silent-block, Ground drive with suspended pedal |
|
Driving Comfort |
2 cylinders hydraulic steering wheel, Digital multifunctional dashboard with display and diagnostic function, Roll-bar version suitable for beacon light attachment (standard), Reversible driving position, Forward foldable front safety roll bar (r.o.p.s.) with facilitator, Adjustable padded ergonomic seat & retractable seat belts, Adjustable steering wheel, Rear-view mirror, Battery isolation switch |
|
Weight with roll bar |
4729/5170 lbs |
|
Weight with cab |
5148/5589 lbs |
|
Rear working light |
standard |
|
Warranty |
2 years warranty; with the opportunity to extend the guarantee up to 4 years |
